Panasonic NN-CS596S Service Manual

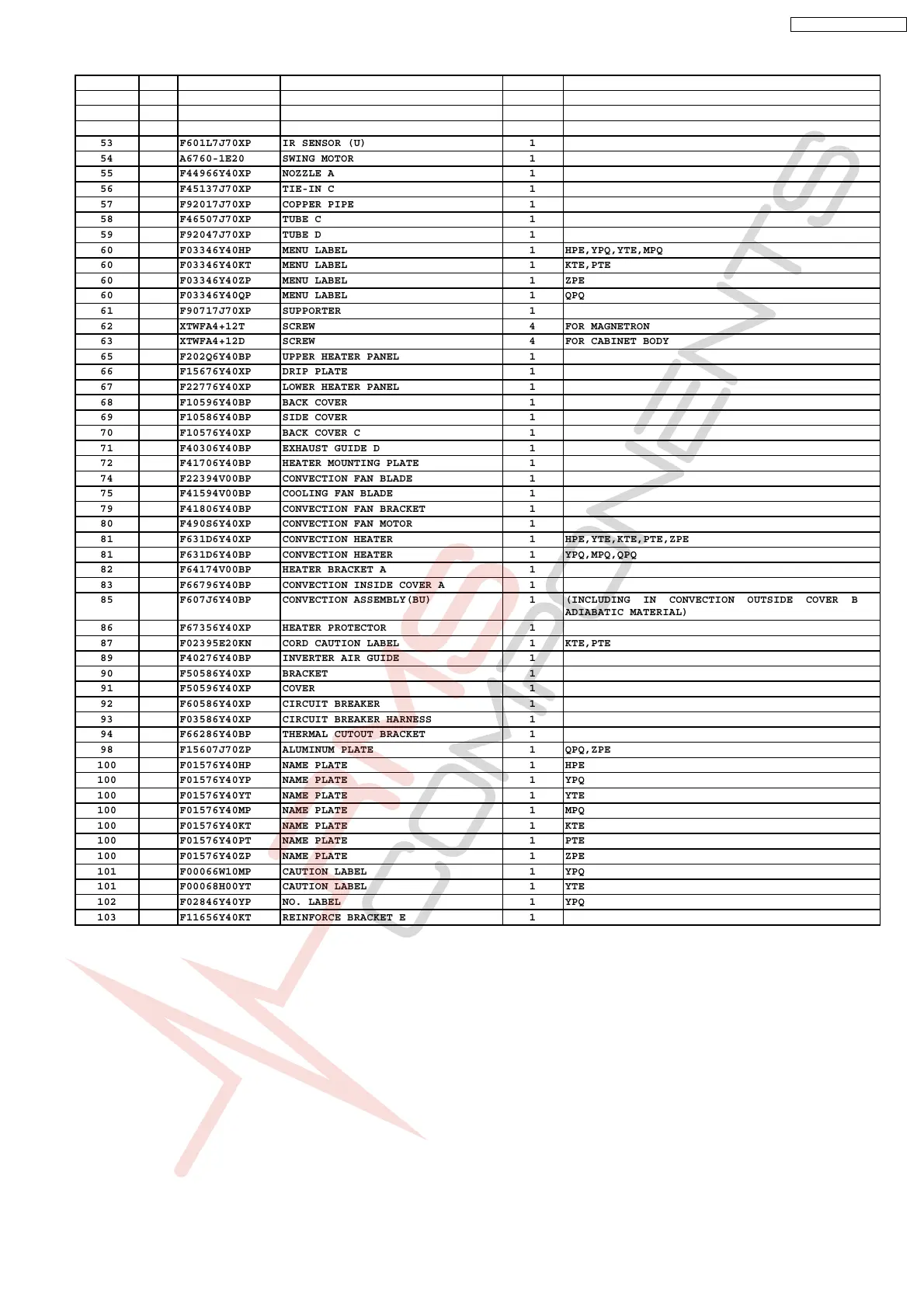

Ref. No. Part No. Part Name & Description Pcs/Set Remarks
50 F22367J70XPG RIGHT HEATER PANEL 1
51 F300B7J70XP LEFT HINGE (U) 1
52 F300U7J70XP RIGHT HINGE (U) 1
53 F601L7J70XP IR SENSOR (U) 1
54 A6760-1E20 SWING MOTOR 1
55 F44966Y40XP NOZZLE A 1
56 F45137J70XP TIE-IN C 1
57 F92017J70XP COPPER PIPE 1
58 F46507J70XP TUBE C 1
59 F92047J70XP TUBE D 1
60 F03346Y40HP MENU LABEL 1 HPE,YPQ,YTE,MPQ
60 F03346Y40KT MENU LABEL 1 KTE,PTE
60 F03346Y40ZP MENU LABEL 1 ZPE
60 F03346Y40QP MENU LABEL 1 QPQ
61 F90717J70XP SUPPORTER 1
62 XTWFA4+12T SCREW 4 FOR MAGNETRON
63 XTWFA4+12D SCREW 4 FOR CABINET BODY
65 F202Q6Y40BP UPPER HEATER PANEL 1
66 F15676Y40XP DRIP PLATE 1
67 F22776Y40XP LOWER HEATER PANEL 1
68 F10596Y40BP BACK COVER 1
69 F10586Y40BP SIDE COVER 1
70 F10576Y40XP BACK COVER C 1
71 F40306Y40BP EXHAUST GUIDE D 1
72 F41706Y40BP HEATER MOUNTING PLATE 1
74 F22394V00BP CONVECTION FAN BLADE 1
75 F41594V00BP COOLING FAN BLADE 1
79 F41806Y40BP CONVECTION FAN BRACKET 1
80 F490S6Y40XP CONVECTION FAN MOTOR 1
81 F631D6Y40XP CONVECTION HEATER 1 HPE,YTE,KTE,PTE,ZPE
81 F631D6Y40BP CONVECTION HEATER 1 YPQ,MPQ,QPQ
82 F64174V00BP HEATER BRACKET A 1
83 F66796Y40BP CONVECTION INSIDE COVER A 1
85 F607J6Y40BP CONVECTION ASSEMBLY(BU) 1 (INCLUDING IN CONVECTION OUTSIDE COVER B &
ADIABATIC MATERIAL)
86 F67356Y40XP HEATER PROTECTOR 1
87 F02395E20KN CORD CAUTION LABEL 1 KTE,PTE
89 F40276Y40BP INVERTER AIR GUIDE 1
90 F50586Y40XP BRACKET 1
91 F50596Y40XP COVER 1
92 F60586Y40XP CIRCUIT BREAKER 1
93 F03586Y40XP CIRCUIT BREAKER HARNESS 1
94 F66286Y40BP THERMAL CUTOUT BRACKET 1
98 F15607J70ZP ALUMINUM PLATE 1 QPQ,ZPE
100 F01576Y40HP NAME PLATE 1 HPE
100 F01576Y40YP NAME PLATE 1 YPQ
100 F01576Y40YT NAME PLATE 1 YTE
100 F01576Y40MP NAME PLATE 1 MPQ
100 F01576Y40KT NAME PLATE 1 KTE
100 F01576Y40PT NAME PLATE 1 PTE
100 F01576Y40ZP NAME PLATE 1 ZPE
101 F00066W10MP CAUTION LABEL 1 YPQ
101 F00068H00YT CAUTION LABEL 1 YTE
102 F02846Y40YP NO. LABEL 1 YPQ
103 F11656Y40KT REINFORCE BRACKET E 1
31
NN-CS596A / NN-CS596S

Panasonic NN-CS596S Specifications

Power

rated voltage	230-240 V, 50 Hz
operating frequency	2, 450 MHz
input power	Max 2800 W
microwave power	1100 W
grill power	1400 W
convection power	1450 W
microwave & steam power	2050 W
output power microwave	1000 W (IEC-60705)
output power grill	1300 W
output power convection	1400 W
output power steam	1000 W

Operating Environment

noise	56 dB

Weight and Dimensions

outer dimensions width	523 mm
outer dimensions depth	494 mm
outer dimensions height	320 mm
oven cavity dimensions width	354 mm
oven cavity dimensions depth	343 mm
oven cavity dimensions height	205 mm
weight with internal accessories	18.5 kg
