Panasonic NN-CS596S Service Manual

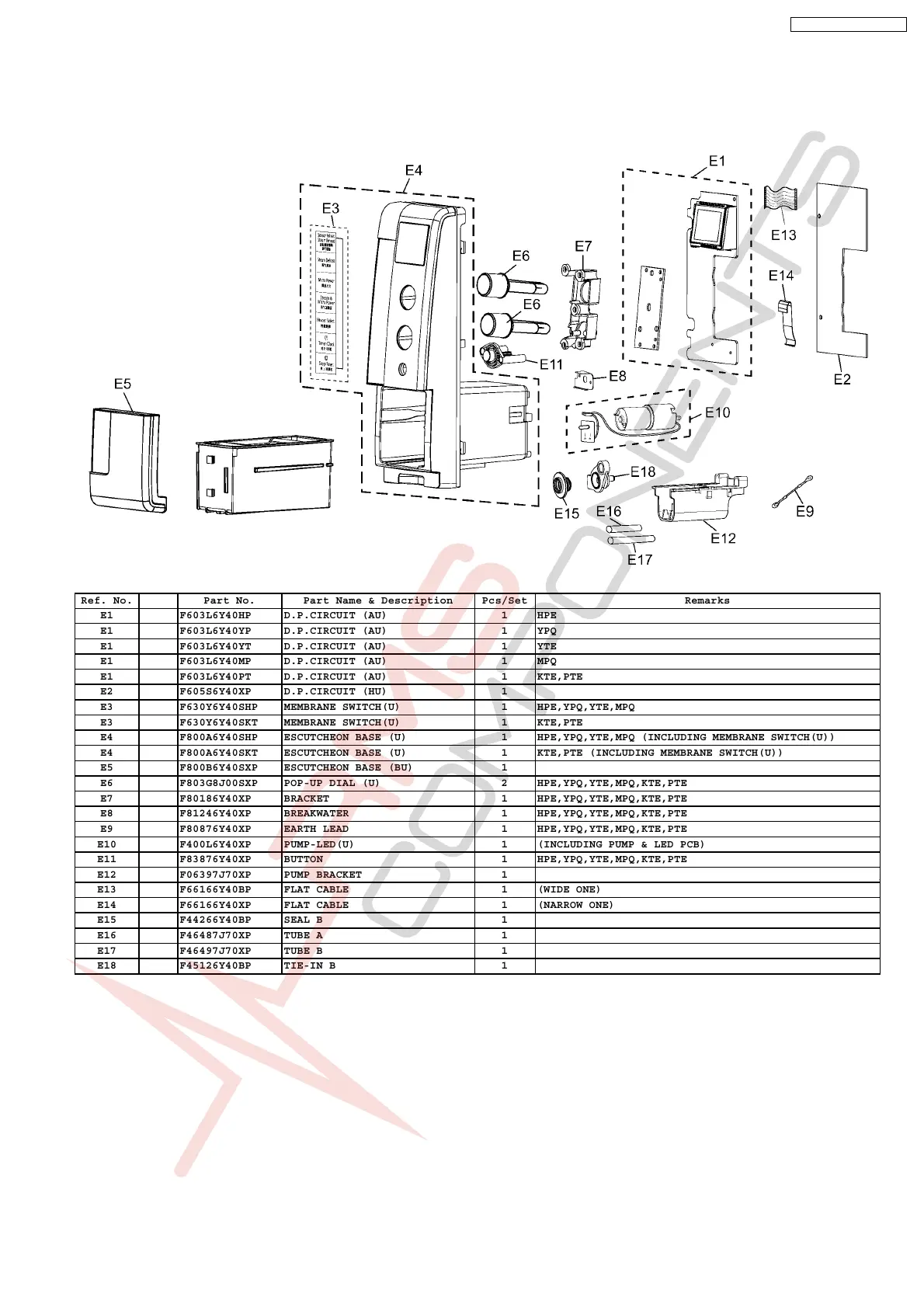

8.4. ESCUTCHEON BASE ASSEMBLY
8.4.1. NN-CS596A HPE/YPQ/MPQ/YTE/KTE/PTE
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E1 F603L6Y40HP D.P.CIRCUIT (AU) 1 HPE
E1 F603L6Y40YP D.P.CIRCUIT (AU) 1 YPQ
E1 F603L6Y40YT D.P.CIRCUIT (AU) 1 YTE
E1 F603L6Y40MP D.P.CIRCUIT (AU) 1 MPQ
E1 F603L6Y40PT D.P.CIRCUIT (AU) 1 KTE,PTE
E2 F605S6Y40XP D.P.CIRCUIT (HU) 1
E3 F630Y6Y40SHP MEMBRANE SWITCH(U) 1 HPE,YPQ,YTE,MPQ
E3 F630Y6Y40SKT MEMBRANE SWITCH(U) 1 KTE,PTE
E4 F800A6Y40SHP ESCUTCHEON BASE (U) 1 HPE,YPQ,YTE,MPQ (INCLUDING MEMBRANE SWITCH(U))
E4 F800A6Y40SKT ESCUTCHEON BASE (U) 1 KTE,PTE (INCLUDING MEMBRANE SWITCH(U))
E5 F800B6Y40SXP ESCUTCHEON BASE (BU) 1
E6 F803G8J00SXP POP-UP DIAL (U) 2 HPE,YPQ,YTE,MPQ,KTE,PTE
E7 F80186Y40XP BRACKET 1 HPE,YPQ,YTE,MPQ,KTE,PTE
E8 F81246Y40XP BREAKWATER 1 HPE,YPQ,YTE,MPQ,KTE,PTE
E9 F80876Y40XP EARTH LEAD 1 HPE,YPQ,YTE,MPQ,KTE,PTE
E10 F400L6Y40XP PUMP-LED(U) 1 (INCLUDING PUMP & LED PCB)
E11 F83876Y40XP BUTTON 1 HPE,YPQ,YTE,MPQ,KTE,PTE
E12 F06397J70XP PUMP BRACKET 1
E13 F66166Y40BP FLAT CABLE 1 (WIDE ONE)
E14 F66166Y40XP FLAT CABLE 1 (NARROW ONE)
E15 F44266Y40BP SEAL B 1
E16 F46487J70XP TUBE A 1
E17 F46497J70XP TUBE B 1
E18 F45126Y40BP TIE-IN B 1
33
NN-CS596A / NN-CS596S

Panasonic NN-CS596S Specifications

Power

rated voltage	230-240 V, 50 Hz
operating frequency	2, 450 MHz
input power	Max 2800 W
microwave power	1100 W
grill power	1400 W
convection power	1450 W
microwave & steam power	2050 W
output power microwave	1000 W (IEC-60705)
output power grill	1300 W
output power convection	1400 W
output power steam	1000 W

Operating Environment

noise	56 dB

Weight and Dimensions

outer dimensions width	523 mm
outer dimensions depth	494 mm
outer dimensions height	320 mm
oven cavity dimensions width	354 mm
oven cavity dimensions depth	343 mm
oven cavity dimensions height	205 mm
weight with internal accessories	18.5 kg
