Panasonic NN-CS596S Service Manual

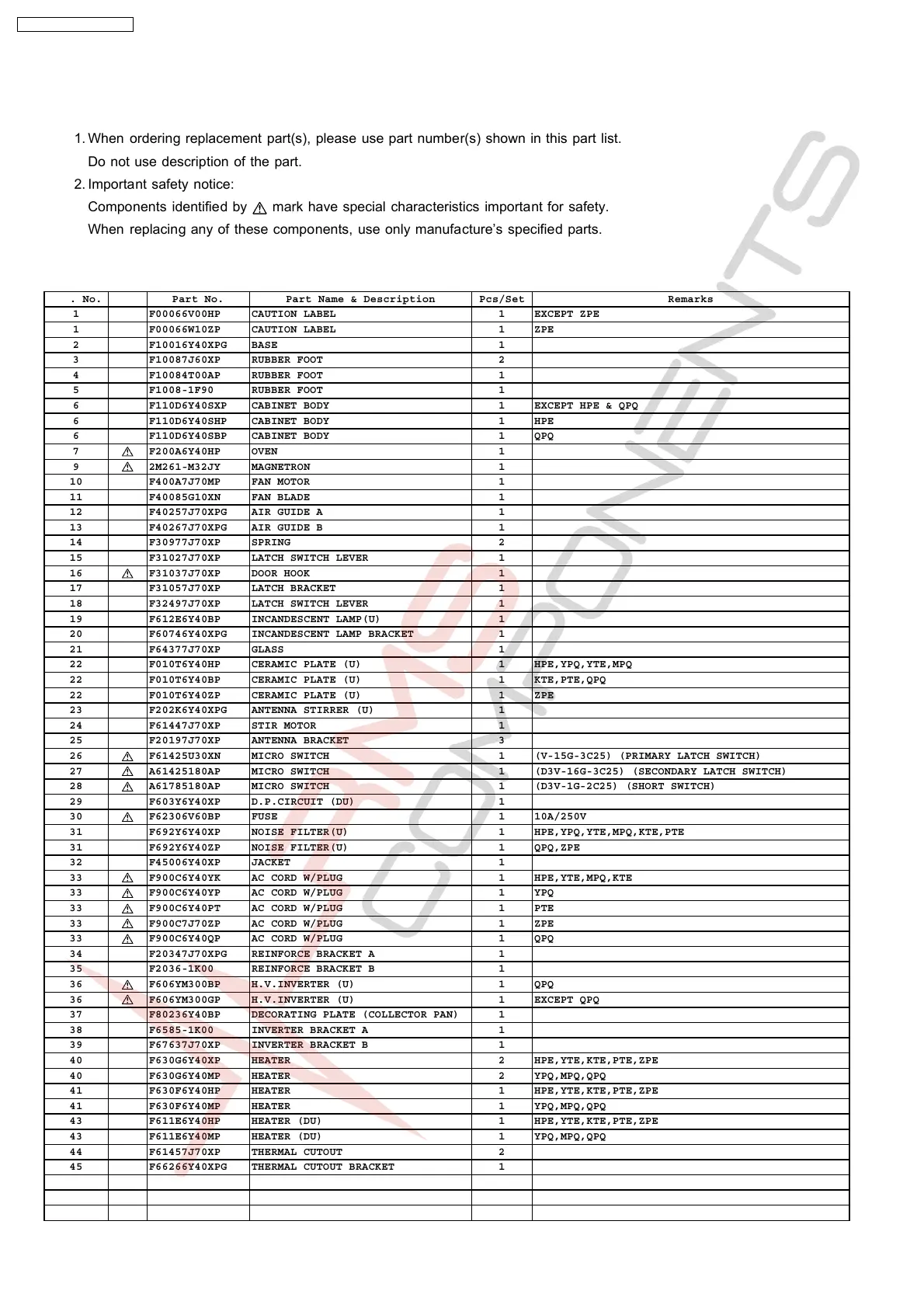

8.2. PARTS LIST
NOTE:
1. When ordering replacement part(s), please use part number(s) shown in this part list.
Do not use description of the part.
2. Important safety notice:
Components identified by
mark have special characteristics important for safety.
When replacing any of these components, use only manufacture’s specified parts.
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
1 F00066V00HP CAUTION LABEL 1 EXCEPT ZPE
1 F00066W10ZP CAUTION LABEL 1 ZPE
2 F10016Y40XPG BASE 1
3 F10087J60XP RUBBER FOOT 2
4 F10084T00AP RUBBER FOOT 1
5 F1008-1F90 RUBBER FOOT 1
6 F110D6Y40SXP CABINET BODY 1 EXCEPT HPE & QPQ
6 F110D6Y40SHP CABINET BODY 1 HPE
6 F110D6Y40SBP CABINET BODY 1 QPQ
7 F200A6Y40HP OVEN 1
9 2M261-M32JY MAGNETRON 1
10 F400A7J70MP FAN MOTOR 1
11 F40085G10XN FAN BLADE 1
12 F40257J70XPG AIR GUIDE A 1
13 F40267J70XPG AIR GUIDE B 1
14 F30977J70XP SPRING 2
15 F31027J70XP LATCH SWITCH LEVER 1
16 F31037J70XP DOOR HOOK 1
17 F31057J70XP LATCH BRACKET 1
18 F32497J70XP LATCH SWITCH LEVER 1
19 F612E6Y40BP INCANDESCENT LAMP(U) 1
20 F60746Y40XPG INCANDESCENT LAMP BRACKET 1
21 F64377J70XP GLASS 1
22 F010T6Y40HP CERAMIC PLATE (U) 1 HPE,YPQ,YTE,MPQ
22 F010T6Y40BP CERAMIC PLATE (U) 1 KTE,PTE,QPQ
22 F010T6Y40ZP CERAMIC PLATE (U) 1 ZPE
23 F202K6Y40XPG ANTENNA STIRRER (U) 1
24 F61447J70XP STIR MOTOR 1
25 F20197J70XP ANTENNA BRACKET 3
26 F61425U30XN MICRO SWITCH 1 (V-15G-3C25) (PRIMARY LATCH SWITCH)
27 A61425180AP MICRO SWITCH 1 (D3V-16G-3C25) (SECONDARY LATCH SWITCH)
28 A61785180AP MICRO SWITCH 1 (D3V-1G-2C25) (SHORT SWITCH)
29 F603Y6Y40XP D.P.CIRCUIT (DU) 1
30 F62306V60BP FUSE 1 10A/250V
31 F692Y6Y40XP NOISE FILTER(U) 1 HPE,YPQ,YTE,MPQ,KTE,PTE
31 F692Y6Y40ZP NOISE FILTER(U) 1 QPQ,ZPE
32 F45006Y40XP JACKET 1
33 F900C6Y40YK AC CORD W/PLUG 1 HPE,YTE,MPQ,KTE
33 F900C6Y40YP AC CORD W/PLUG 1 YPQ
33 F900C6Y40PT AC CORD W/PLUG 1 PTE
33 F900C7J70ZP AC CORD W/PLUG 1 ZPE
33 F900C6Y40QP AC CORD W/PLUG 1 QPQ
34 F20347J70XPG REINFORCE BRACKET A 1
35 F2036-1K00 REINFORCE BRACKET B 1
36 F606YM300BP H.V.INVERTER (U) 1 QPQ
36 F606YM300GP H.V.INVERTER (U) 1 EXCEPT QPQ
37 F80236Y40BP DECORATING PLATE (COLLECTOR PAN) 1
38 F6585-1K00 INVERTER BRACKET A 1
39 F67637J70XP INVERTER BRACKET B 1
40 F630G6Y40XP HEATER 2 HPE,YTE,KTE,PTE,ZPE
40 F630G6Y40MP HEATER 2 YPQ,MPQ,QPQ
41 F630F6Y40HP HEATER 1 HPE,YTE,KTE,PTE,ZPE
41 F630F6Y40MP HEATER 1 YPQ,MPQ,QPQ
43 F611E6Y40HP HEATER (DU) 1 HPE,YTE,KTE,PTE,ZPE
43 F611E6Y40MP HEATER (DU) 1 YPQ,MPQ,QPQ
44 F61457J70XP THERMAL CUTOUT 2
45 F66266Y40XPG THERMAL CUTOUT BRACKET 1
48 F01506W50XP NO TOUCHING LABEL 1 EXCPTE HPE
48 F01508G60HP NO TOUCHING LABEL 1 HPE
49 F22377J70XPG LEFT HEATER PANEL 1
30
NN-CS596A / NN-CS596S

Panasonic NN-CS596S Specifications

Power

rated voltage	230-240 V, 50 Hz
operating frequency	2, 450 MHz
input power	Max 2800 W
microwave power	1100 W
grill power	1400 W
convection power	1450 W
microwave & steam power	2050 W
output power microwave	1000 W (IEC-60705)
output power grill	1300 W
output power convection	1400 W
output power steam	1000 W

Operating Environment

noise	56 dB

Weight and Dimensions

outer dimensions width	523 mm
outer dimensions depth	494 mm
outer dimensions height	320 mm
oven cavity dimensions width	354 mm
oven cavity dimensions depth	343 mm
oven cavity dimensions height	205 mm
weight with internal accessories	18.5 kg
