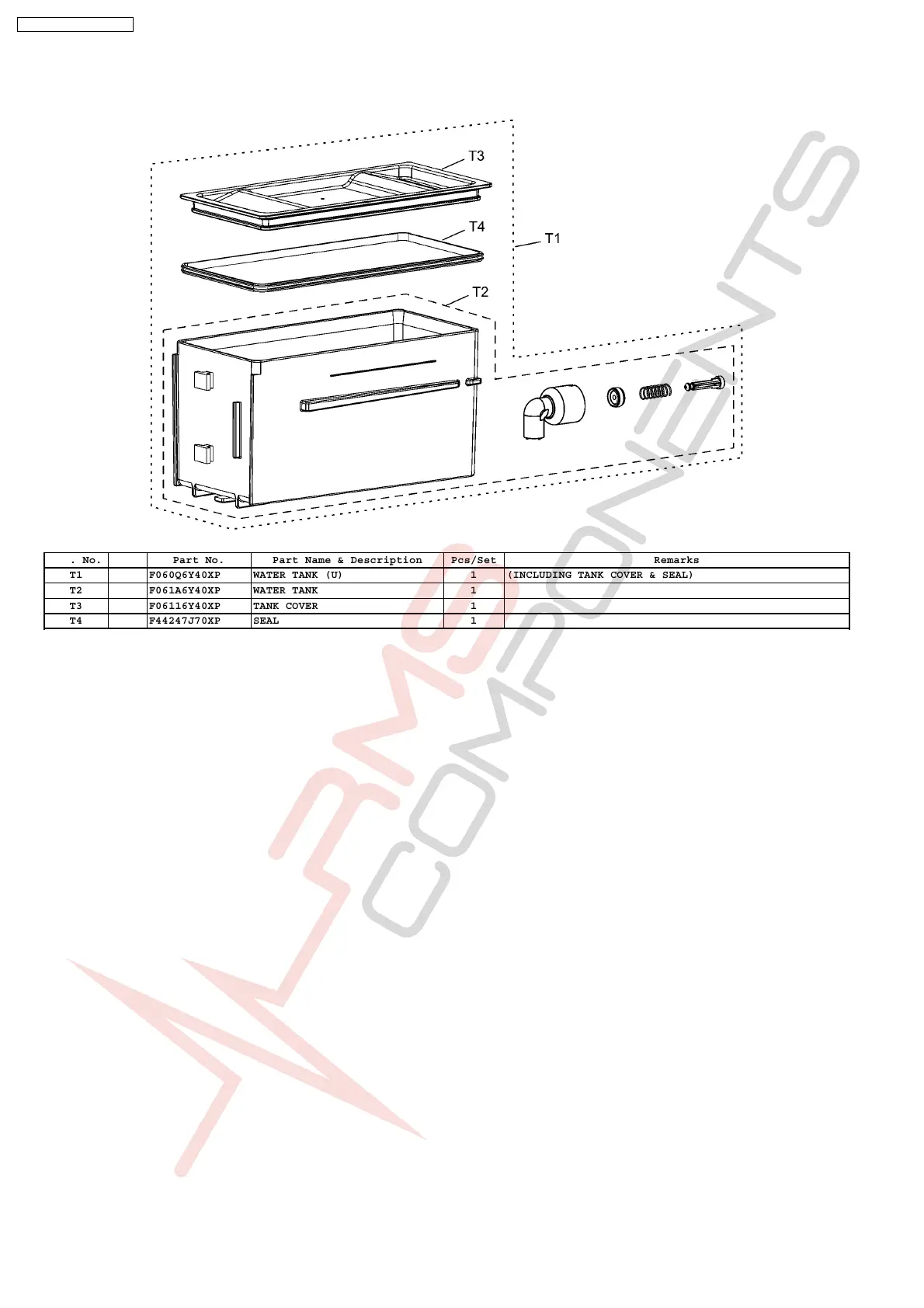

8.3. WATER TANK ASSEMBLY
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
T1 F060Q6Y40XP WATER TANK (U) 1 (INCLUDING TANK COVER & SEAL)
T2 F061A6Y40XP WATER TANK 1
T3 F06116Y40XP TANK COVER 1
T4 F44247J70XP SEAL 1
32
NN-CS596A / NN-CS596S

Panasonic NN-CS596S Specifications

Power

rated voltage	230-240 V, 50 Hz
operating frequency	2, 450 MHz
input power	Max 2800 W
microwave power	1100 W
grill power	1400 W
convection power	1450 W
microwave & steam power	2050 W
output power microwave	1000 W (IEC-60705)
output power grill	1300 W
output power convection	1400 W
output power steam	1000 W

Operating Environment

noise	56 dB

Weight and Dimensions

outer dimensions width	523 mm
outer dimensions depth	494 mm
outer dimensions height	320 mm
oven cavity dimensions width	354 mm
oven cavity dimensions depth	343 mm
oven cavity dimensions height	205 mm
weight with internal accessories	18.5 kg
