Panasonic NN-CS596S Service Manual

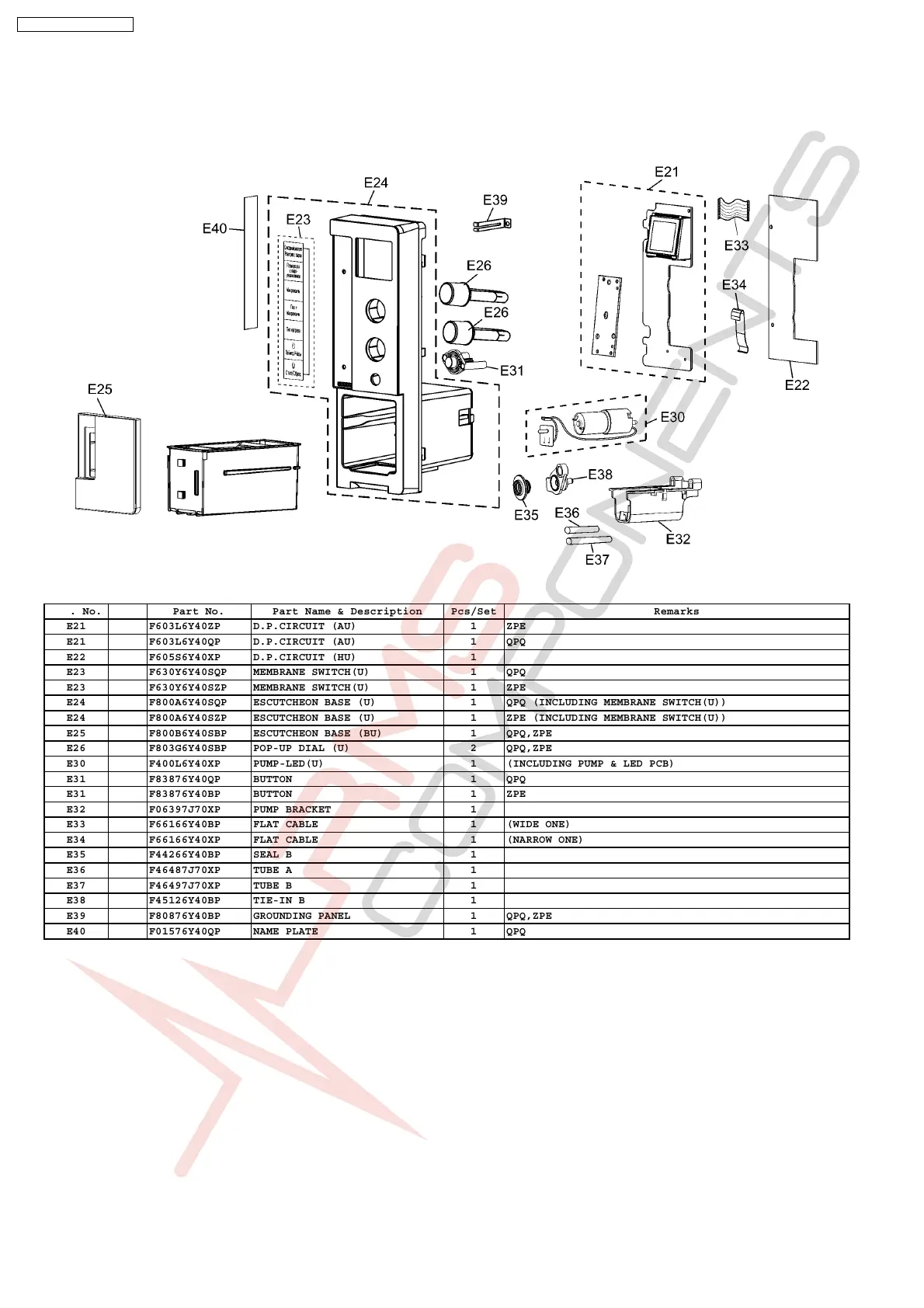

8.5. ESCUTCHEON BASE ASSEMBLY
8.5.1. NN-CS596S QPQ/ZPE
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E21 F603L6Y40ZP D.P.CIRCUIT (AU) 1 ZPE
E21 F603L6Y40QP D.P.CIRCUIT (AU) 1 QPQ
E22 F605S6Y40XP D.P.CIRCUIT (HU) 1
E23 F630Y6Y40SQP MEMBRANE SWITCH(U) 1 QPQ
E23 F630Y6Y40SZP MEMBRANE SWITCH(U) 1 ZPE
E24 F800A6Y40SQP ESCUTCHEON BASE (U) 1 QPQ (INCLUDING MEMBRANE SWITCH(U))
E24 F800A6Y40SZP ESCUTCHEON BASE (U) 1 ZPE (INCLUDING MEMBRANE SWITCH(U))
E25 F800B6Y40SBP ESCUTCHEON BASE (BU) 1 QPQ,ZPE
E26 F803G6Y40SBP POP-UP DIAL (U) 2 QPQ,ZPE
E30 F400L6Y40XP PUMP-LED(U) 1 (INCLUDING PUMP & LED PCB)
E31 F83876Y40QP BUTTON 1 QPQ
E31 F83876Y40BP BUTTON 1 ZPE
E32 F06397J70XP PUMP BRACKET 1
E33 F66166Y40BP FLAT CABLE 1 (WIDE ONE)
E34 F66166Y40XP FLAT CABLE 1 (NARROW ONE)
E35 F44266Y40BP SEAL B 1
E36 F46487J70XP TUBE A 1
E37 F46497J70XP TUBE B 1
E38 F45126Y40BP TIE-IN B 1
E39 F80876Y40BP GROUNDING PANEL 1 QPQ,ZPE
E40 F01576Y40QP NAME PLATE 1 QPQ
34
NN-CS596A / NN-CS596S

Panasonic NN-CS596S Specifications

Power

rated voltage	230-240 V, 50 Hz
operating frequency	2, 450 MHz
input power	Max 2800 W
microwave power	1100 W
grill power	1400 W
convection power	1450 W
microwave & steam power	2050 W
output power microwave	1000 W (IEC-60705)
output power grill	1300 W
output power convection	1400 W
output power steam	1000 W

Operating Environment

noise	56 dB

Weight and Dimensions

outer dimensions width	523 mm
outer dimensions depth	494 mm
outer dimensions height	320 mm
oven cavity dimensions width	354 mm
oven cavity dimensions depth	343 mm
oven cavity dimensions height	205 mm
weight with internal accessories	18.5 kg
