Panasonic NN-SD372 - H.V. Inverter Power Supply Removal

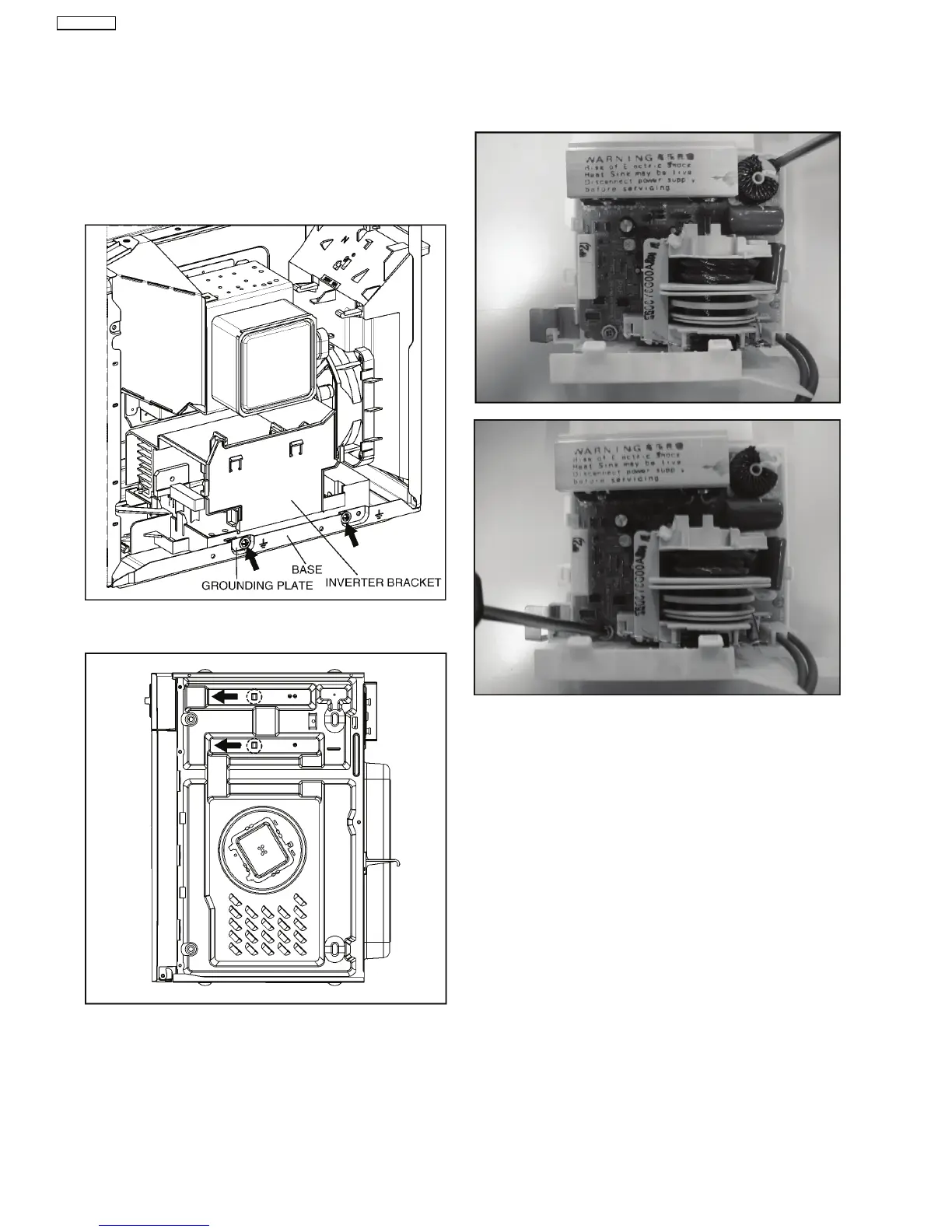

6.7. H.V. Inverter Power Supply
1. Disconnect 2 high voltage lead wires from magnetron
filament terminals.
2. Unplug connector CN701 & CN702 from H.V. Inverter
board.
3. Remove 1 screw holding gro unding plate on the base.
4. Remove 1 screw holding inverter bracket on the base.
5. Slide 2 locking tabs of inverter bracket at the bottom of the
base in direction of arrows.
6. Remove 2 screws holding H.V. inverter on the inverter
bracket.
14
NN-SD372S
