Panasonic NR-BY552XS User Manual

- 10 -

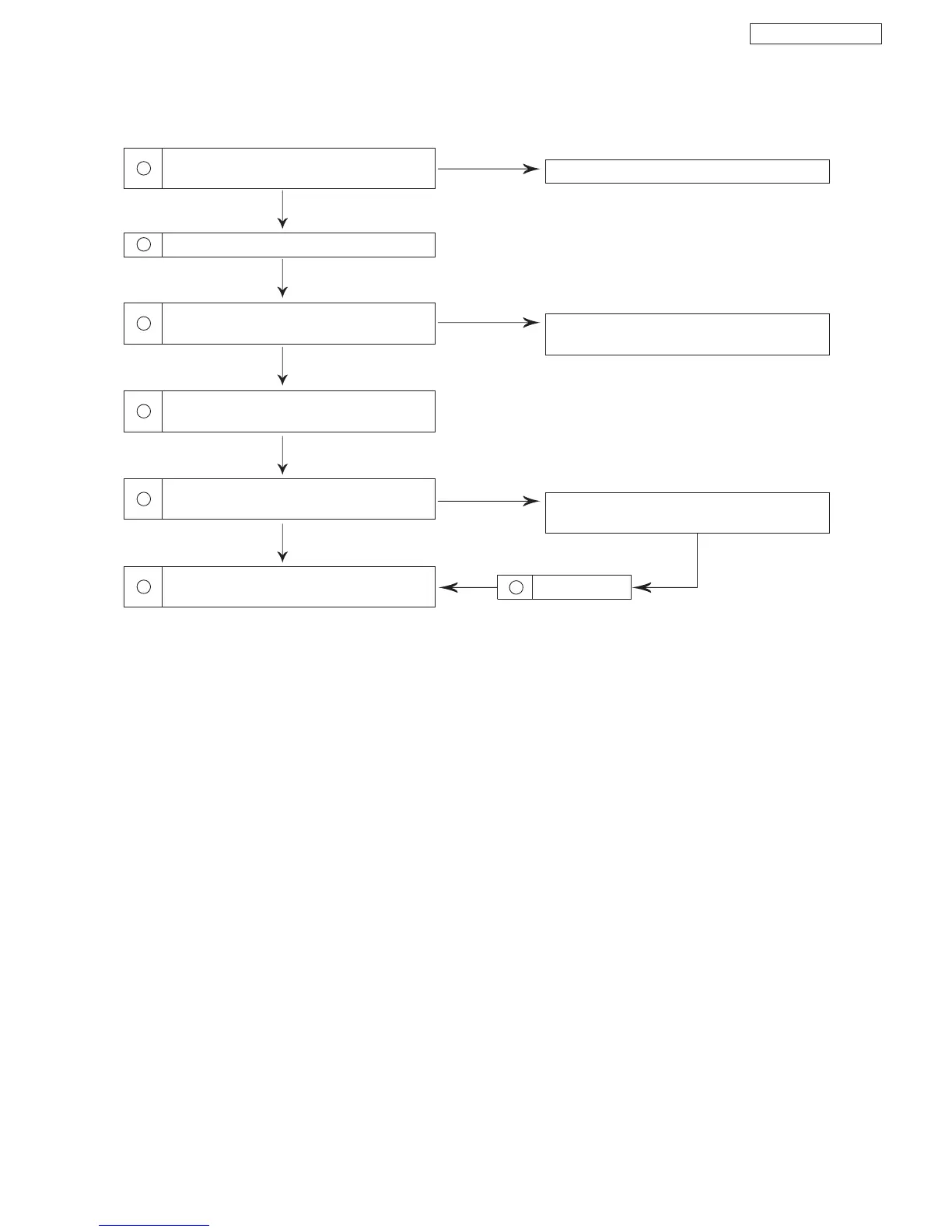

5.3 Protection for power supply droping
NR-BY552 / NR-BY602
YES
After 1 hour.
NO
YES
YES
7
IC cancels to stop compressor.
Normal operating?
6
After restarting, does “Stop compressor”
occure 10 times within 2 min?
5
IC cancels to stop compressor.
Normal operating?
4
After 10 min., does PCB check power supply
voltage if it is > 180V AC?
3
IC orders to stop compressor for 10 min.
2
Does power supply voltage drop as condition
> 0.1 sec. and < 160V AC?
1
• IC continues to stop compressor until 1 hour.
• IC indicates Self Diagnosing sign.
NO
• IC continues to stop compressor until 1 hour.
• IC indicates Self Diagnosing sign.
NO
• Normal operating.

Panasonic NR-BY552XS Specifications

General

Lamp type	LED
Egg balcony	Yes
No Frost (fridge)	-
Fridge net capacity	365 L
Fridge door balconies	5
Fridge gross capacity	398 L
Fridge temperature range	-1 - 10 °C
Number of vegetable drawers	1
Fridge number of shelves/baskets	4
Door hinge	Right
Control type	Lever
Door assembly	Door-on-door
Product color	Stainless steel
Shelves material	Tempered glass
Appliance placement	Freestanding
Refrigerating medium	R600a
Power source	Electric
Connected load	135 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	- kWh
Freezer position	Bottom-placed
Freezing capacity	- kg/24h
Freezer net capacity	130 L
Freezer gross capacity	153 L
Freezer temperature (min)	-13 °C
Freezer number of shelves/baskets	2
Storage time during power failure	- h
Noise level	- dB
Total net capacity	546 L
Total gross capacity	551 L

Weight and Dimensions

Depth	745 mm
Width	775 mm
Height	1714 mm
Weight	80000 g
