- 7 -

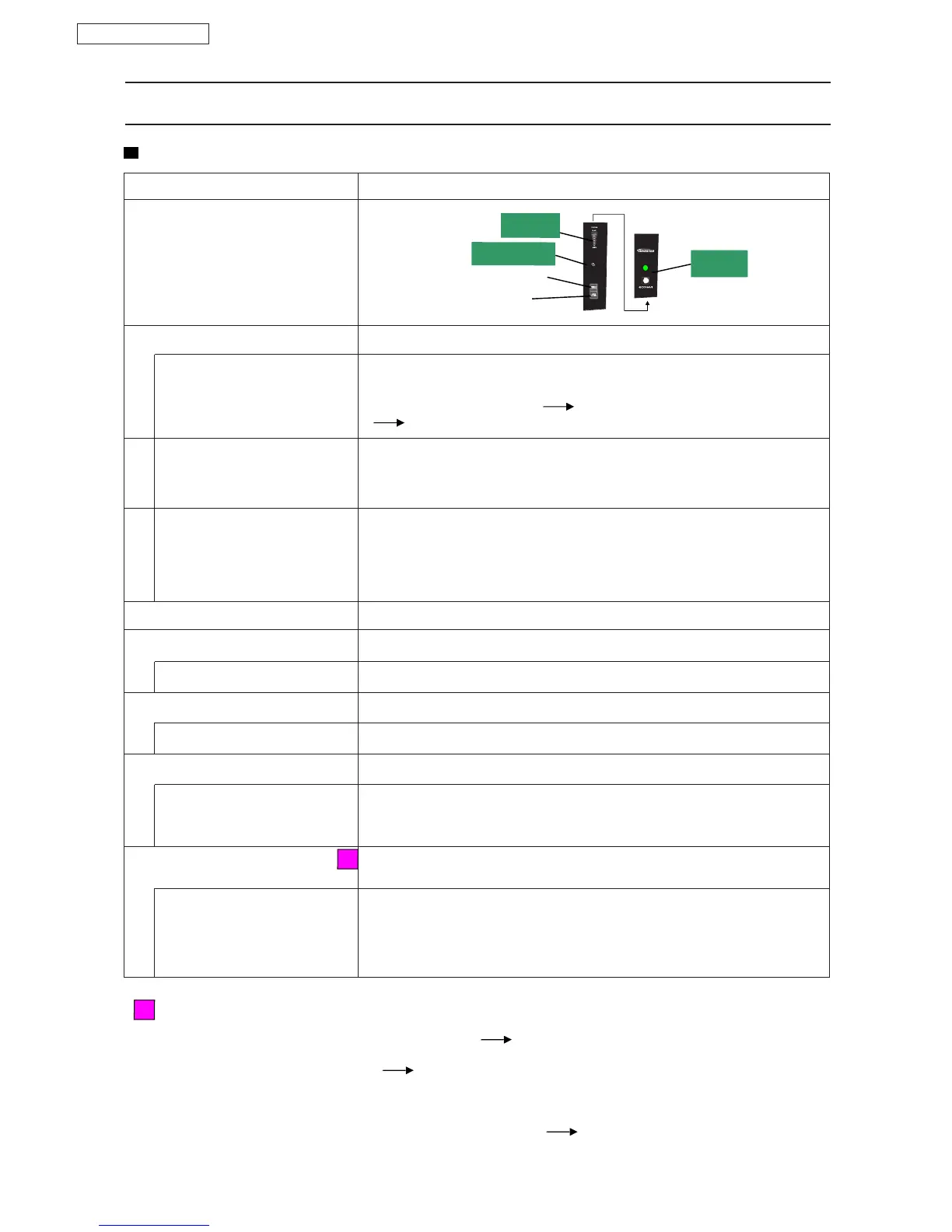

4. DISPLAY SPECIFICATION
NR-BY602
DISPLAY
QUICK FREEZING
BUTTON
FREEZING CONTROL
BUTTON
IN-PROCESS INSPECTION
MANUAL DEFROST Hold down QUICK FREEZING BUTTON for over a sec.
Operate the following controls within 3 sec., within 30 sec., after power-on
while PC and FC door are open.
QUICK FREEZING BUTTON FREEZER CONTROL BUTTON
QUICK FREEZING BUTTON
START
CONDITION
AUTOGNOSIS
Indicate AUTOGNOSIS in which case abnormal condition.
During in-process inspection.
NOISE MODE For 45 sec., of the start of IN-PROCESS INSPECTION
JUDGEMENT
① Hold down QUICK FREEZING BUTTON for over a second.
(Manual defrost)
② After 4 hours (Defrost start)
END
CONDITION
COMP
FC FAN
HEATER
LED
: R 6 (71rps)
: VF4 (Ultrahigh Speed)
: DEFROST HEATER OFF
: ECONAVI LED and FREEZER LED [ NORMAL ]
BRINKING (ON_1sec/OFF_1sec)
COMP : R 7 (80rps)
CONTENTS
FOR CONTROL
PROCESS INSPECTION
NR-BY552 / NR-BY602
CONTENTS
INSPECTION OF TEMP. For 30 min., of the start of IN-PROCESS INSPECTION
Normal or abnormality is displayed according to the range of drop of FCC
ALL FREEZER LED LIGHTING..........GOOD
ALL FREEZER LED BRINKING..........BAD
JUDGEMENT
INSPECTION OF
ILLUMINANCE SENSOR
Contents of discussion
Illuminance sensor will be added. Therefore, an inspection of whether to be able to operate normally is necessary.
< In-process inspection of illuminance sensor >
①ECONAVI LED blinks at the start of in-process inspection check whether ECONAVI LED blinks.
④As long as the illuminance sensor is normal, ECONAVI LED goes out check whether ECONAVI LED goes out.
③Lighting of illuminance sensor shall be varied manually or automatically after the completion of aging. (If there is
input variation corresponding to a dark area and a bright area, microcomputer judges that as normal)
In Japan, a dark area and a bright area have been created in the place for inspection process.
②ECONAVI LED lights up after 1 min., of the start of in-process inspection (because if there is less input variation,
microcomputer judge that as abnormal) check whether ECONAVI LED lights up.
During IN-PROCESS INSPECTION
After 1 min., of the start of IN-PROCESS INSPECTION.
Abnormality is judged according to variation width of input voltage of
illuminance sensor.
ECONAVI LED EXTINCTION..........GOOD
ECONAVI LED LIGHTING...............BAD
JUDGEMENT
１
１１
１
１
１１
１
FREEZER
LED (3 pcs)
QUICK FREEZING
LED
ECONAVI
LED

Panasonic NR-BY552XS Specifications

General

Lamp type	LED
Egg balcony	Yes
No Frost (fridge)	-
Fridge net capacity	365 L
Fridge door balconies	5
Fridge gross capacity	398 L
Fridge temperature range	-1 - 10 °C
Number of vegetable drawers	1
Fridge number of shelves/baskets	4
Door hinge	Right
Control type	Lever
Door assembly	Door-on-door
Product color	Stainless steel
Shelves material	Tempered glass
Appliance placement	Freestanding
Refrigerating medium	R600a
Power source	Electric
Connected load	135 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	- kWh
Freezer position	Bottom-placed
Freezing capacity	- kg/24h
Freezer net capacity	130 L
Freezer gross capacity	153 L
Freezer temperature (min)	-13 °C
Freezer number of shelves/baskets	2
Storage time during power failure	- h
Noise level	- dB
Total net capacity	546 L
Total gross capacity	551 L

Weight and Dimensions

Depth	745 mm
Width	775 mm
Height	1714 mm
Weight	80000 g
