Panasonic NR-BY552XS User Manual

- 22 -
NR-BY552 / NR-BY602

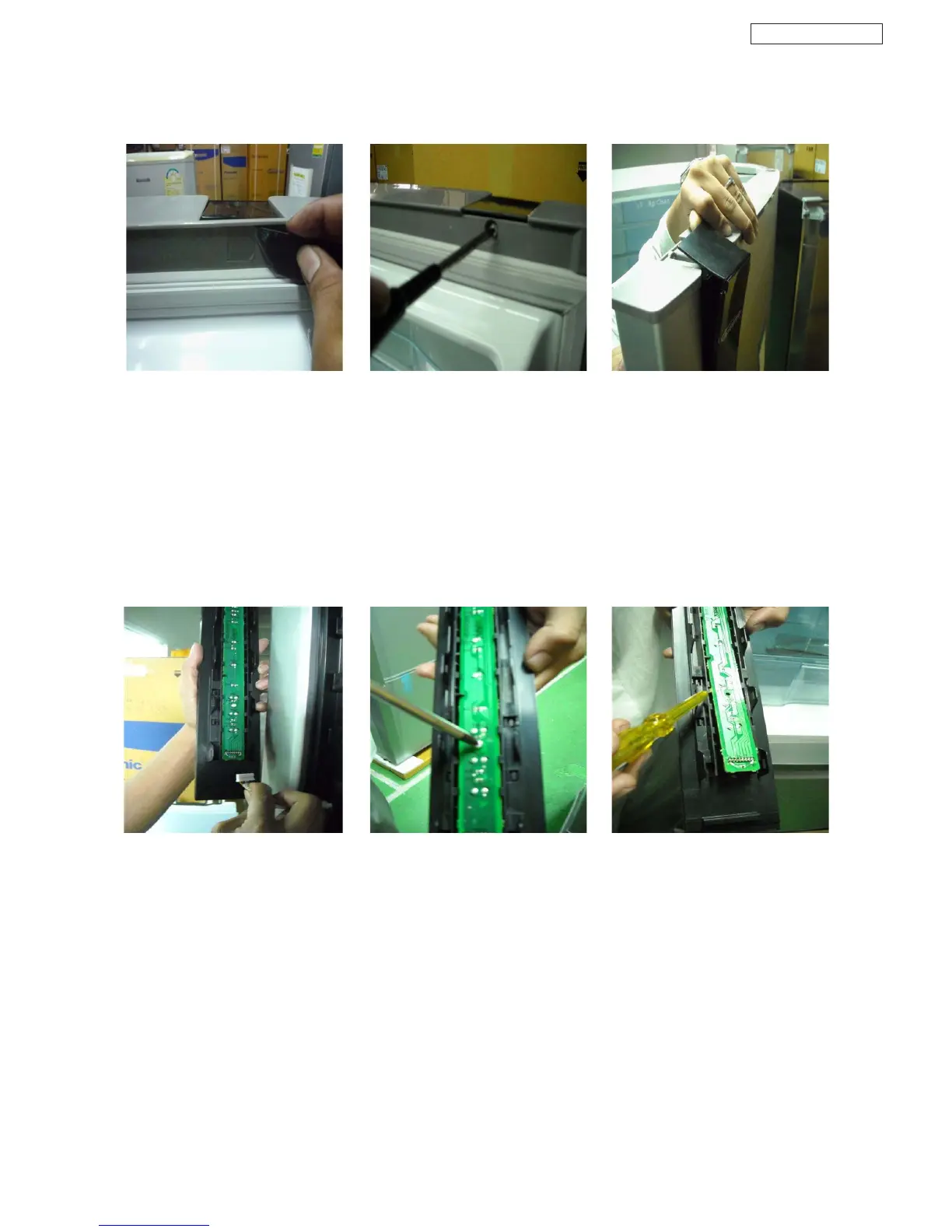

12.2 Cover Control
12.3 PCB Control
- Take off Cover sheet at PC door by use cutter as Fig. 1.
- Take off screw at PC door by use screwdriver as Fig. 2.
- Push Cover control up and try to push it in front slowly for locks loose as Fig. 3.
- Take off Lead wire socket which contact at PCB control as Fig. 1.
- Take off screw at PCB control as Fig. 2.
- Use screwdriver push up PAS-Control for loosing from locks slowly and prevention crack as Fig. 3.
Fig. 1 Fig. 2 Fig. 3
Fig. 1 Fig. 2 Fig. 3

Panasonic NR-BY552XS Specifications

General

Lamp type	LED
Egg balcony	Yes
No Frost (fridge)	-
Fridge net capacity	365 L
Fridge door balconies	5
Fridge gross capacity	398 L
Fridge temperature range	-1 - 10 °C
Number of vegetable drawers	1
Fridge number of shelves/baskets	4
Door hinge	Right
Control type	Lever
Door assembly	Door-on-door
Product color	Stainless steel
Shelves material	Tempered glass
Appliance placement	Freestanding
Refrigerating medium	R600a
Power source	Electric
Connected load	135 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	- kWh
Freezer position	Bottom-placed
Freezing capacity	- kg/24h
Freezer net capacity	130 L
Freezer gross capacity	153 L
Freezer temperature (min)	-13 °C
Freezer number of shelves/baskets	2
Storage time during power failure	- h
Noise level	- dB
Total net capacity	546 L
Total gross capacity	551 L

Weight and Dimensions

Depth	745 mm
Width	775 mm
Height	1714 mm
Weight	80000 g
