Panasonic NR-BY552XS User Manual

- 24 -
NR-BY552 / NR-BY602

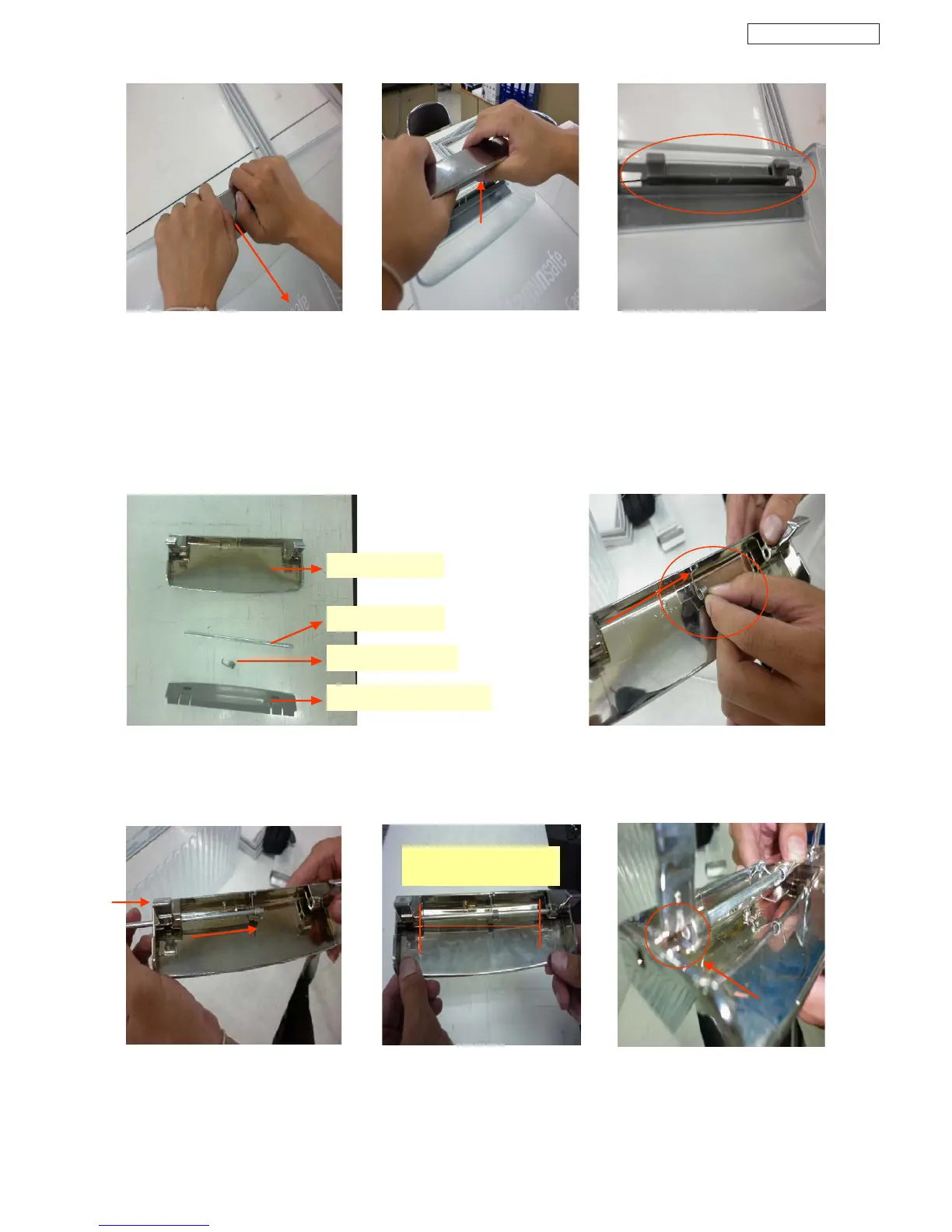

12.6 Maintain method : Crisper handle ass’y
- Both hands hold Crisper handle and press down (about 45 degree) for unlock as Fig. 5.
- Both hands hold Crisper handle and carry up for unlock as Fig. 6.
- After take off Crisper handle and remain new piece as Fig. 7.
- Explode parts of Crisper handle as Fig. 8.
- To lock Spring crisper with Handle sub as. as Fig. 9.
Fig. 5 Fig. 6
Fig. 8 Fig. 9
Fig. 7
- To ass’y Shaft crisper from hole, left side through Spring crisper and finish at hole, right side as Fig. 10.
- To check Shaft crisper must be ass’y center as Fig. 11.
- Shaft crisper must be lock with hole complete as Fig. 12.
Fig. 10 Fig. 11 Fig. 12
HANDLE SUB AS.
SHAFT CRISPER
SPRING CRISPER
PIECE CRISPER HANDLE
SHAFT MUST BE ASS’Y
CENTER

Panasonic NR-BY552XS Specifications

General

Lamp type	LED
Egg balcony	Yes
No Frost (fridge)	-
Fridge net capacity	365 L
Fridge door balconies	5
Fridge gross capacity	398 L
Fridge temperature range	-1 - 10 °C
Number of vegetable drawers	1
Fridge number of shelves/baskets	4
Door hinge	Right
Control type	Lever
Door assembly	Door-on-door
Product color	Stainless steel
Shelves material	Tempered glass
Appliance placement	Freestanding
Refrigerating medium	R600a
Power source	Electric
Connected load	135 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	- kWh
Freezer position	Bottom-placed
Freezing capacity	- kg/24h
Freezer net capacity	130 L
Freezer gross capacity	153 L
Freezer temperature (min)	-13 °C
Freezer number of shelves/baskets	2
Storage time during power failure	- h
Noise level	- dB
Total net capacity	546 L
Total gross capacity	551 L

Weight and Dimensions

Depth	745 mm
Width	775 mm
Height	1714 mm
Weight	80000 g
