Panasonic NV-GS75E - Jack C.b.a

12.5. JACK C.B.A.
Transister
LB4007 B-5
Q4901 E-5 LB4008 B-4
Q4902 E-2 LB4009 B-5
Q4903 E-1 LB4921 E-5
Q4904 D-2 LB4922 C-5
Q4907 D-1 LB4923 D-5
Q4908 D-5 LB4924 D-5
Transister &Resister
LB4926 E-5
QR4901 D-2 LB4928 E-5
Test Point Capacitor
CL4001 E-6 C3908 C-2
CL4002 D-5 C4001 C-2
CL4003 C-6 C4003 F-5
CL4004 D-6 C4004 F-5
CL4901 C-5 C4901 D-5
CL4902 D-5 C4902 E-5
RL2501 F-1 C4903 E-5
RL2502 E-6 C4904 E-5
RL2503 A-5 C4905 E-1
RL2504 A-2 C4906 D-1
RL4801 E-1 C4908 D-5
Connector
C4909 D-5
FP6201 C-5 C4910 E-2
Jack
C4913 E-5
JK3001 B-2
Resistor
JK3901 C-3 R4001 D-5
JK4001 F-2 R4901 D-5
JK4901 D-2 R4902 D-1
Diode
R4904 D-5
D4901 D-1 R4905 E-5
Absorber
R4906 E-2
VZ4001 B-5 R4907 E-5
VZ4002 C-5 R4908 E-5
VZ4003 B-5 R4909 E-5
VZ4004 F-5 R4910 E-2
VZ4902 E-5 R4911 E-2
VZ4903 C-5 R4912 D-5
Filter
R4913 D-2
FL2503 C-2 R4914 E-2
Switch
R4915 D-5
S6212 B-5 R4916 E-1
Coil
R4917 D-2
LB3902 C-2 R4918 E-2
LB4001 E-5 R4920 E-5
LB4003 E-5 R4922 D-6
LB4005 E-5 R4923 D-5
LB4006 F-5 R4924 D-5

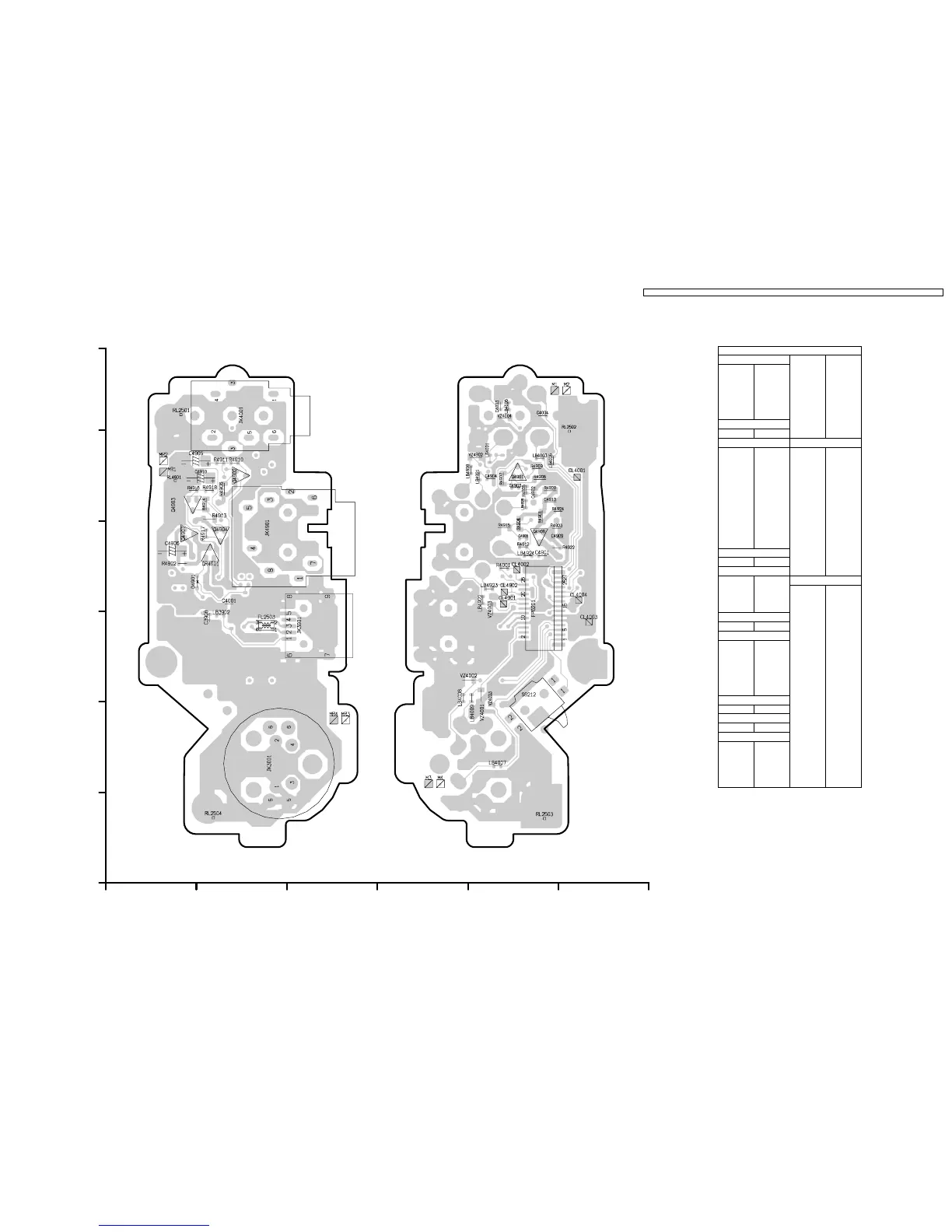

Jack C.B.A.
(VEP001H7A)
1
A
B
C
D
E
F
23456
(COMPONENT SIDE)
(FOIL SIDE)
NOTE:MULTILAYER C.B.A.
THIS C.B.A. IS Multi-Layer C.B.A. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN
FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT-PATTERNS ARE SINGLE PATTERN FOR EACH
SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.
NV-GS75,GS78
JACK C.B.A.
NV-GS75E / NV-GS75EG / NV-GS75EB / NV-GS75EK / NV-GS75EP / NV-GS75GC / NV-GS75GN / NV-GS75GCD / NV-GS78GK
47
