Panasonic NV-GS75E - Difference Comparison Chart; Attention for Exchange the MONITOR C.B.A; Attention for Exchange the LCD PANEL UNIT

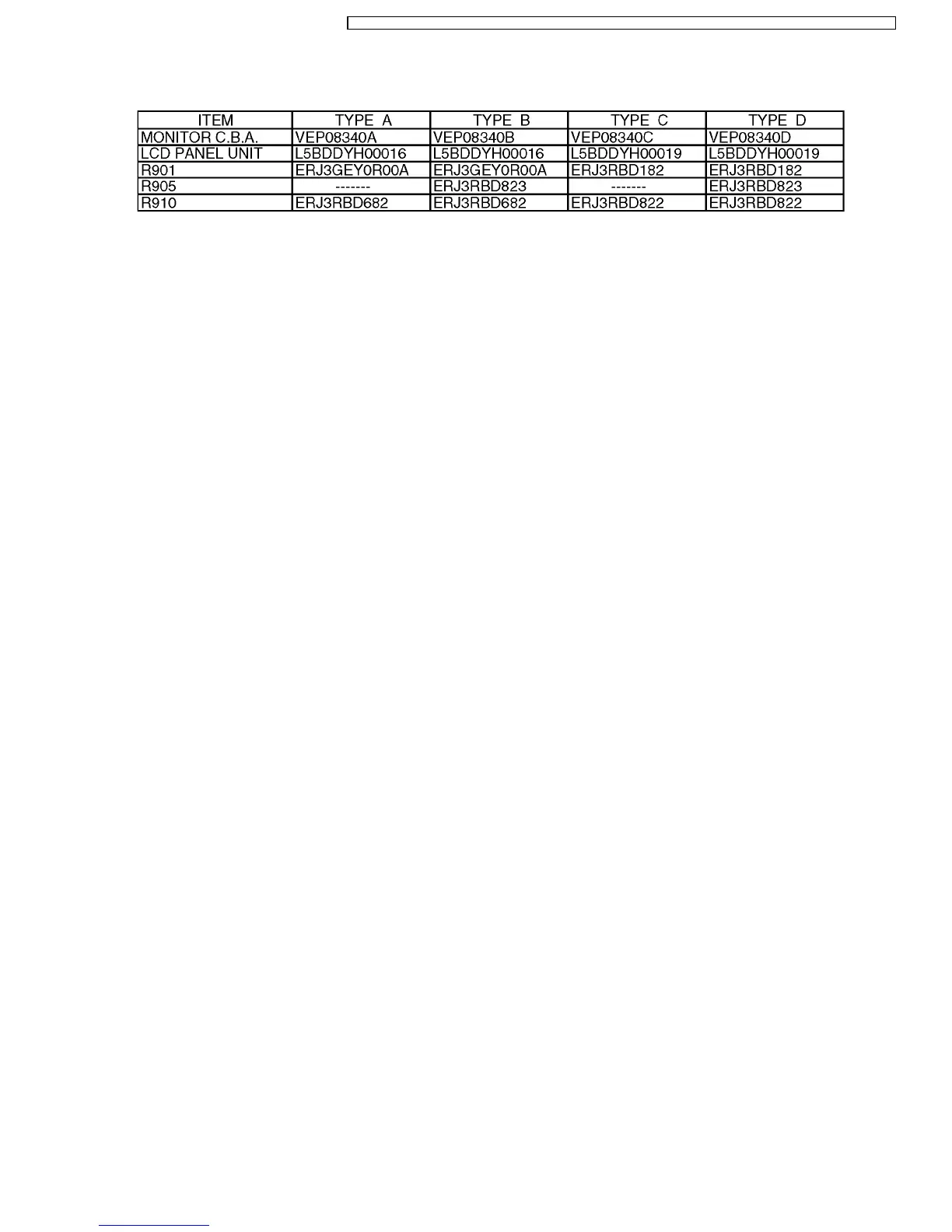

1.3. Difference Comparison Chart
1.4. Attention for exchange the MONITOR C.B.A..
· In the case that the LCD PANEL UNIT is TYPE “A”.
Replace the chip resistor of R901 and R910 to the chip resistor that is doning the same pack to the kit.
R901 ERJ3RBD182 → ERJ3GEY0R00
R910 ERJ3RBD822 → ERJ3RBD682
· In the case that the LCD PANEL UNIT is TYPE “B”.
Exchange only the MONITOR C.B.A..
1.5. Attention for exchange the LCD PANEL UNIT.
· In the case that the MONITOR C.B.A. is TYPE “A” and “B”.
Replace the chip resistor of R901 and R910 to the chip resistor that is doning the same pack to the kit.
R901 ERJ3RBD182 → ERJ3GEY0R00
R910 ERJ3RBD822 → ERJ3RBD682
· In the case that the MONITOR C.B.A. is TYPE “C” and “D”.
Exchange only the LCD PANEL UNIT.
CAUTION:UNIT
It does the confirmation of the MONITOR C.B.A. and LCD PANEL UNIT without fail on the occasion of the repair and please
do the part exchange.
