= S-VIDEO IN

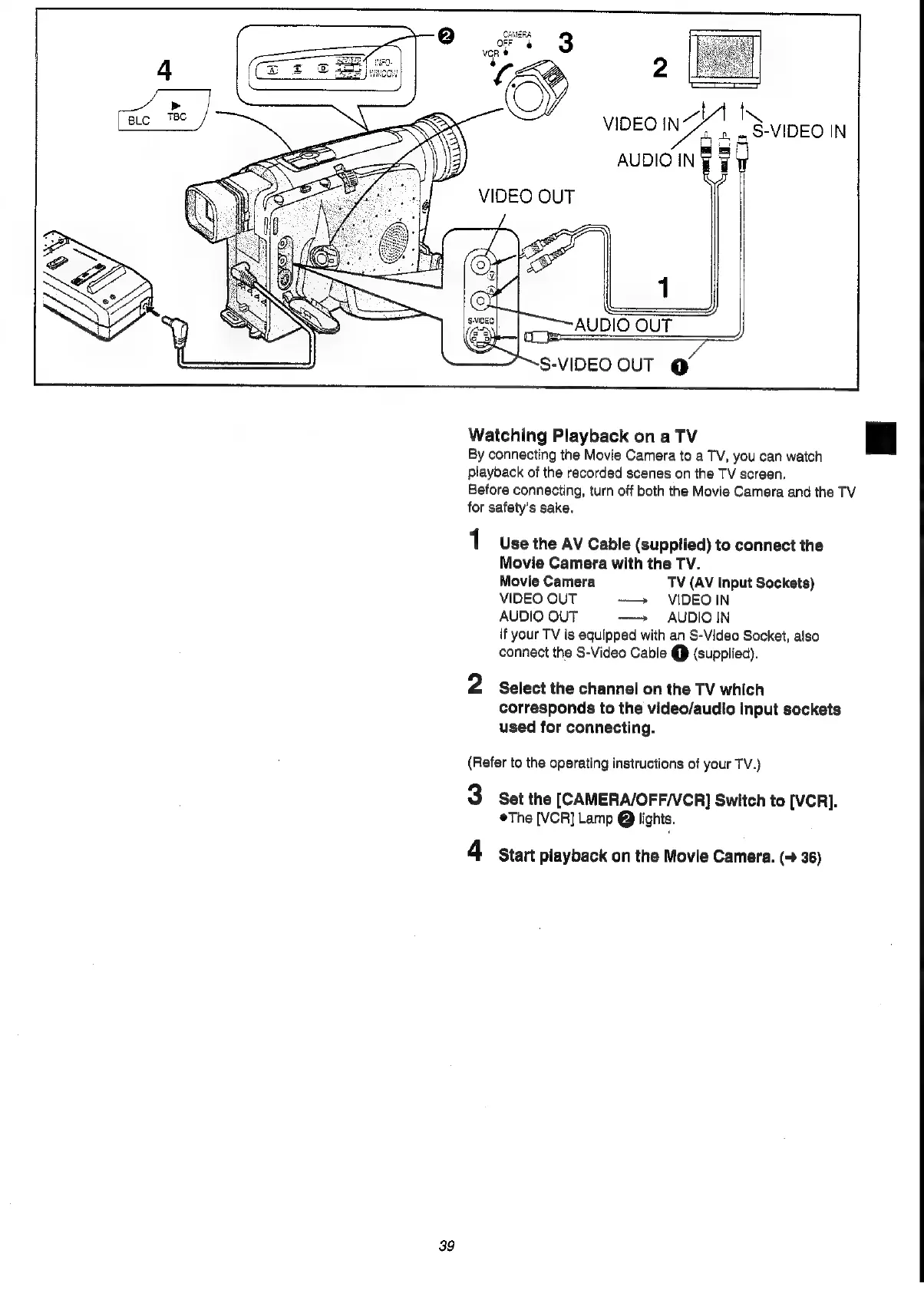

Watching
Playback
on
a
TV
||
By
connecting
the
Movie
Camera
to
a
TV,
you
can
watch
playback of the recorded scenes on the TV screen.
Before connecting, turn off both the Movie Camera and the TV
for safety’s sake.
1 Use the AV Cable (supplied) to connect the
Movie Camera with the TV.
Movie Camera TV (AV Input Sockets)
VIDEO OUT ~~» VIDEOIN
AUDIO OUT —» AUDIO IN
if your TV is equipped with an S-Video Socket, also
connect the S-Video Cable @ (supplied).
2 Select the channel on the TV which
corresponds to the video/audio input sockets
used for connecting.
(Refer to the operating instructions of your TV.)
3 Set the [CAMERA/OFF/VCR] Switch to [VCR].
©The [VCR] Lamp @ lights.
4 Start playback on the Movie Camera. (- 36)
39
