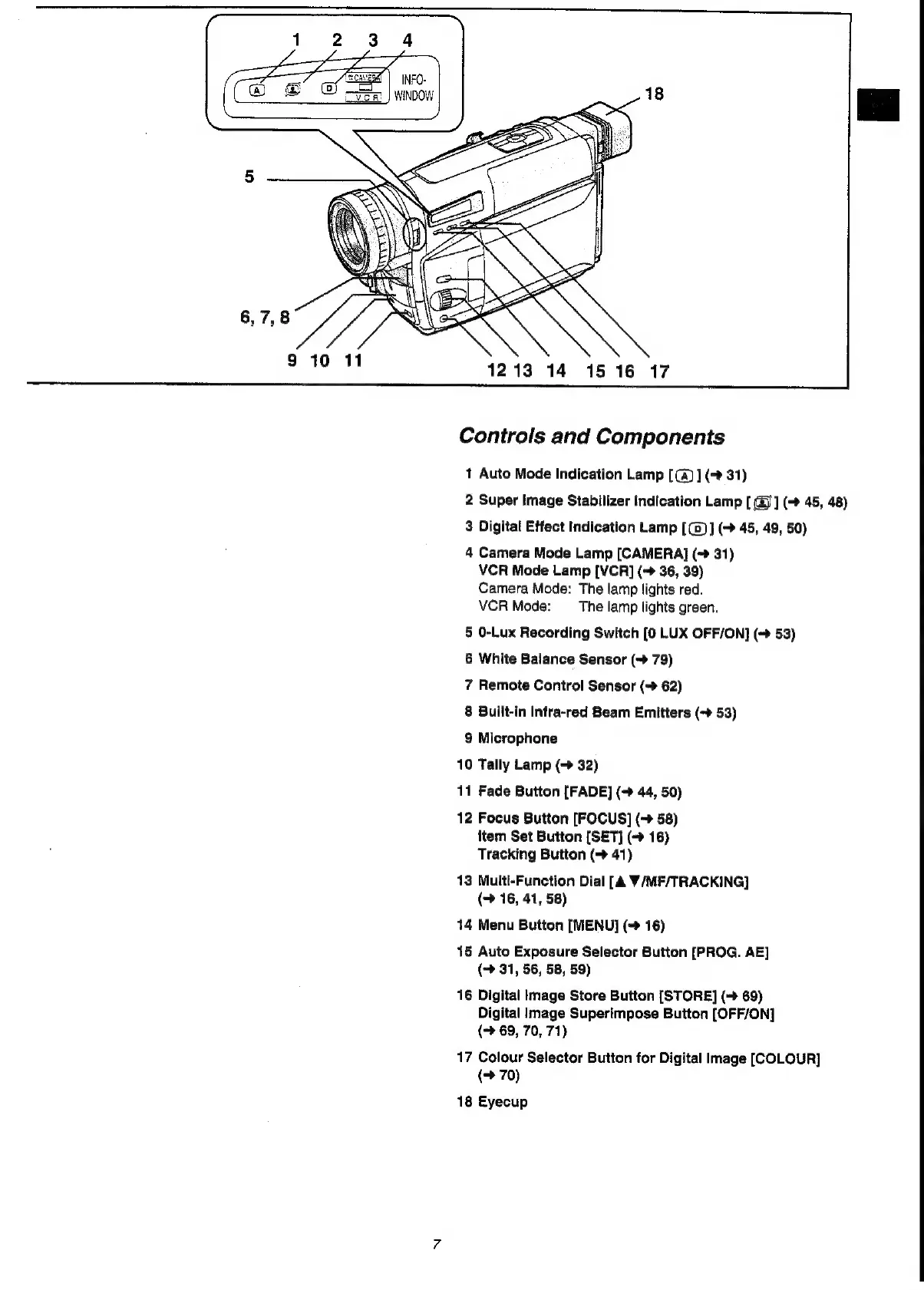

Controls and Components
1 Auto Mode Indication Lamp [(a)] (- 31)
2 Super Image Stabilizer Indication Lamp [ (&)] (+ 45, 48)
3 Digital Effect Indication Lamp [(6) J (> 45, 49, 50)
4 Camera Mode Lamp [CAMERA] (~> 31)
VCR Mode Lamp [VCR] (-» 36, 39)
Camera Mode: The lamp lights red.
VCR Mode: The lamp lights green.
§ 0-Lux Recording Switch [0 LUX OFF/ON} («> 53)
6 White Balance Sensor (~ 79)
7 Remote Control Sensor (~> 62)
8 Built-in Infra-red Beam Emitters (-» 53)
9 Microphone
10 Tally Lamp (~ 32)
11 Fade Button [FADE] (+ 44, 50)
12 Focus Button [FOCUS] (~ 58)
{tem Set Button [SET] (-> 16)
Tracking Button (> 41)
13 Multi-Function Dial [A V/MF/TRACKING]
(» 16, 41, 58)
14 Menu Button [MENU] (> 16)
15 Auto Exposure Selector Button [PROG. AE]
(7 31, 56, 58, 59)
16 Digital Image Store Button [STORE] ( 69)
Digital Image Superimpose Button [OFF/ON]
{+> 69, 70, 71)
17 Colour Selector Button for Digital Image [COLOUR]
(> 70)
18 Eyecup
