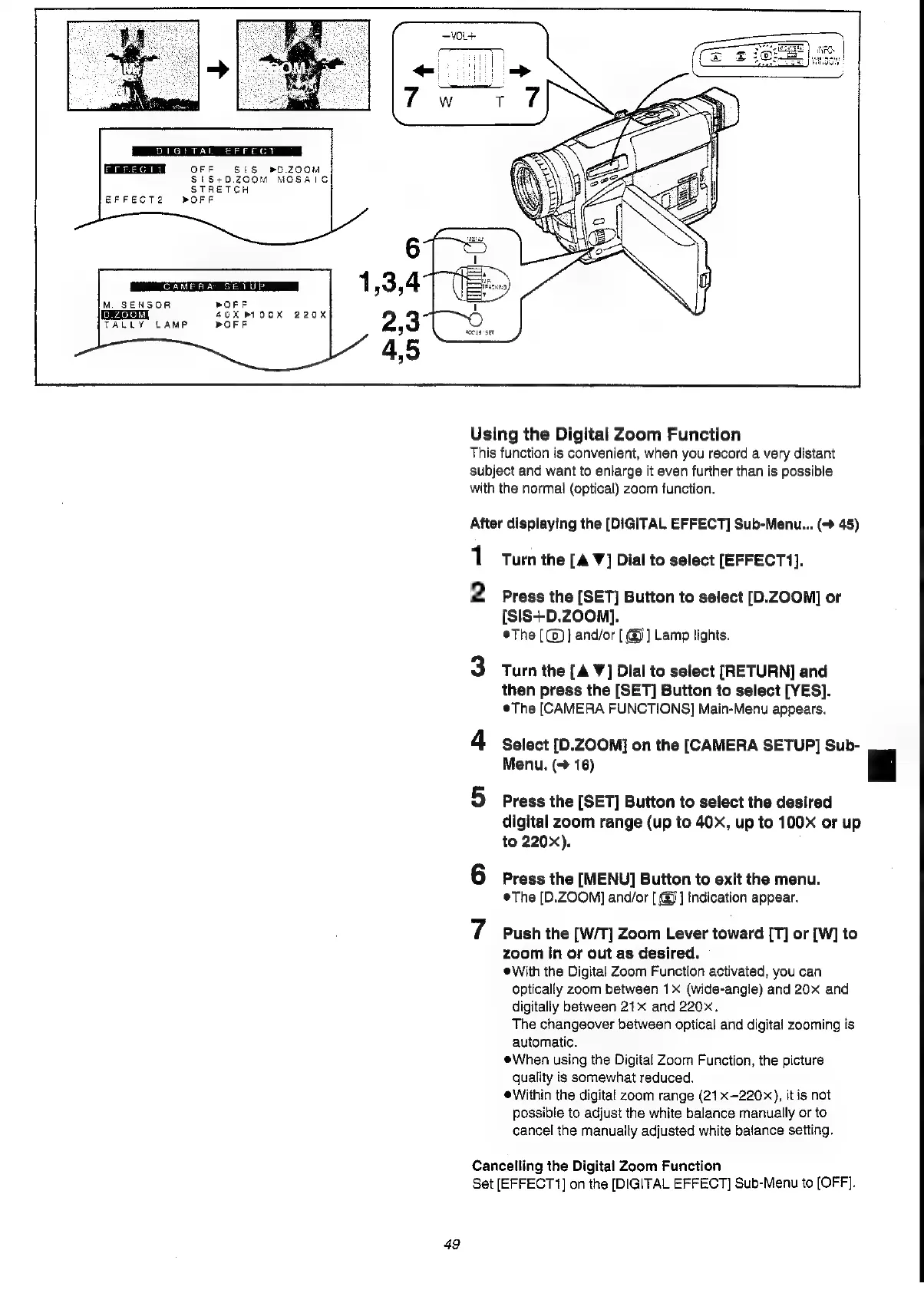

Using the Digital Zoom Function
This function is convenient, when you record a very distant
subject and want to enlarge it even further than is possible
with the normal (optical) zoom function.
After displaying the [DIGITAL EFFECT] Sub-Menu... (> 45)
1 Turn the [A ¥] Dial to select [EFFECT1].
2 Press the [SET] Button to select [D.ZOOM] or
[SIS+D.ZOOM].
The [(@)] and/or [ @&)] Lamp tights.
3 Turn the [A ¥] Dial to select [RETURN] and
then press the [SET] Button to select [YES].
eThe [CAMERA FUNCTIONS] Main-Menu appears.
4 Select [D.ZOOM] on the [CAMERA SETUP] Sub-
Menu. (- 16) a
5 Press the [SET] Button to select the desired
digital zoom range (up to 40x, up to 100x or up
to 220x).
6 Press the [MENU] Button to exit the menu.
®The [D.ZOOM] and/or [ ¢s) ] Indication appear.
7 Push the [W/T] Zoom Lever toward [T] or [W] to
zoom in or out as desired.
eWith the Digital Zoom Function activated, you can
optically zoom between 1x (wide-angle) and 20x and
digitally between 21x and 220x.
The changeover between optical and digital zooming is
automatic.
When using the Digital Zoom Function, the picture
quality is somewhat reduced.
eWithin the digital zoom range (21 x-220x), it is not
possible to adjust the white balance manually or to
cancel the manually adjusted white balance setting.
Cancelling the Digital Zoom Function
Set [EFFECT 1] on the [DIGITAL EFFECT] Sub-Menu to [OFF].
