Panasonic NV-VS3A - Dubbing (Copying) Tapes

on
ver @
4
S-VIDEO OUT

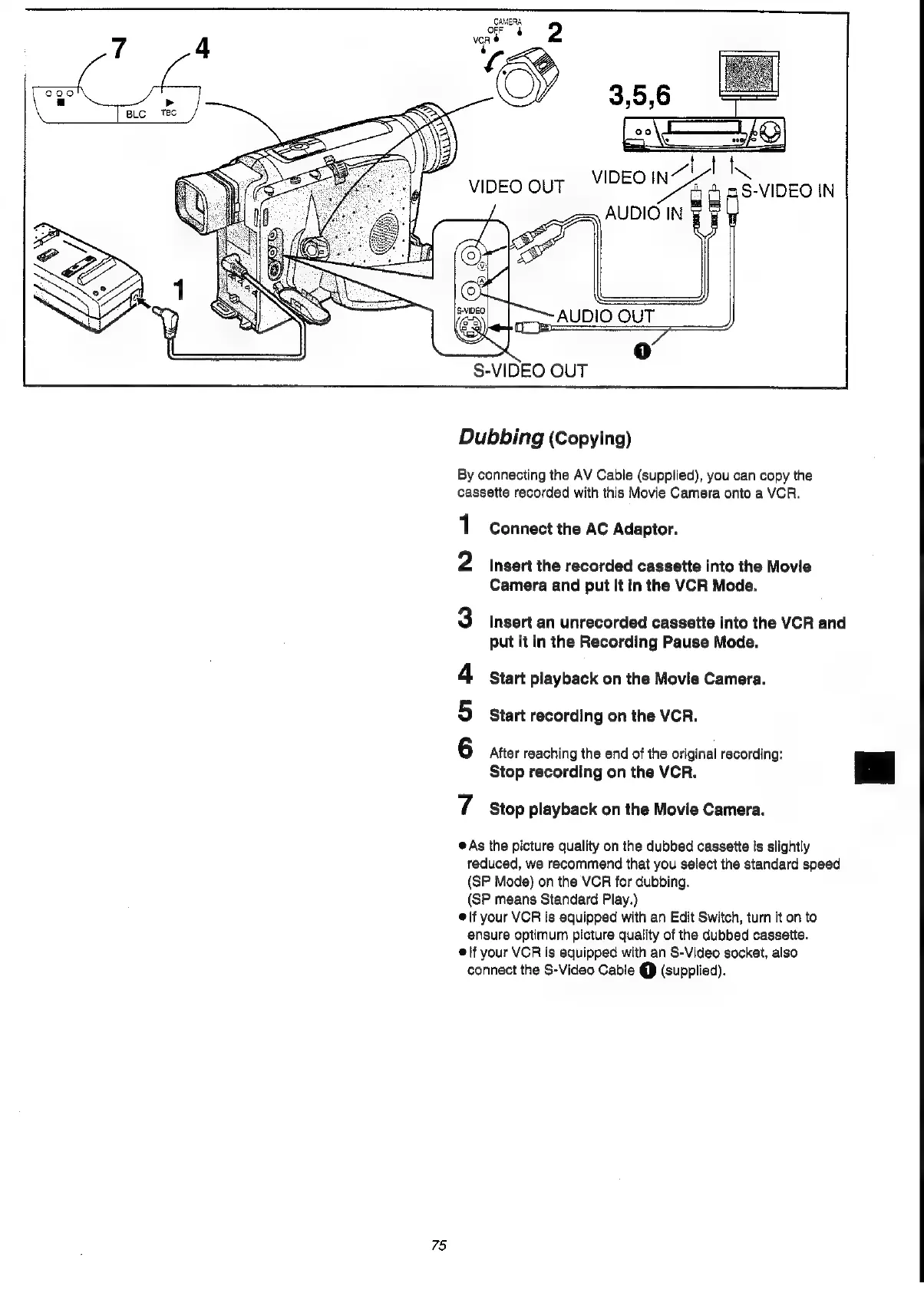

Dubbing (Copying)
By connecting the AV Cable (supplied), you can copy the
cassette recorded with this Movie Camera onto a VCR.
Connect the AC Adaptor.
Insert the recorded cassette into the Movie
Camera and put it in the VCR Mode.
Insert an unrecorded cassette into the VCR and
put it in the Recording Pause Mode.
Start playback on the Movie Camera.
Start recording on the VCR.
After reaching the end of the original recording:
Stop recording on the VCR. mi
nN OCP © ND —
Stop playback on the Movie Camera.
© As the picture quality on the dubbed cassette is slightly
reduced, we recommend that you select the standard speed
(SP Mode) on the VCR for dubbing.
(SP means Standard Play.)
@{f your VCR is equipped with an Edit Switch, turn it on to
ensure optimum picture quality of the dubbed cassette.
® lf your VCR is equipped with an S-Video socket, also
connect the S-Video Cable @} (supplied).
75
