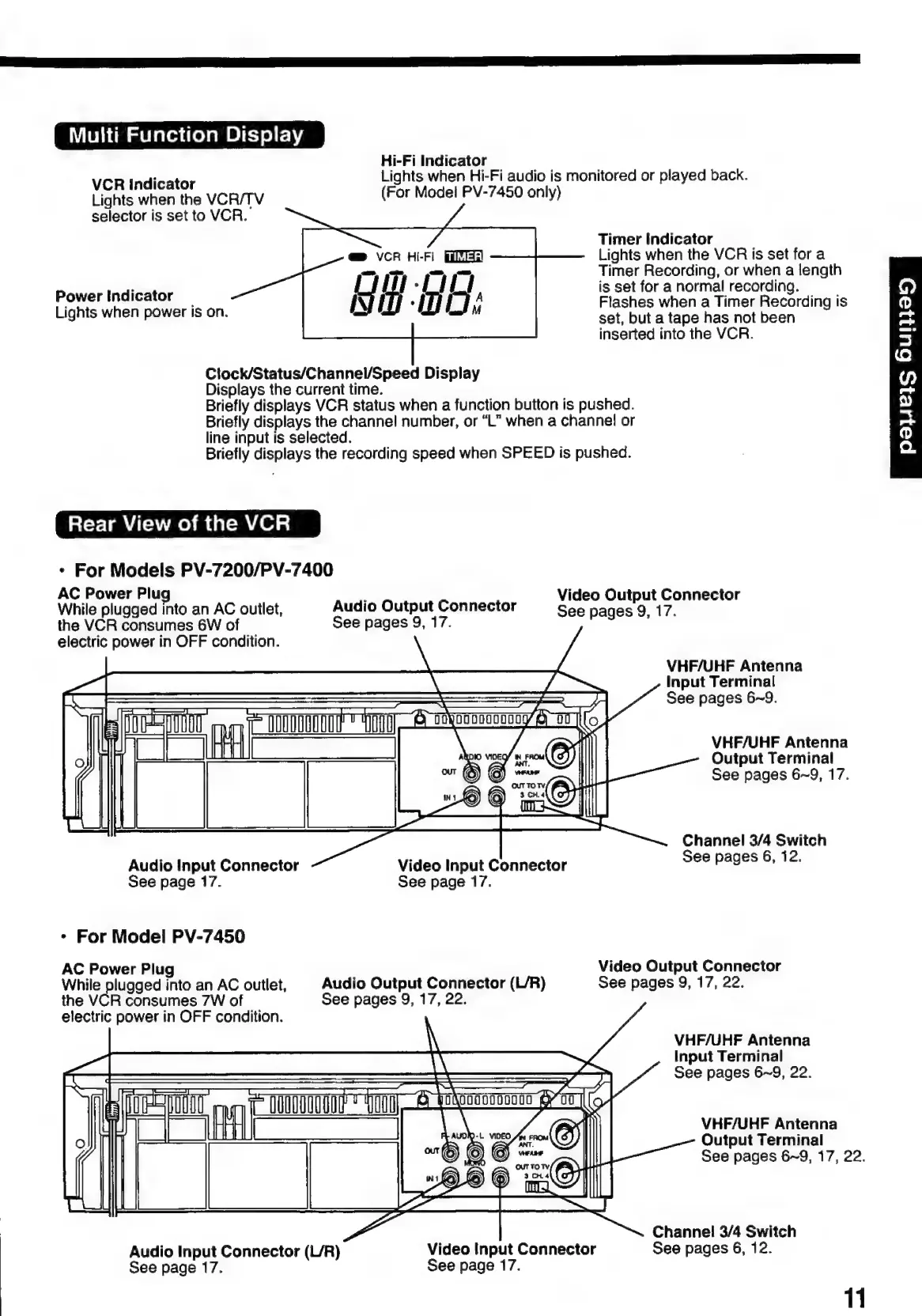

Multi Function Display
Hi-Fi Indicator
: Lights when Hi-Fi audio is monitored or played back.
VCR Indicator
Lights when the VCR/TV (For Model PV-7450 only)
selector is set to VCR.
Timer indicator
Lights when the VCR is set for a
Timer Recording, or when a length
is set for a normal recording.
Flashes when a Timer Recording is
set, but a tape has not been
inserted into the VCR.
-— R Hi- Fi MER
B db;
Clock/Status/Channel/Speed Display
Displays the current time.
Briefly displays VCR status when a function button is pushed.
Briefly displays the channel number, or "L" when a channel or
line input is selected.
Briefly displays the recording speed when SPEED is pushed.
Power Indicator
Lights when power is on.
G)
t
e
my
=
(O
o
gut
©
+
(D
¡ol
Rear View of the VCR
* For Models PV-7200/PV-7400
AC Power Plu : Video Output Connector
While plugged inte an AC outlet, Audio Output Connector See Pages d. 17.
the VCR consumes 6W of See pages 9, 17.
electric power in OFF condition.
VHF/UHF Antenna
Input Terminal
See pages 6-9.
Pai
PE
E
JE n mum "mm Mm an
T || tit
VHF/UHF Antenna
Output Terminal
See pages 6-9, 17.
Channel 3/4 Switch
Audio
Input
Connector
Video
Input
Connector
See
pages
6,
12.
See page 17. See page 17.
* For Model PV-7450
AC Power Plug Video Output Connector
While plugged into an AC outlet, Audio Output Connector (L/R) See pages 9, 17, 22.
the VCR consumes 7W of See pages 89, 17, 22.
electric power in OFF condition.
VHF/UHF Antenna
Input Terminal
See pages 6-9, 22.
8
E == Vs vrac sacro NE IT c
LULL OO Se ES
VHF/UHF Antenna
Output Terminal
See pages 6-9, 17, 22.
í Channe! 3/4 Switch
Audio
Input
Connector
(L/R)
Video
Input
Connector
See
pages
6,
12.
See page 17. See page 17.
11
