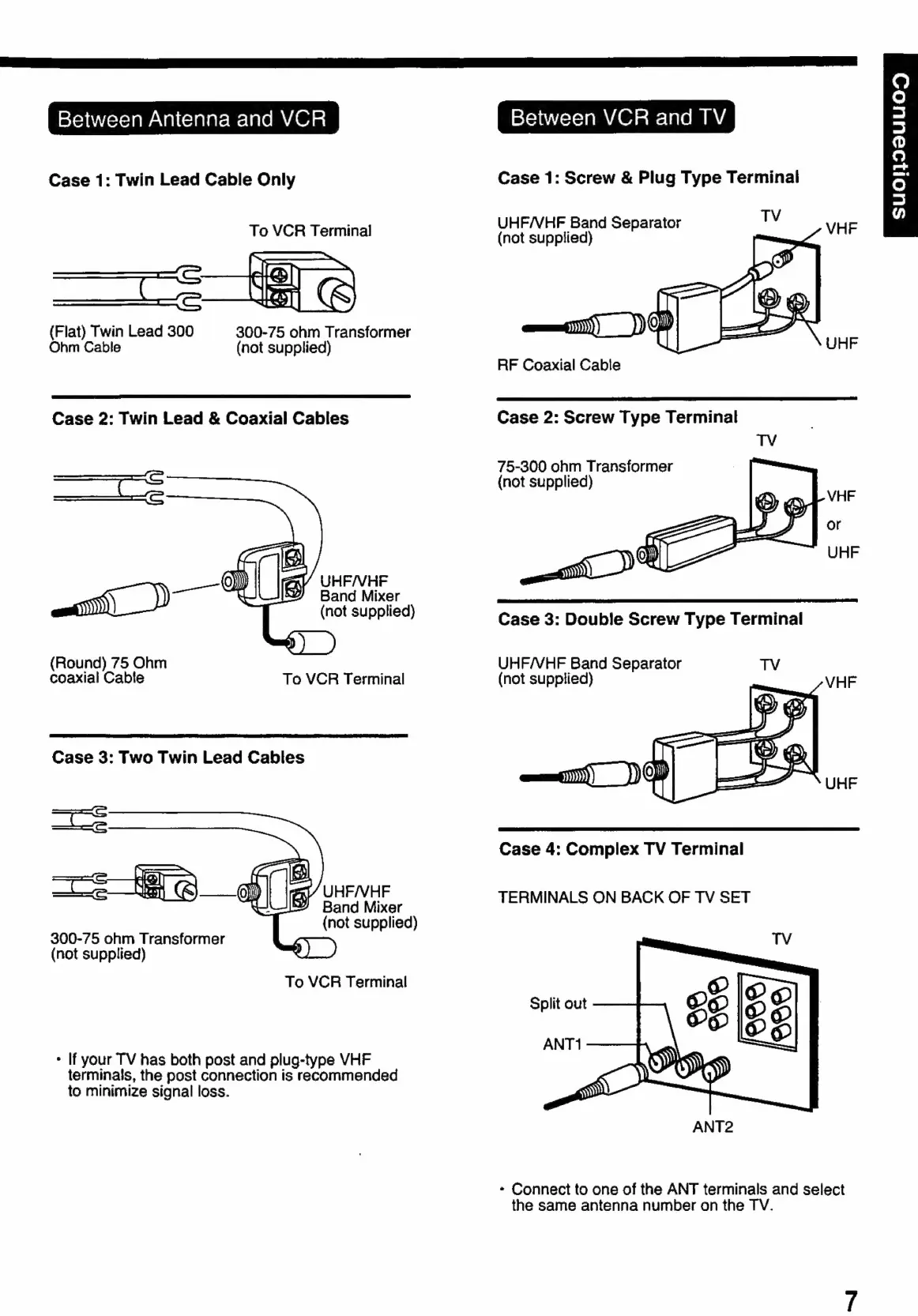

Between Antenna and VCR
Case 1: Twin Lead Cable Only
nese a
(Flat) Twin Lead 300
Ohm Cable
To VCR Terminal
300-75 ohm Transformer
(not supplied)
Case 2: Twin Lead & Coaxial Cables
UHF/VHF
Band Mixer
(not supplied)
(Round) 75 Ohm
coaxial Cabte To VCR Terminal
Case 3: Two Twin Lead Cables
Fl
TERO
)
UHF/VHF
Š Band Mixer
300-75 ohm Transformer
(not supplied)
To VCR Terminal
* If your TV has both post and plug-type VHF
terminals, the post connection is recommended
to minimize signal loss.
(not supplied)
Between VCR and TV
Case 1: Screw & Plug Type Terminal
UHF/VHF Band Separator
(not supplied)
RF Coaxial Cable
Case 2: Screw Type Terminal
75-300 ohm Transformer
(not supplied)
Case 3: Double Screw Type Terminal
UHF/VHF Band Separator TV
(not supplied) VHE
Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
Split out
* Connect to one of the ANT terminals and select
the same antenna number on the TV.
