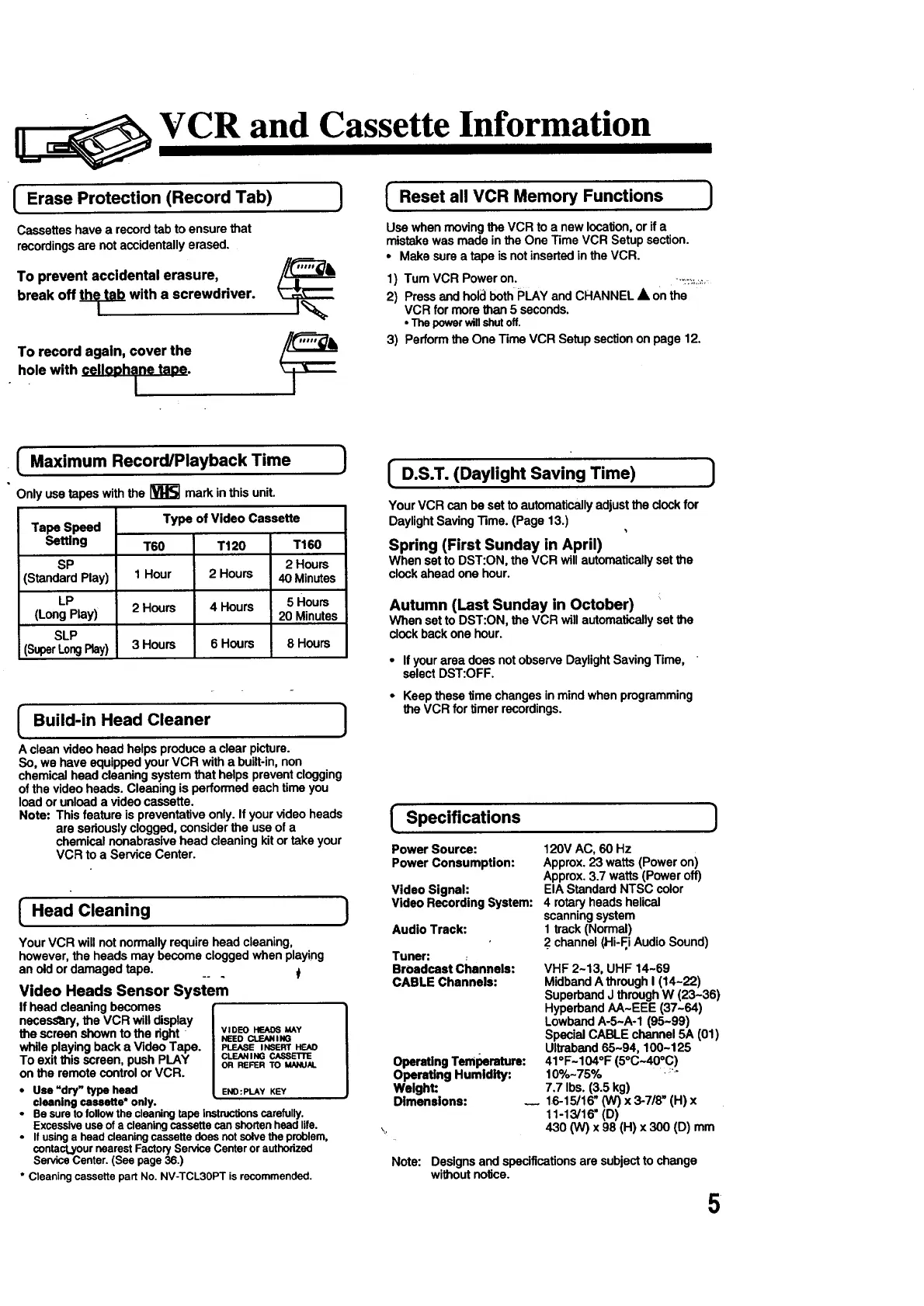

VCR and Cassette Information
Erase Protection (Record Tab)
Cassettes have a record tab to ensure that
recordings are not accidentally erased.
To prevent accidental erasure,
break off the1_ with a screwdriver•
--F-
To record again, cover the
hole with celloDhane tape.
/
]
Reset all VCR Memory Functions 1
Use when moving the VCR to a new location, or if a
mistake was made in the One Time VCR Setup section.
• Make sure a tape is not inserted in the VCR.
1) Tum VCR Power on. -'::;;=_:r
2) PreSS and hold both_PLAY and CHANNEL • on the
VCR for more than 5 seconds.
• The powerwillshutoff.
3) Perform the One Time VCR Setup section on page 12.
Maximum Record/Playback Time
• Only use tapes with the I_ mark in this unit.
Tape Speed
Setting
T60 T120
SP
(Standard Play) 1 Hour 2 Hours
LP
(Long Play) 2 Hours 4 Hours
SLP
(SuperLongFqay) 3 Hours 6 Hours 8 Hours
Type of Video Cassette
T160
2 Hours
40 Minutes
5 Hours
20 Minutes
J
Build-in Head Cleaner ]
A clean video head helps produce a clear picture.
So, we have equipped your VCR with a built-in, non
chemical head cleaning system that helps prevent clogging
of the video heads. Cleaning is performed each time you
load or unload a video cassette.
Note: This feature is preventative only. If your video heads
are sedously clogged, consider the use of a
chemical nonabrasive head cleaning kit or take your
VCR to a Service Center.
Head Cleaning
J
Your VCR will not normally require head cleaning,
however, the heads may become clogged when playing
an old or damaged tape. ... f
Video Heads Sensor System
If head cleaning becomes
necessary, the VCR will display
the screen shown to the dght V=DEOHEADSMAY
NEED CLEANING
while playing back a Video Tape. PLEASEiNSERTHE_)
TO exit this screen, push PLAY CLE_'NGC_SE'rrE
OR REFER TO MANUAl.
on the remote control or VCR.
• Use "dry" type heed END:PLAYKEY
cleaning cassette* only.
• Be sure tofollowthe cleaningtape InetnJctionscarefully.
Excessiveuse ofa cleaningcassette canshortenheadlife.
• If usinga head cleaningcassettedoesnotsolvethe problem,
contacLyournearestFactoryServiceCenterorauthorized
ServiceCenter.(See page 36.)
* CleaningcassettepartNo. NV-TCL30PT is recommended.
D.S.T. (Daylight Saving Time)
Your VCR can be set to automatically adjust the clockfor
Daylight Saving Time. (Page 13.)
Spring (First Sunday in April)
When set to DST:ON, the VCR will automatically set the
clock ahead one hour.
Autumn (Last Sunday in October)
When set to DST:ON, the VCR Nil automat_ally set the
clock back one hour.
• If your area does not observe Daylight Saving Time,
select DST:OFF.
• Keepthese time changesin mindwhenprogramming
the VCR for timer recordings.
J
Specifications
]
Power Source:
Power Consumption:
Video Signal:
Video Recording System:
Audio Track:
Tuner:
Broadcast channels:
CABLE Channels:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions:
120VAC,60 Hz
Approx.23 watts(Poweron)
Approx.3.7 watts(Poweroff)
EIAStandardNTSCcolor
4 rotaryheadshelical
scanningsystem
1 track(Normal)
2 channel(Hi-Fi AudioSound)
VHF 2-13, UHF 14-69
Midband A through I (14-22)
Superband J through W (23-36)
Hyperband AA-EEE (37-64)
Lowband A-5-A-1 (95-99)
Special CABLE channel 5A (01)
Ultraband 65-94, 100-125
41°F-104°F (5°C~400C)
10%-75% :_'_
7.7 Ibs. (3.5 kg)
16-15/16" ON)x 3"7/8" (H) x
11-13/16" (D)
430 ON) x 98 (H) x 300 (D) mm
Note: Designsand specificationsare subjectto change
withoutnotice.
.
