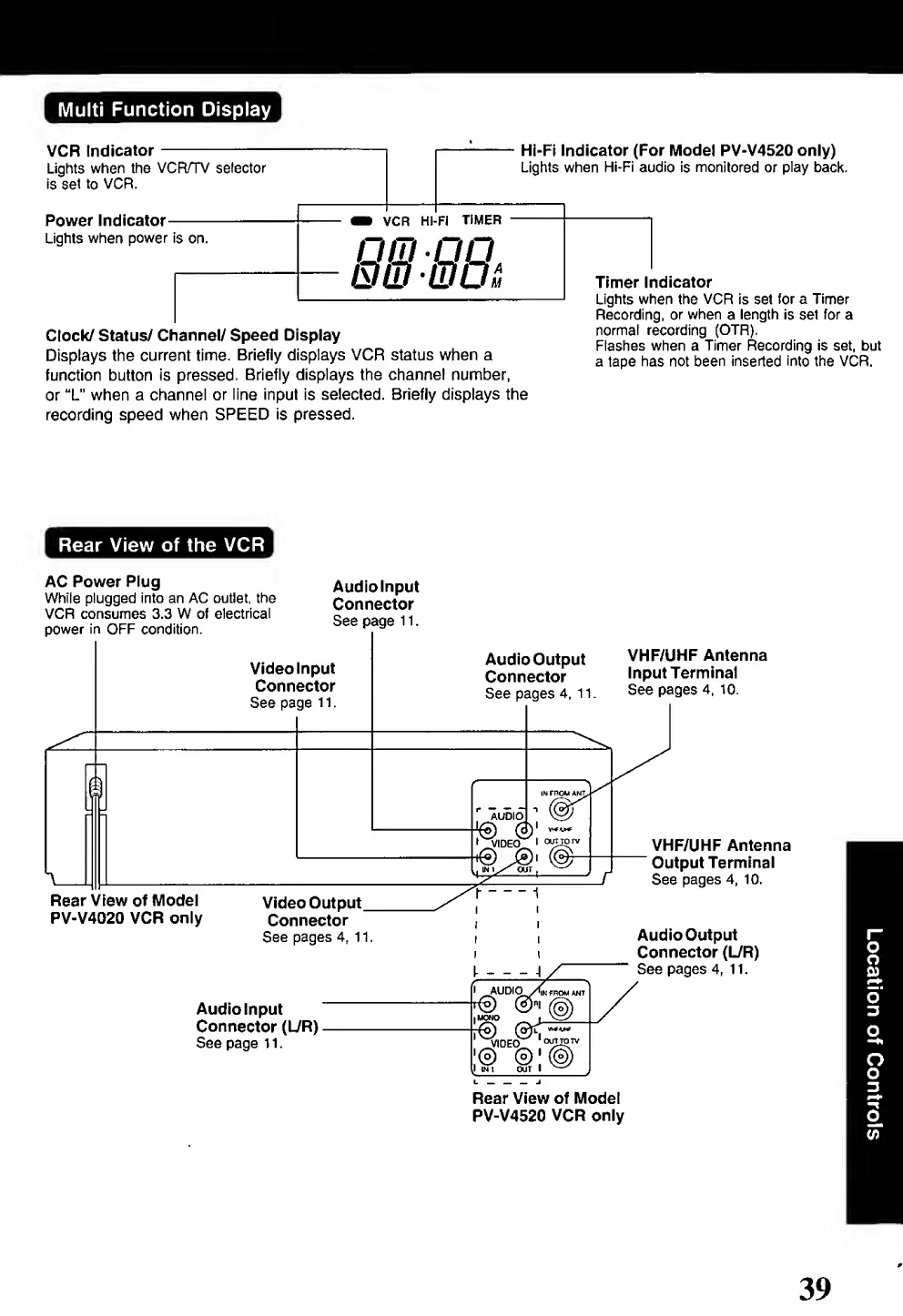

Multi Function Display
VCR Indicator
Lights when the VCR/TV selector
is set to VCR.
Power Indicator-
Lights when power is on.
Hi-Fi Indicator (For Model PV-V4520 only)
Lights when Hi-Fi audio is monitored or play back.
Clock/ Status/ Channel/ Speed Display
Displays the current time. Briefly displays VCR status when a
function button is pressed. Briefly displays the channel number,
or “L” when a channel or line input is selected. Briefly displays the
recording speed when SPEED is pressed.
Timer Indicator
Lights when the VCR is set for a Timer
Recording, or when a length is set for a
normal recording (OTR).
Flashes when a Timer Recording is set, but
a tape has not been inserted into the VCR.
Rear View of Model
PV-V4520 VCR only
