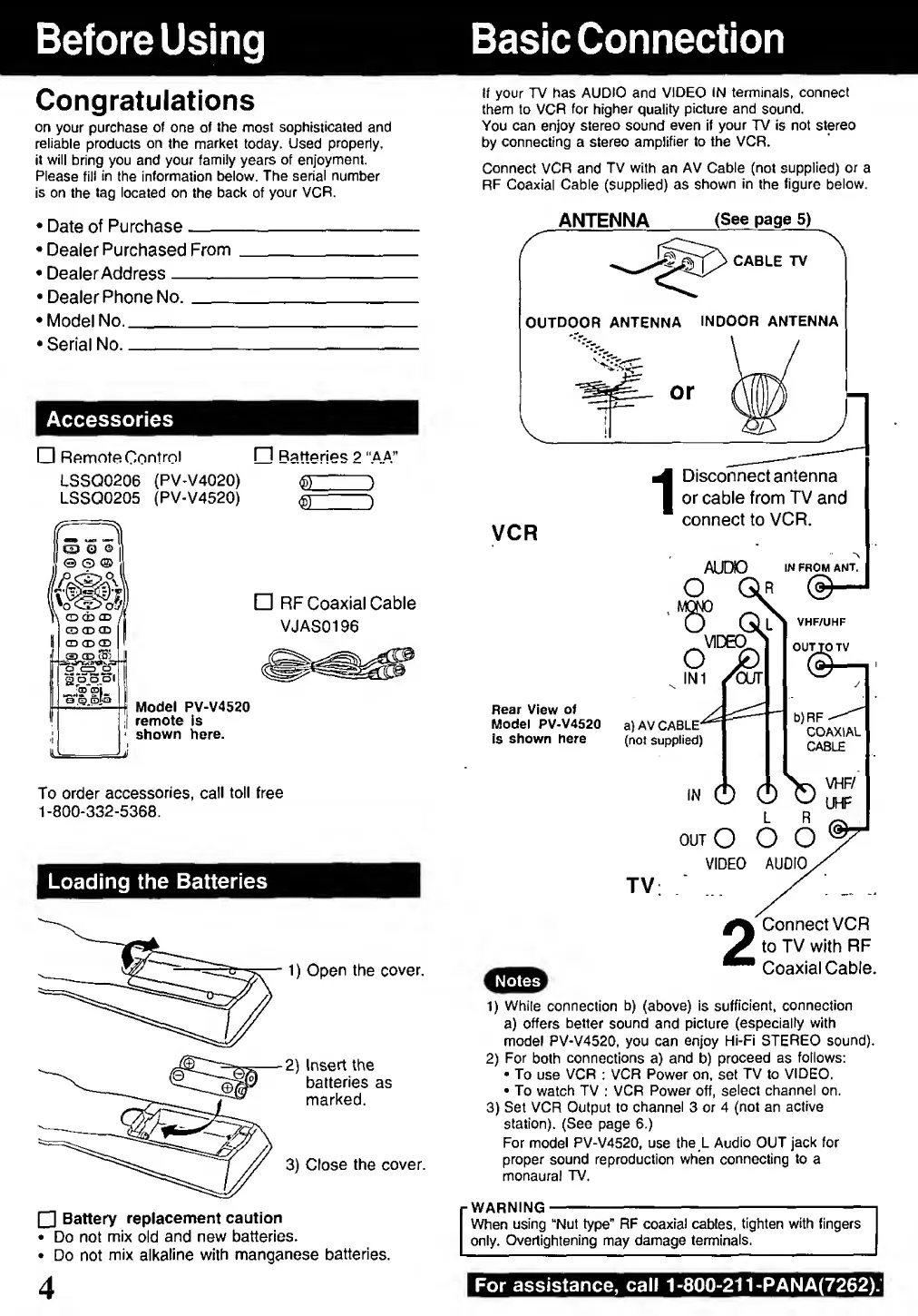

Before Using
Basic Connection
Congratulations
on your purchase of one of the most sophisticated and
reliable products on the market today. Used properly,
it will bring you and your family years of enjoyment.
Please fill in the information below. The serial number
is on the tag located on the back of your VCR.
If your TV has AUDIO and VIDEO IN terminals, connect
them to VCR for higher quality picture and sound.
You can enjoy stereo sound even if your TV is not stereo
by connecting a stereo amplifier to the VCR.
Connect VCR and TV with an AV Cable (not supplied) or a
RF Coaxial Cable (supplied) as shown in the figure below.
• Date of Purchase-
• Dealer Purchased From
• Dealer Address_
• Dealer Phone No._
• Model No_
• Serial No_
Accessories
I I Rfimote Control O Batteries 2 “.A.A”
LSSQ0206 {PV-V4020)
LSSQ0205 (PV-V4520)
"" )
_ )
O RF Coaxial Cable
VJAS0196
Model PV-V4520
remote is
shown here.
To order accessories, call toll free
1-800-332-5368.
Loading the Batteries
open the cover.
Insert the
batteries as
marked.
Close the cover.
0 Battery replacement caution
• Do not mix old and new batteries.
• Do not mix alkaline with manganese batteries.
4
ANTENNA (See page 5)
a) offers better sound and picture (especially with
model PV-V4520, you can enjoy Hi-Fi STEREO sound).
2) For both connections a) and b) proceed as follows:
• To use VCR : VCR Power on, set TV to VIDEO.
• To watch TV ; VCR Power off, select channel on.
3) Set VCR Output to channel 3 or 4 (not an active
station). (See page 6.)
For model PV-V4520, use the L Audio OUT jack for
proper sound reproduction when connecting to a
monaural TV.
r WARNING-
When using “Nut type" RF coaxial cables, tighten with fingers
only. Overtightening may damage terminals.
For assistance, call 1“800“211-PANA(7262).
