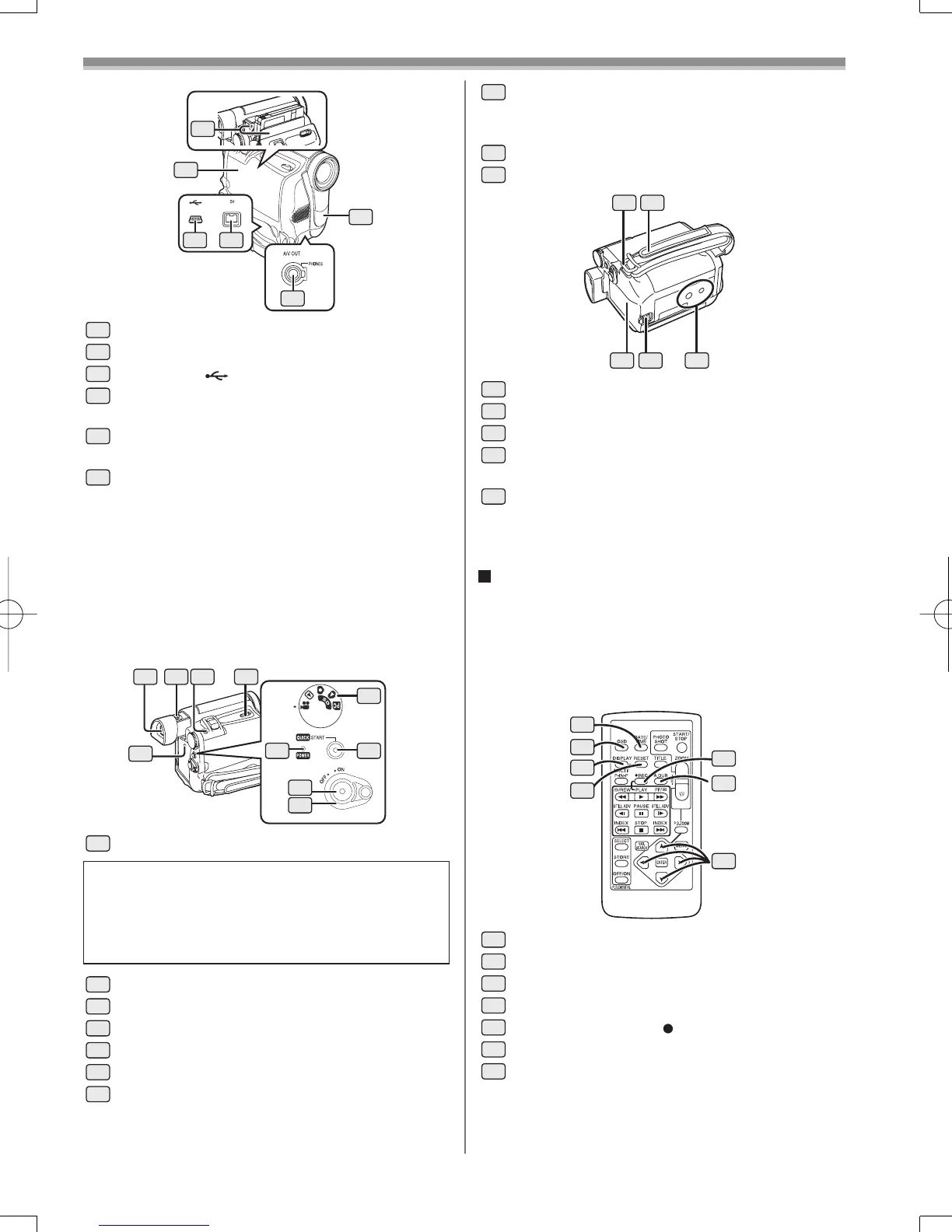

Panasonic Palmcorder MultiCam PV-GS2 - Camcorder Controls (Continued); External Controls Overview

11
Before Use
25
26
27 28
30
29
25
Cassette Holder
26
Cassette Compartment Cover (p. 15)
27
USB Jack [ ] (pp. 45-46, 48, 51)
28
DV Input/Output Terminal (pp. 42-43)
• Connect this to the digital video equipment.
29
White Balance Sensor (p. 28)
Remote Control Sensor (p. 13)
30
Audio-Video Output Jack [AV OUT]
(pp. 40, 42)
Headphone Jack [PHONES]
• Connecting an AV Cable to this jack activates
the Camcorder’s built-in speaker, but
connecting a headphone, etc. deactivates it.
• When connecting the pin plug of the AV Cable
to this jack, plug it in as far as it goes.
• When using headphones, set [INITIAL] >> [AV
JACK] >> [OUT/PHONES].
32
Eyepiece Corrector Knob (p. 16)
33
Photoshot Button [PHOTO SHOT] (p. 23)
34
Cassette Eject Lever [OPEN/EJECT] (p. 15)
35
DC Input Jack [DC IN] (p. 13)
36
Mode Dial (p. 16)
37
Power Lamp [POWER] (p. 16)
31
Viewfi nder (pp. 16, 63)
31 32 33 34
35
36
3837
39
40
Due to limitations in LCD production technology,
there may be some tiny bright or dark spots on
the Viewfi nder screen.
However, this is not a malfunction and does not
affect the recorded picture.
41
Shoulder Strap Holders (p. 15)
42
Grip Belt (p. 14)
43
Battery Holder
44
Battery Eject Switch [BATTERY RELEASE]
(p. 14)
45
Tripod Receptacle
• Used for mounting the Camcorder on an
optional tripod.
41 42
43 44 45
38
Quick Start Recording Button [QUICK
START] (p. 24)
Quick Start Recording Lamp (p. 24)
39
Recording Start/Stop Button (p. 22)
40
Power Switch [OFF/ON] (pp. 16, 22)
Remote Control (Optional)
• Remote Control is not supplied, If you would like
to order, the parts number is LSSQ0411 as a
replacement parts. Please refer to page 69.
Using the wireless Remote Control with the
Camcorder, most of the Camcorder functions can
be operated from a distance.
46
Date/Time Button [DATE/TIME] (p. 55)
47
Indication Output Button [OSD] (p. 40)
48
Display Button [DISPLAY] (p. 55)
49
Reset Button [RESET] (pp. 55, 64-65)
50
Recording Button [ REC] (p. 42)
51
Audio Dubbing Button [A.DUB] (p. 41)
52
Cursor buttons for Variable Speed Search
Function [▲, ▼] (p. 34)
Direction Buttons for Playback Zoom
Function [▲, ▼, ◄, ►] (p. 35)
46
47
48
49
50
51
52
