Panasonic PT-AX100U

Technical Information
42 - ENGLISH
Appendix

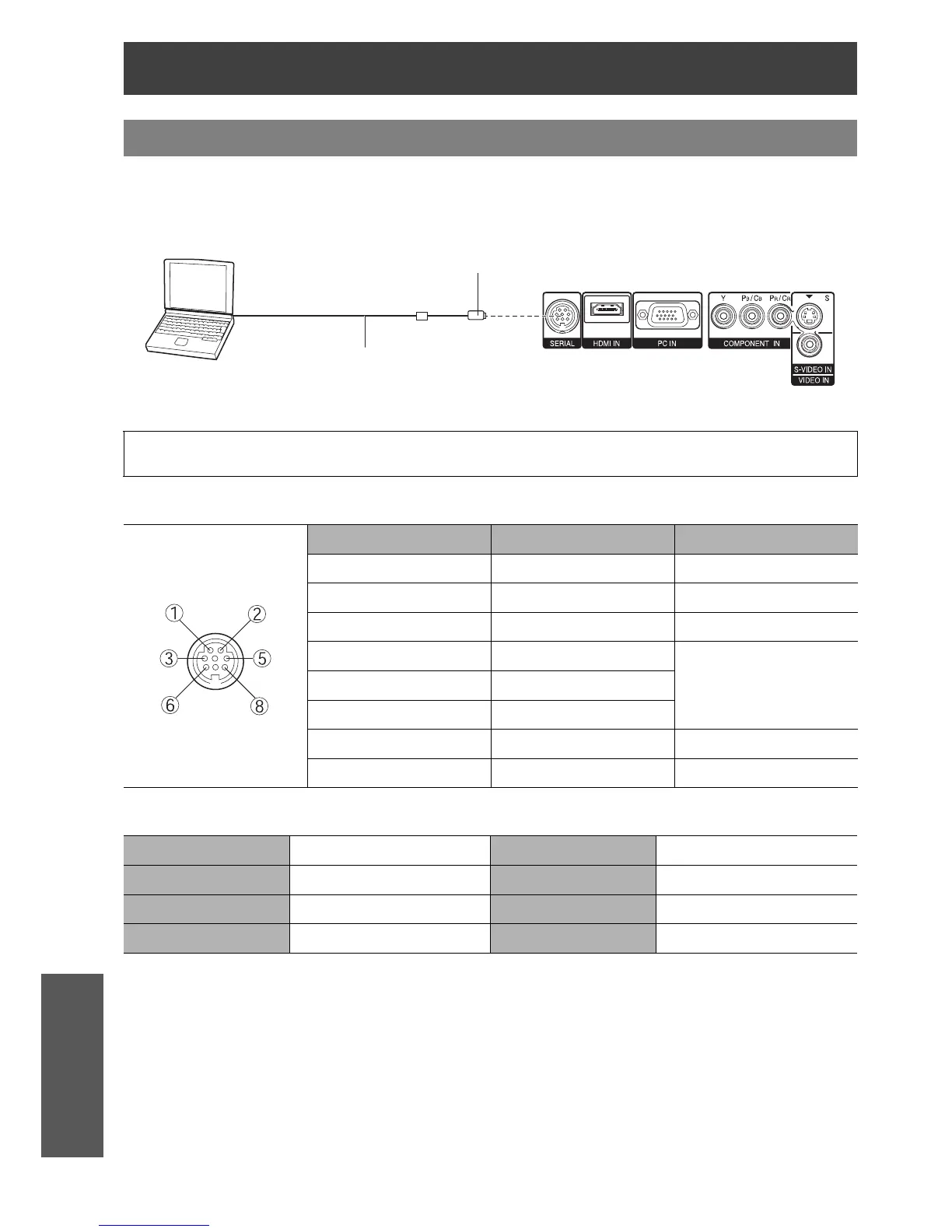

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface
specification, so that the projector can be controlled by a personal computer which is connected to this connecter.
J
Connection
J
Pin assignments and signal names
J
Communication settings
Serial terminal
NOTE:
You must use only an RS-232C Serial Interface Cable with a ferrite core, type ET-ADSER.
Pin No. Signal name Contents
C
RXD Received data
D
GND Earth
E
TXD Transmitted data
A
Connected internally
B
F
G
NC
H
NC
Signal level RS-232C Character length 8bits
Sync. method Asynchronous Stop bit 1bit
Baud rate 9 600 bps X parameter None
Parity None S parameter None
DIN 8 pin (male)
PC
Serial terminal adapter
(ET-ADSER: Optional)
Serial terminal
(male)
