Panasonic PT-LB10E - Location and Function of each Part

ENGLISH-13
Preparation
Location and function of each part
# Projector control panel (page 16)
$ Zoom ring (page 25)
% Focus ring (page 25)
& Security lock
This can be used to connect a commercially-available theft-prevention
cable (manufactured by Kensington). This security lock is compatible with
the Microsaver Security System from Kensington.
' Leg adjuster buttons (L/R) (page 25)
These buttons are used to unlock the front adjustable legs. Press to adjust
the angle of tilt of the projector.
( Lens cover
) Projection lens
* Remote control signal receptor (page 23)
+ Wireless card slot (PT-LB10NTE only) (page 18)
Insert the wireless card into here.

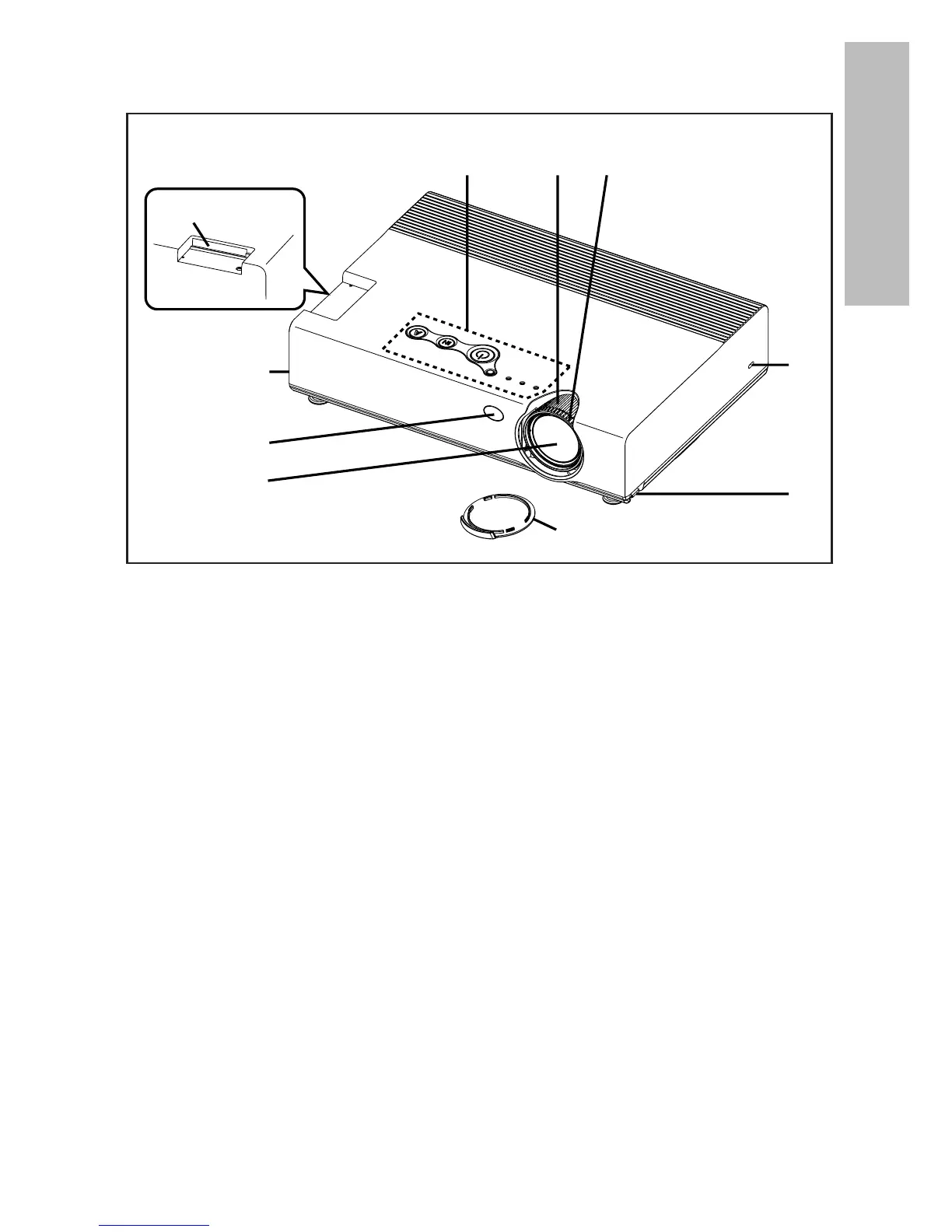

Projector <Top, right and front>
#$%
&
'
(
'
+
*
)
