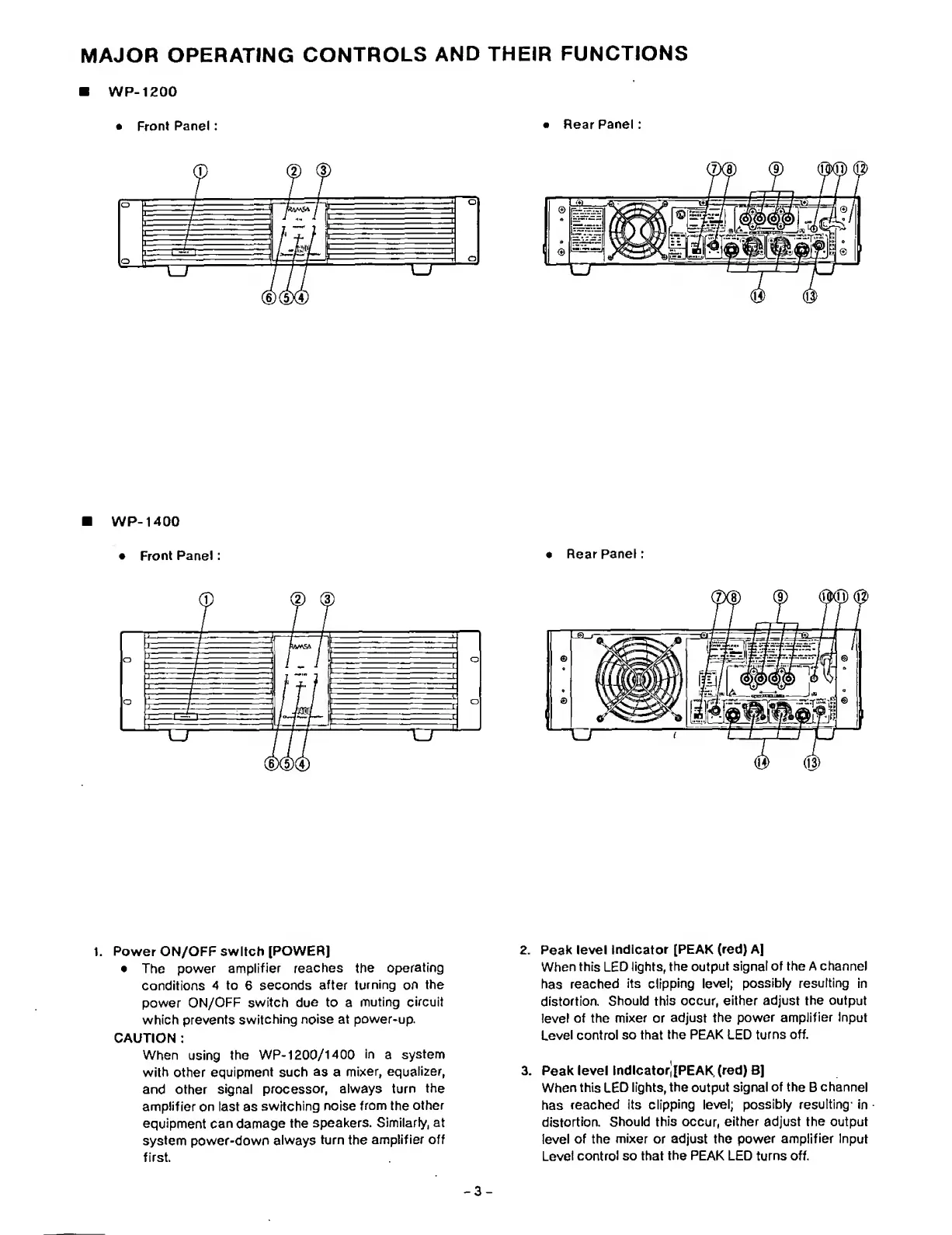

MAJOR
OPERATING
CONTROLS
AND
THEIR
FUNCTIONS
■
WP-1200
•
Front
Panel:
■
WP-1400
•
Front
Panel:
1.
P
ower
ON/OFF
switch
[POWER]
•
The
power
amplifier
reaches
the
operating
conditions
4
to
6
seconds
after
turning
on
the
power
ON/OFF
switch
due
to
a
muting
circuit
which
prevents
switching
noise
at
power-up.
CAUTION
:
When
using
the
WP-1200/1400
in
a
system
with
other
equipment
such
as
a
mixer,
equalizer,
and
other
signal
processor,
always
turn
the
amplifier
on
last
as
switching
noise
from
the
other
equipment
can
damage
the
speakers.
Similarly,
at
system
power-down
always
turn
the
amplifier
off
first,
•
Rear
Panel:
2.
Peak
level
Indicator
[PEAK
(red)
A]
When
this
LED
lights,
the
output
signal
of
the
A
channel
has
reached
its
clipping
level;
possibly
resulting
in
distortion.
Should
this
occur,
either
adjust
the
output
level
of
the
mixer
or
adjust
the
power
amplifier
Input
Level
control
so
that
the
PEAK
LED
turns
off.
3.
Peak
level
indicator|[PEAK,
(red)
B]
When
this
LED
lights,
the
output
signal
of
the
B
channel
has
reached
its
clipping
level;
possibly
resulting
in
distortion.
Should
this
occur,
either
adjust
the
output
level
of
the
mixer
or
adjust
the
power
amplifier
Input
Level
control
so
that
the
PEAK
LED
turns
off.
3
