Panasonic RAMSA WP-1400 - SPECIFICATIONS

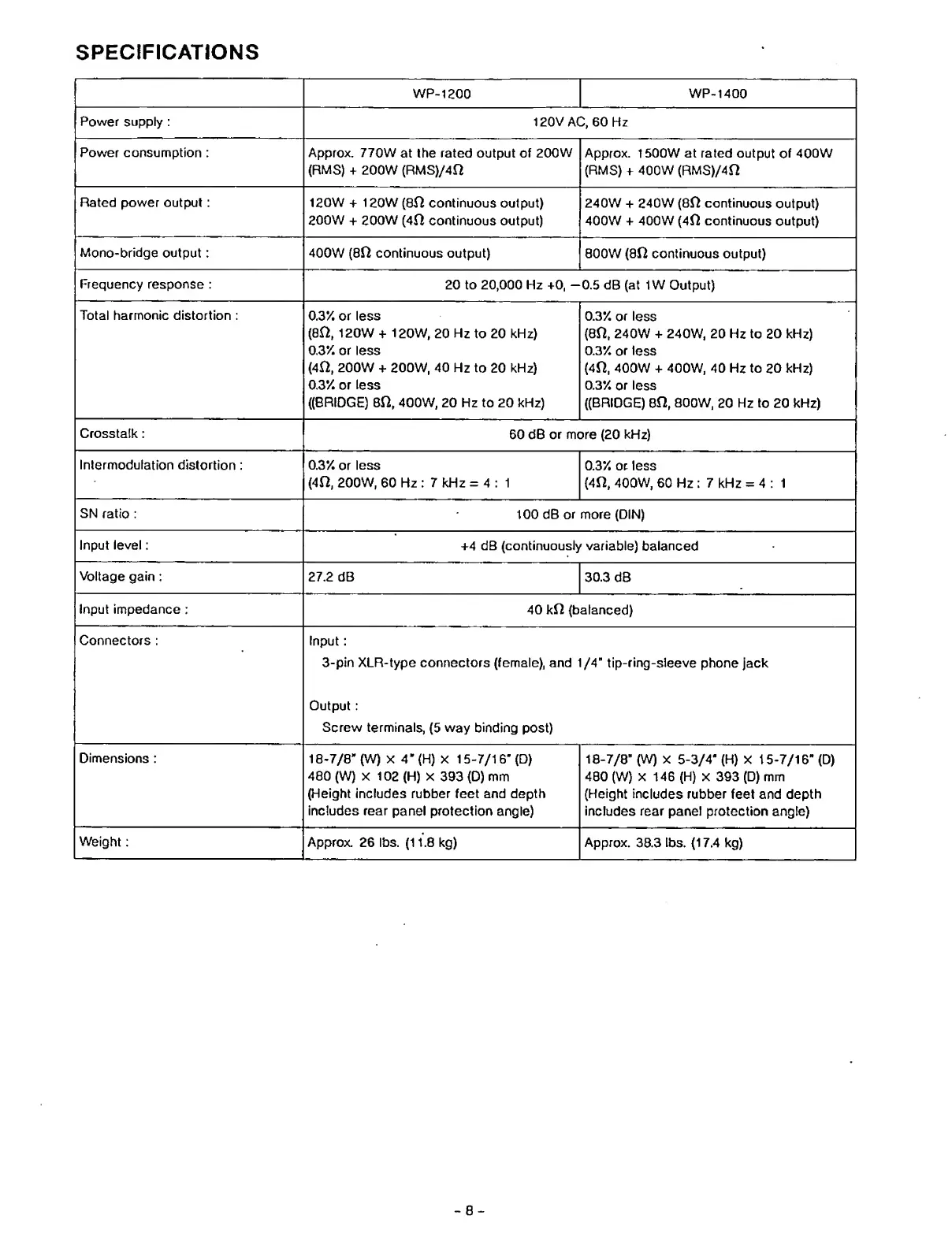

SPECIFICATIONS
WP-1200 WP-1400
Power supply :
120V AC, 60 Hz
Power consumption :
Approx. 770W at the rated output of 200W
(RMS) + 200 W (RMS)/4n
Approx. 1500W at rated output of 400W
(RMS) + 400W (RMS)/4ft
Rated power output:
120W + 120W (8fi continuous output)
200W + 200W (4ft continuous output)
240W + 240W (8ft continuous output)
400W + 400W (4ft continuous output)
Mono-bridge output: 400W (8ft continuous output)
800W (8ft continuous output)
Frequency response :
20 to 20,000 Hz +0, -
0.5 dB (at 1W Output)
Total harmonic distortion :
0.3% or less
(8ft, 120W + 120W, 20 Hz to 20 kHz)
0.3% or less
(4ft, 200W + 200W, 40 Hz to 20 kHz)
0.3% or less
((BRIDGE) 8ft, 400W, 20 Hz to 20 kHz)
0.3% or less
(8ft, 240W + 240W, 20 Hz to 20 kHz)
0.3% or less
(4ft, 400W + 400W, 40 Hz to 20 kHz)
0.3% or less
((BRIDGE) 8ft, 800W. 20 Hz to 20 kHz)
Crosstalk:
60 dB or more (20 kHz)
Intermodulation distortion:
0.3% or less
(4ft, 200W, 60 Hz : 7 kHz = 4 : 1
0.3% or less
(4ft, 400W, 60 Hz : 7 kHz = 4 : 1
SN ratio :
100 dB or more (DIN)
Input level;
+4 dB (continuously variable) balanced
Voltage gain;
27.2 dB
30.3 dB
Input impedance :
40 kft (balanced)
Connectors :
Input:
3-pin XLR-type connectors (female), and 1/4” tip-ring-sleeve phone jack
Output;
Screw terminals, (5 way binding post)
Dimensions :
18-7/8" (W) X 4"(H) X 15-7/16* (D)
480 (W) X 102 (H) X 393 (D) mm
(Height includes rubber feet and depth
includes rear panel protection angle)
18-7/8" (W) X 5-3/4' (H) X 15-7/16' (D)
480 (W) X 146 (H) X 393 (D) mm
(Height includes rubber feet and depth
includes rear panel protection angle)
Weight:
Approx. 26 lbs. (11.8 kg)
Approx. 38.3 lbs. (17.4 kg)
- 8 *
