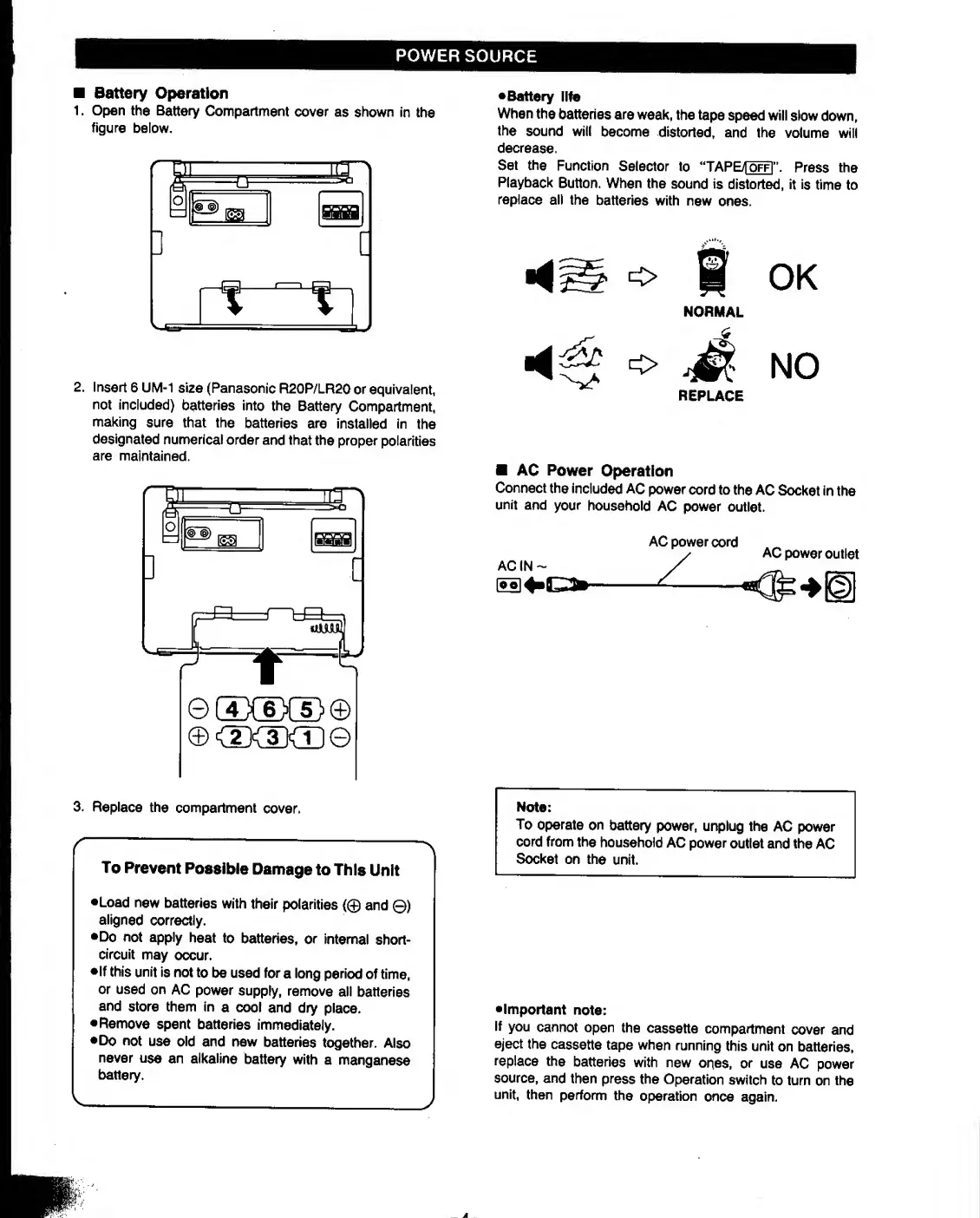

POWER SOURCE
■ Battery Operation
1. O pen the Battery Compartment cover as shown in the
figure below.
“J
ID ^
nnna
D P
■ 1^- r 1 —|
2. I n sert 6 UM-1 size (Panasonic R20P/LR20 or equivalent,
not included) batteries into the Battery Compartment,
making sure that the batteries are installed in the
designated numerical order and that the proper polarities
are maintained.
3. R eplace the compartment cover.
To Prevent Possible Damage to This Unit
•Load new batteries with their polarities (© and ©)
aligned correctly.
•Do not apply heat to batteries, or internal short-
circuit may occur.
•If this unit is not to be used for a long period of time,
or used on AC power supply, remove all batteries
and store them in a cool and dry place.
•Remove spent batteries immediately.
•Do not use old and new batteries together. Also
never use an alkaline battery with a manganese
battery.
•Battery life
When the batteries are weak, the tape speed will slow down,
the sound will become distorted, and the volume will
decrease.
Set the Function Selector to “TAPD ToffT . Press the
Playback Button. When the sound is distorted, it is time to
replace all the batteries with new ones.
4Ws o
NORMAL
REPLACE
OK
NO
■ AC Power Operation
Connect the included AC power cord to the AC Socket in the
unit and your household AC power outlet.
AC IN ~
AC power cord
AC power outlet
Note:
To operate on battery power, unplug the AC power
cord from the household AC power outlet and the AC
Socket on the unit.
•Important note:
If you cannot open the cassette compartment cover and
eject the cassette tape when running this unit on batteries,
replace the batteries with new ones, or use AC power
source, and then press the Operation switch to turn on the
unit, then perform the operation once again.
