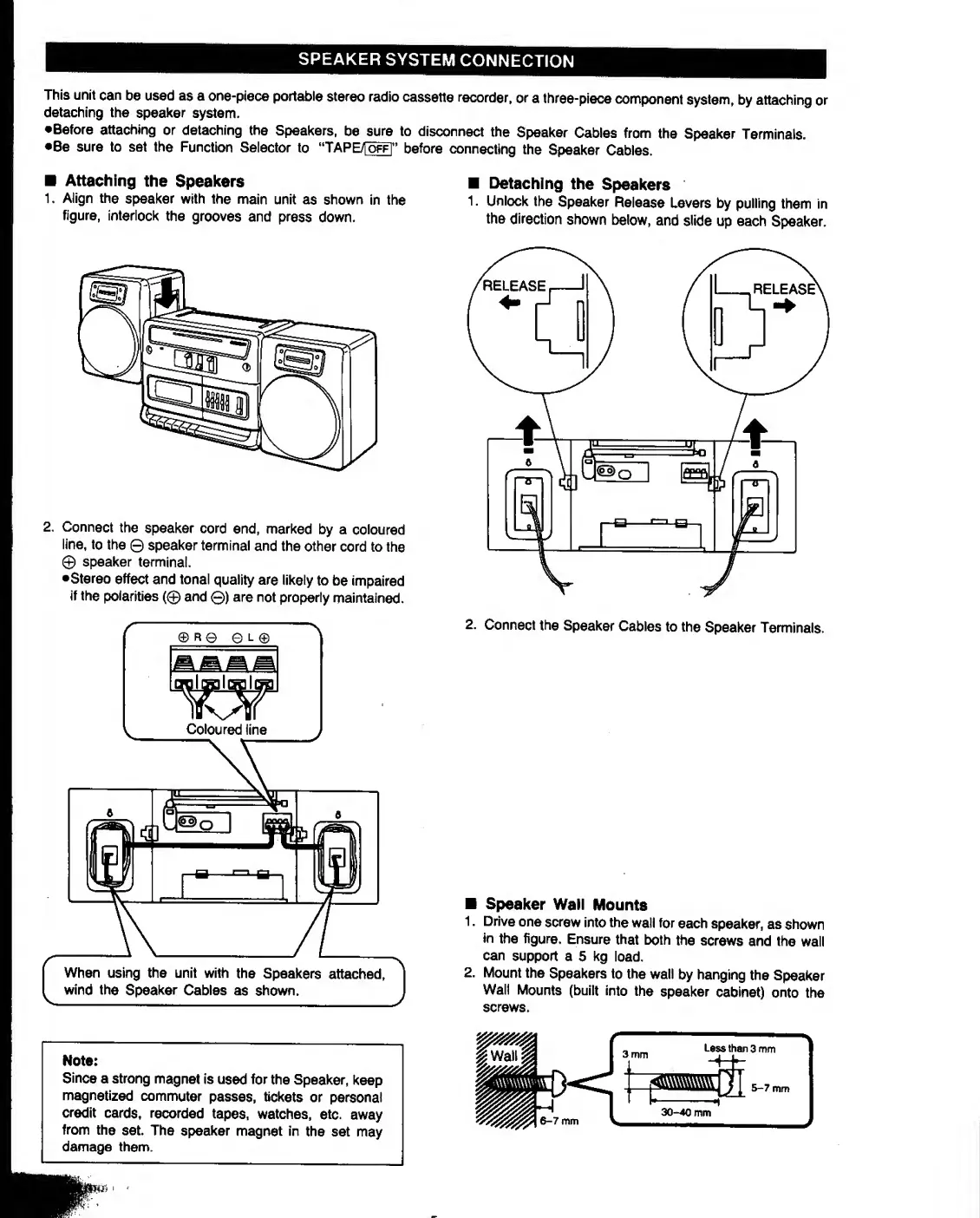

SPEAKER SYSTEM CONNECTION
This unit can be used as a one-piece portable stereo radio cassette recorder, or a three-piece component system, by attaching or
detaching the speaker system.
•Before attaching or detaching the Speakers, be sure to disconnect the Speaker Cables from the Speaker Terminals.
•Be sure to set the Function Selector to “TAPE/ToffT* before connecting the Speaker Cables.
■ Attaching the Speakers
1. Align the speaker with the main unit as shown in the
figure, interlock the grooves and press down.
2. Connect the speaker cord end, marked by a coloured
line, to the © speaker terminal and the other cord to the
© speaker terminal.
•Stereo effect and tonal quality are likely to be impaired
if the polarities (© and ©) are not properly maintained.
Note:
Since a strong magnet is used for the Speaker, keep
magnetized commuter passes, tickets or personal
credit cards, recorded tapes, watches, etc. away
from the set The speaker magnet in the set may
damage them.
■ Detaching the Speakers
1. Unlock the Speaker Release Levers by pulling them in
the direction shown below, and slide up each Speaker.
■ Speaker Wail Mounts
1. Drive one screw into the wall for each speaker, as shown
in the figure. Ensure that both the screws and the wall
can support a 5 kg load.
2. Mount the Speakers to the wall by hanging the Speaker
Wall Mounts (built into the speaker cabinet) onto the
screws.
