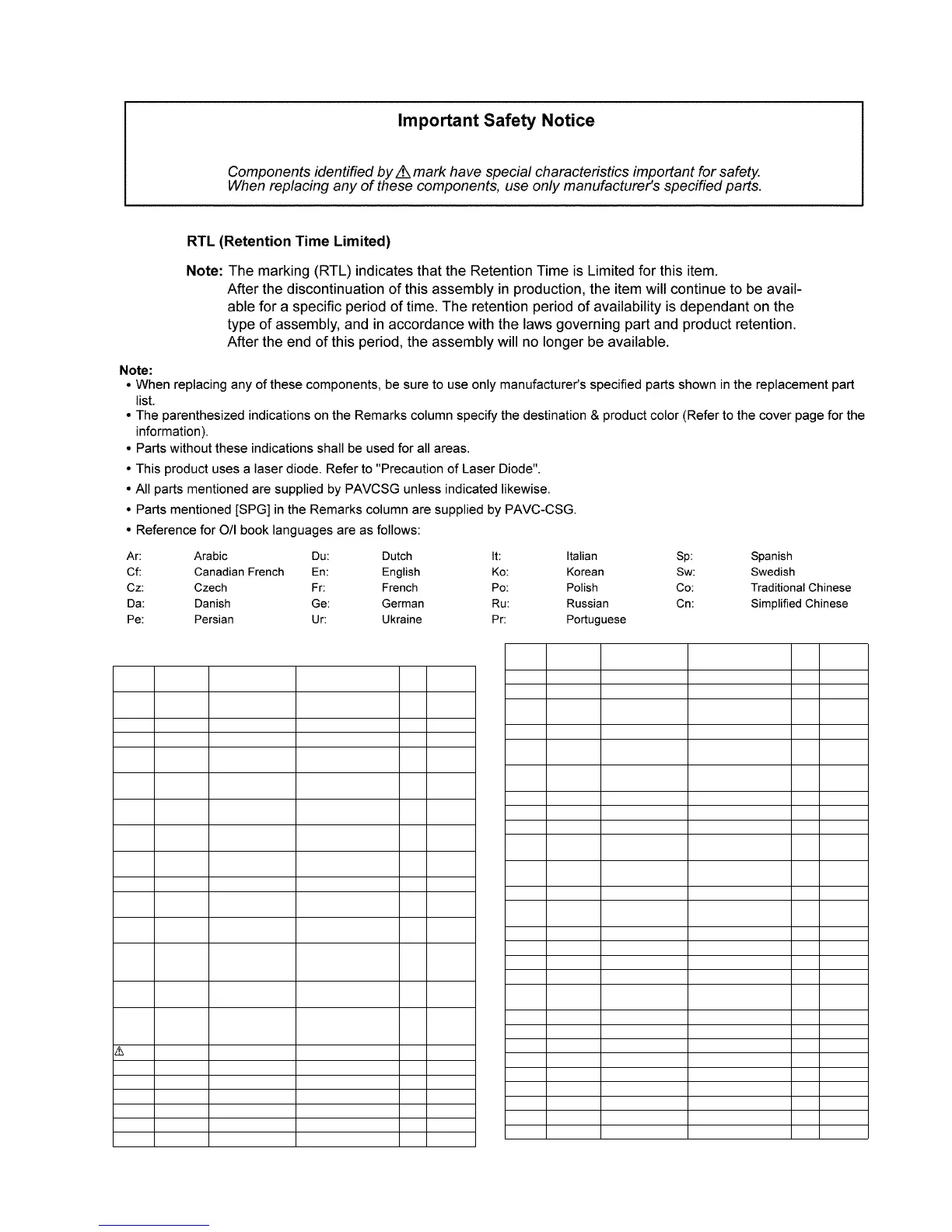

Panasonic RX-D55EE - Replacement Parts Lists; Mechanical Replacement Parts List

29
8.1.4. Mechanical Repacement Parts List
Safety Ref. No. Part No. Part Name &
Description
QTY Remarks
CABINET AND
CHASSIS
1 RASN8P055-G SPEAKER 2
2 REXN0082-1 4P CABLE WIRE
(MAIN-PANEL)
1
3 REEN0027 22P FFC (MAIN-
CD)
1
5 REXN0080 10P CABLE WIRE
(MAIN-PANEL)
1
6 REXN0081-1 8P CABLE WIRE
(MAIN-POWER)
1
7 REXN0084 10P CABLE
WIRE(MAIN-DECK)
1
8 RXGX0002 DAMPER GEAR 1
9 RWJ0302060KD 2P WIRE (DECK-
MOTOR)
1
10 RWJ0202095KK 2P CABLE WIRE
(PANEL-STANDBY)
1
11 RWJ0202155KK 2P CABEL WIRE
(PANEL-SPEAKER
UNIT)
2
12 RWJ0203096KK 3P CABLE WIRE
(PANEL-VOLUME)
1
13 RWJ0204222KK 4P CABLE WIRE
(BATT (1) -
POWER)
1
14 RKHN0005B-H HANDLE 1
15 RKFN0020-K CD LID 1
16 RHDX03001 SCREW 2
17 RMVN0066 SAFETY COVER 1
18 RGUN0055-K MAIN BUTTON 1
19 RGUN0056-K SOUND EQ BUTTON 1
20 RGUN0058-K POWER BUTTON 1
21 RGUN0059-K VOLUME BUTTON 1
22 RGZN0008B-H MECHA BUTTON 1
23 SUX102A-1 MECHA BUTTON
HOLDING
1
24 XEARR210CA-C ROD ANTENNA 1
25 RFKGXD55EG-K FRONT CABINET
ASS'Y
1
26 RYQN0009L-S BOTTOM CABINET
ASS'Y
1
26-1 RKKN0007B-S BATTERY COVER 1
26-2 RMGX0022 RUBBER LEG 4
26-3 RJCN0010-1 BATTERY TERMINAL 1
27 RYQN0008B-S TOP CABINET
ASS'Y
1
28 RFKLXD55EG-K CASSETTE LID
ASS'Y
1
29 RJRN0017 ANTENNA TERMINAL 1
30 RKFN0019B-S MECHA BOTTOM
COVER
1
34 RGLN0009 LIGHTING PIECE 1
35 RGLN0010 DIFFUSER SHEET 1
36 RGLN0011 REFLECTOR SHEET 1
37 RJCN0011-1 BATTERY SPRING 1
38 RMAN0051 TRANSFORMER
BRACKET
1
40 XYN3+F12FJ SCREW 1
41 XTV3+10GFJ SCREW 24
42 XTV3+16GFJ SCREW 12
43 XTB26+10GFJ SCREW 7
44 XTW26+10SFJ SCREW 4
45 RMKN0012-W LCD HOLDER 1
46 RMEN0009 CD LID SPRING 1
47 XTW3+W8TFJ SCREW 2
48 XTN2+4FFJ SCREW 1
Safety Ref. No. Part No. Part Name &
Description
QTY Remarks
