Panasonic RX-D55EE - Electrical Replacement Parts List

31

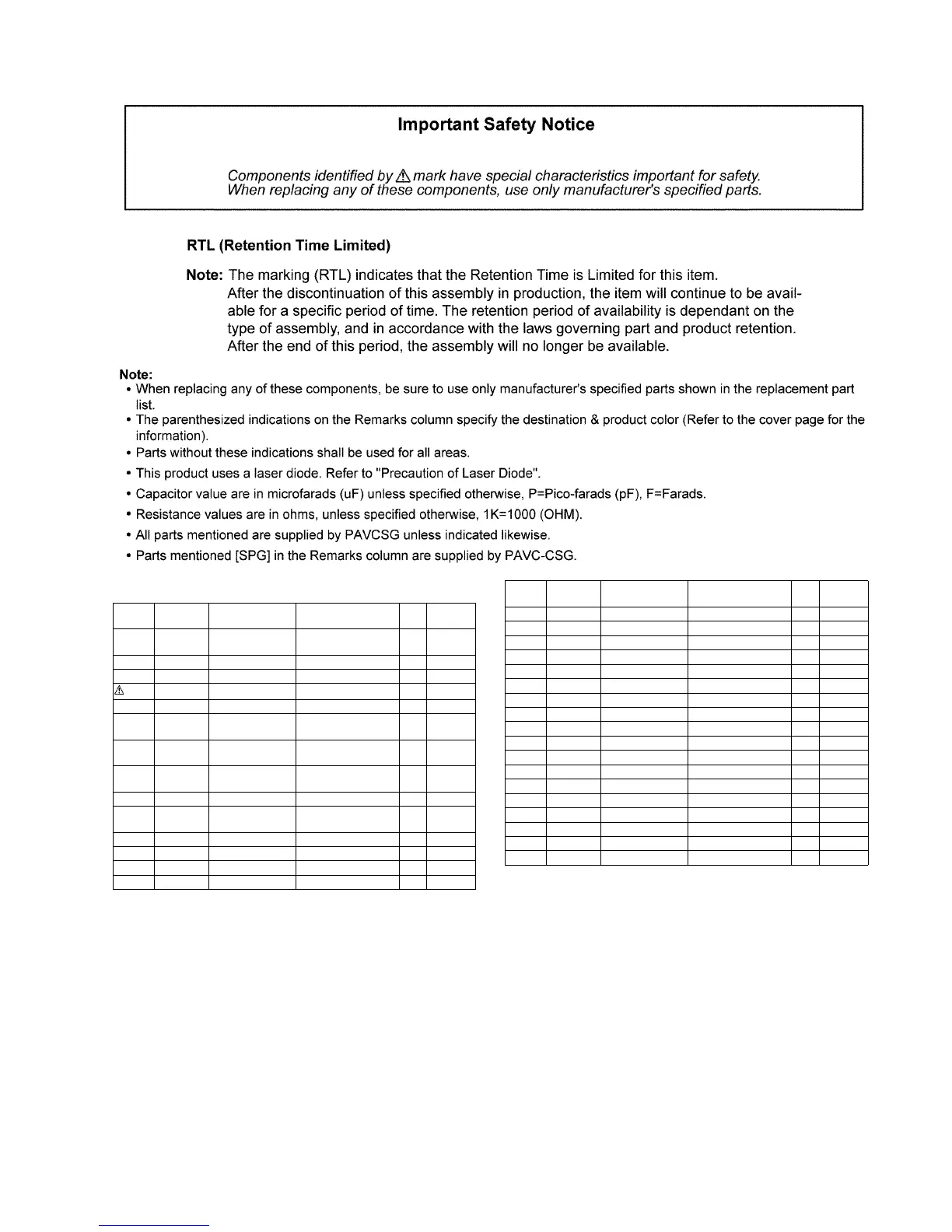

8.2. Electrical Replacement Parts List
FLE1005
Safety Ref. No. Part No. Part Name &
Description
QTY Remarks
PRINTED CIRCUIT
BOARDS
PCB1 REPNT0065BA MAIN P.C.B. 1 (RTL)
PCB3 REPNT0063H POWER P.C.B. 1 (RTL)
PCB6 REPNT0065BB DECK P.C.B. 1 (RTL)
PCB9 REPNT0063H BATTERY (1)
P.C.B.
1 (RTL)
PCB10 REPNT0063H BATTERY (2)
P.C.B.
1 (RTL)
PCB11 REPNT0065BC MUSIC PORT
P.C.B.
1 (RTL)
INTEGRATED CIR-
CUITS
IC4100 C0CBABE00040 IC 1
DIODES
D5927 B0ACCK000005 DIODE 1
D5928 B0EAKM000117 DIODE 1
D5929 B0EAKM000117 DIODE 1
D5930 B0EAKM000117 DIODE 1
D5931 B0EAKM000117 DIODE 1
RESISTORS
R2115 ERJ3GEYF224V 220K 1/10W 1
R5910 ERJ3GEYJ473V 47K 1/10W 1
R5917 ERJ3GEYJ103V 10K 1/10W 1 POWER
R5938 ERJ3GEYF154V 150K 1/10W 1
CAPACITORS
C4111 F2A1E471A121 470uF 25V 1
C5908 ERJ3GEY0R00V 0 1/10W 1
Safety Ref. No. Part No. Part Name &
Description
QTY Remarks
