1
1-180
L
N
U1
U2
R1
R2
L1
L2
L3
N
U1
U2
2
SG
1
SG
L
N
U1
U2
R1
R2
L
N
U1
U2
2
SG
1
SG

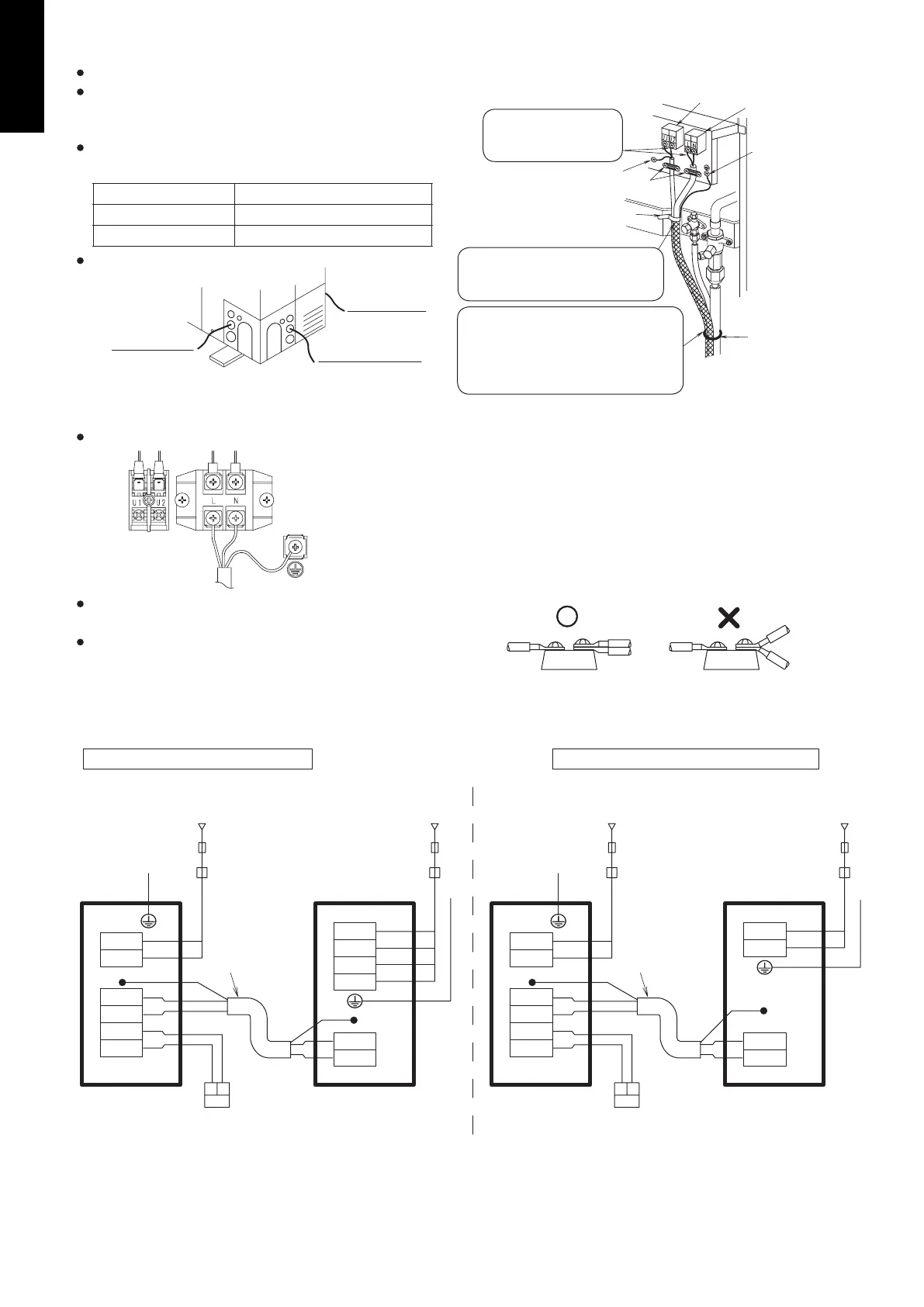

Outdoor unit Outdoor unit
Circuit breaker Circuit breaker
Circuit breaker
Circuit breaker
Power supply (220/230/240V~) Power supply (380/400/415V 3N~) Power supply (220/230/240V~) Power supply (220/230/240V~)
Earth Earth
Earth
Earth
Wired remote
controller
Wired remote
controller
Indoor unit
Indoor unit
Control cable Control cable
Switch
Switch
Switch
Switch
OUTDOOR UNIT/3-PHASE MODEL
OUTDOOR UNIT/SINGLE-PHASE MODEL
SG
Use a round type terminal with an insulation sleeve for connecting to the terminal block.
Use the appropriate screwdriver for tightening the terminal screws.
Small sized screwdriver damages the head of the screw and
cannot tighten it properly.
There is risk of damaging the screw if the terminal screw is
over tightened. Tighten with the appropriate torque.
The earth lead wire shall be longer than other lead wires as shown in the
figure for electrical safety in case it slips out of the cord from the anchorage.
Seal wiring holes after wiring using included protection
(other holes are for connecting conduit pipe)bush.
Back direction
Sideways direction
Front direction
Insulate the terminal
section with insulation
sleeves.
Cord clamp
Cord clamp
Control
terminal block
Power supply
terminal block
Earth lead wire
Tying band
(Standard
accessories)
Screw diameter name Tightening torque N•m (kgf•m)
M4 1.57 ~ 1.96 (0.16 ~ 0.2)
M5 1.96 ~ 2.45 (0.2 ~ 0.25)
Firmly secure the power supply
cable, the internal/external
connections and earth wire.
Tie the insulation pipes so that the
power supply cable, control wires,
and earth lead wire do not come into
contact with the compressor and/or
the exposed pipes.
Direction to pull out wires
Earth lead wire set up
Be sure to connect the wires correctly to terminal board with
connecting the crimp type ring terminal to the wires.
If connecting two separate wires to a single crimped terminal,
place the two crimped terminal wires together as shown in
Fig. A. (If the arrangement shown in Fig. B is used, poor contacts
or contact damage may result.)
Fig. A (OK) Fig. B (not OK)
