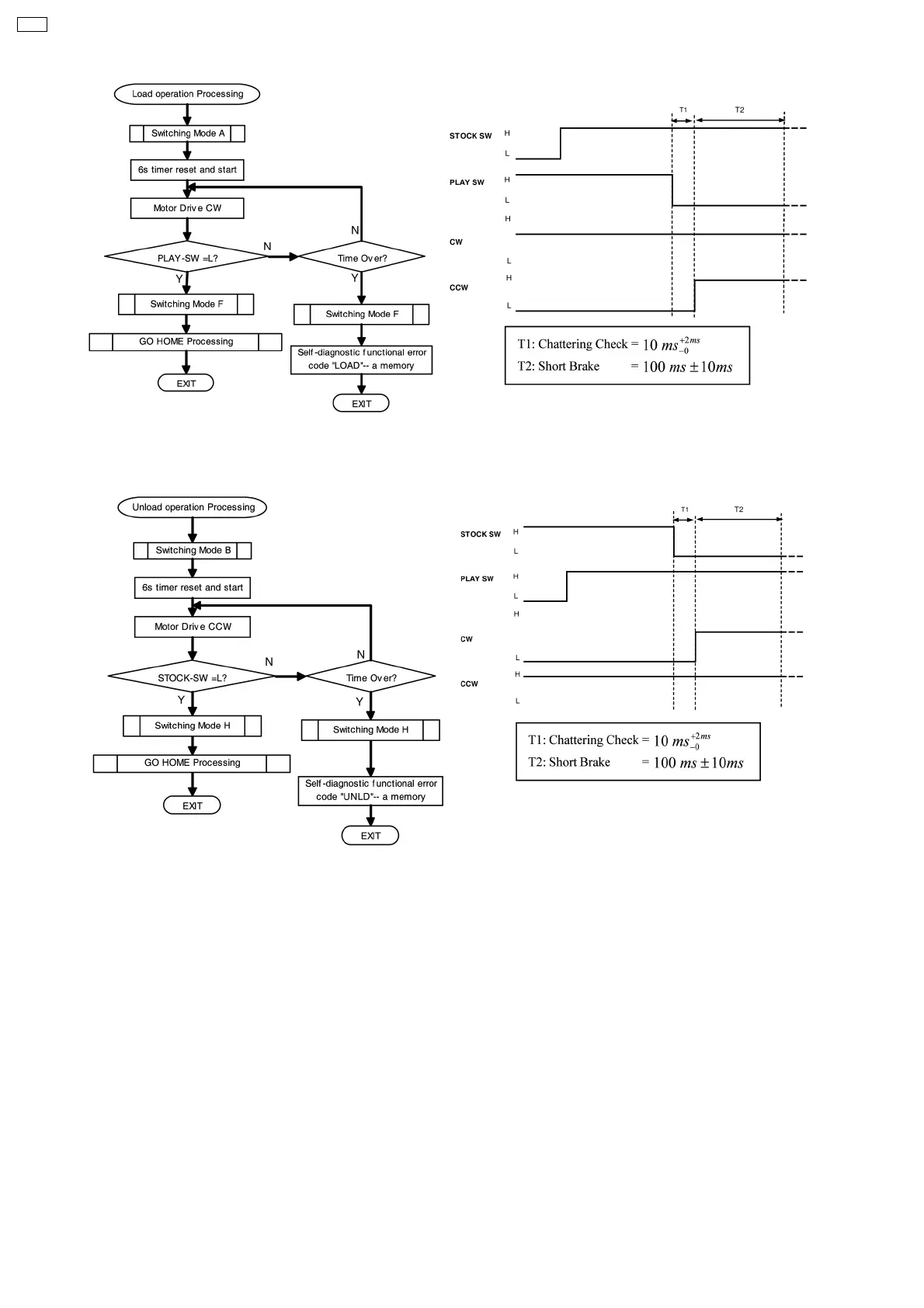

The flow chart and timing chart for unload a disc from PLAY position to STOCK position is as below:
3.12. Selection of Tray by Moving UD base Up/down
·
Tray alignment & selection is achieved by UD (up/down) movement, whereas the Mechanism vertically aligns itself to the
selected tray to be driven to PLAY position or STOCK position. The upper most tray is defined as tray 1 and bottom most tray
is defined as tray 5. Counting is achieved by resetting during initialization to the TOP-SW (tray 1) and counting the signal
change by UD-SENSOR.
·
Below are the timing chart for UD base tray selection Up/down:
26
CRS1
