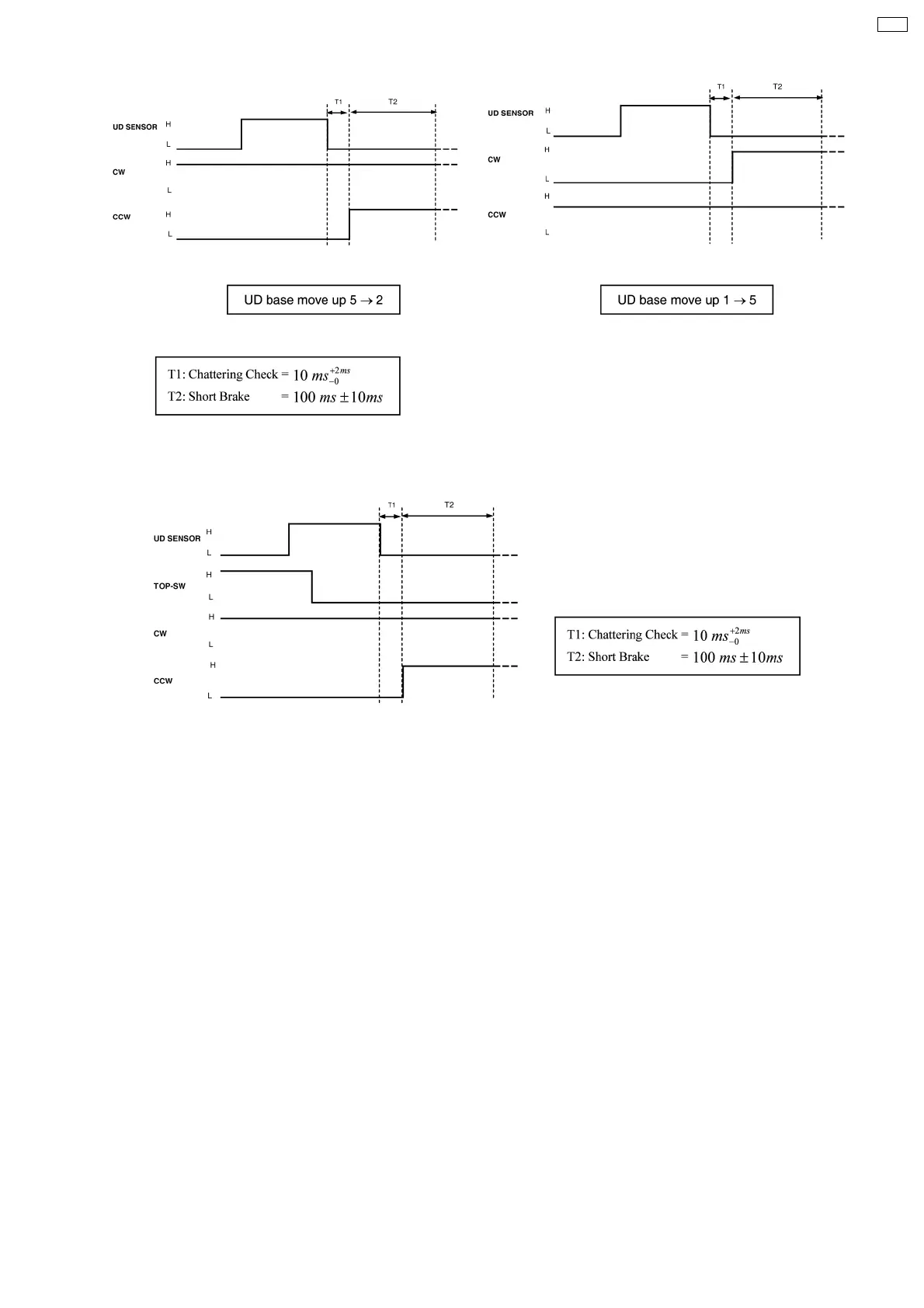

Tray 1 is the reset position for UD base up/down processing. The position should be unique; a TOP-SW is use in this purpose.
·
Below is the flow chart for UD selection processing.
27
CRS1
