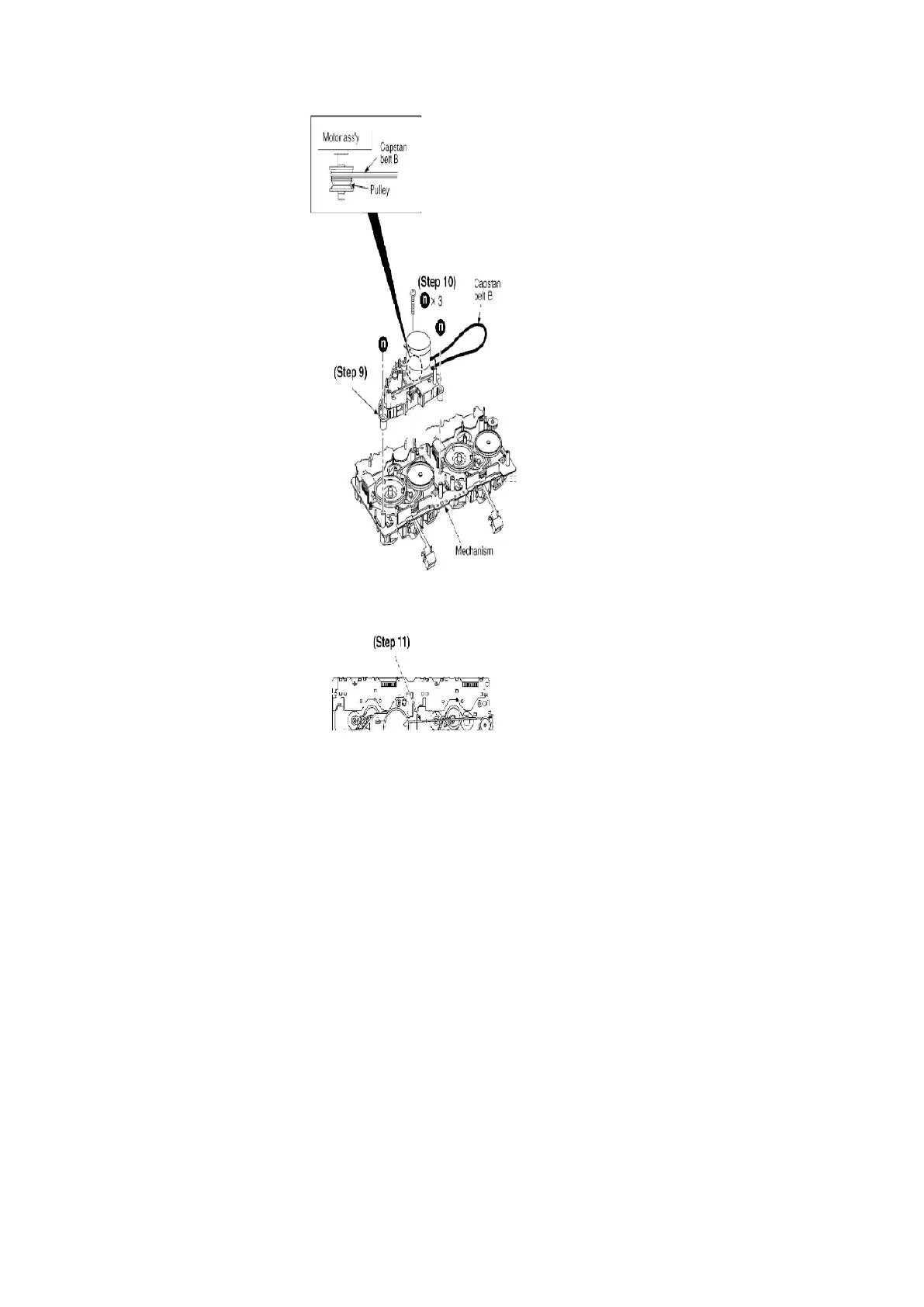

Step 10 Install 3 screws.
Step 11 Put the capstan belt B as shown below.
Step 12 Put the capstan belt A on the motor ass’y pulley.
10.17. Replacement for cassette lid
- Follow the (Step 1) - (Step 2) of Item 10.4 - Disassembly of Top Cabinet
Step 1 Lift up the lever upward, open the cassette deck. (For DECK1 and DECK2)
58
To Next Page
