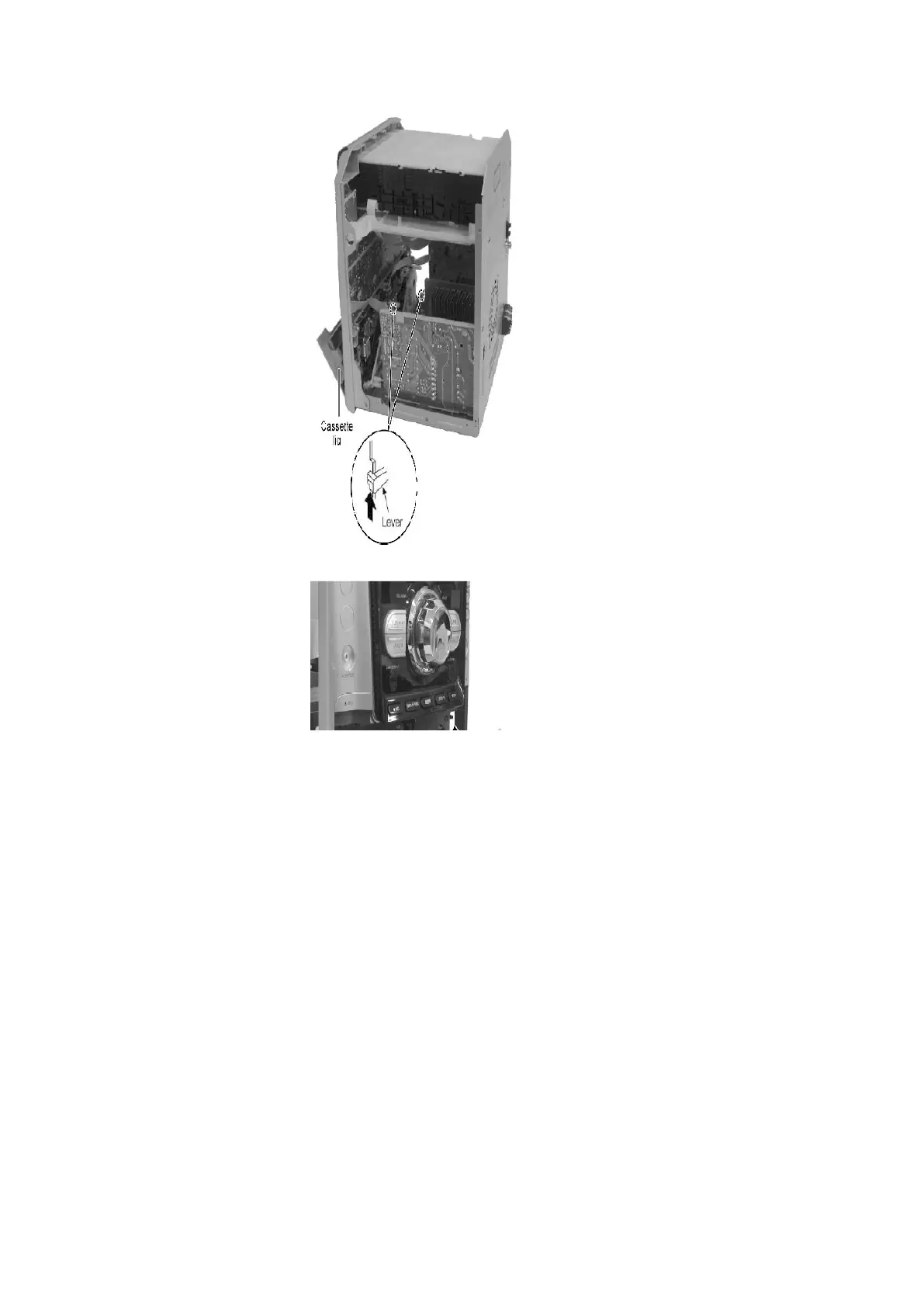

Step 2 Push up the cassette lid (L/R) in the direction of arrow. (For DECK1 and DECK2).
10.18. Rectification for tape jam problem
- Follow the (Step 1) - (Step 2) of Item 10.4 - Disassembly of Top Cabinet
Step 1 If a cassette tape cannot be removed from the deck (the tape is caught by the capstan or pinch
roller during playback or recording), rotate the flywheel F in the direction of the arrow to remove it.
59
To Next Page
