Step 2 Detach 9P FFC at the connector (CN51) on Tuner
P. C. B ..
Step 3 Remove Tuner P.C.B..
9.5. Disassembly of Front Panel
Assembly
• Refer to “Disassembly of Top Cabinet”.

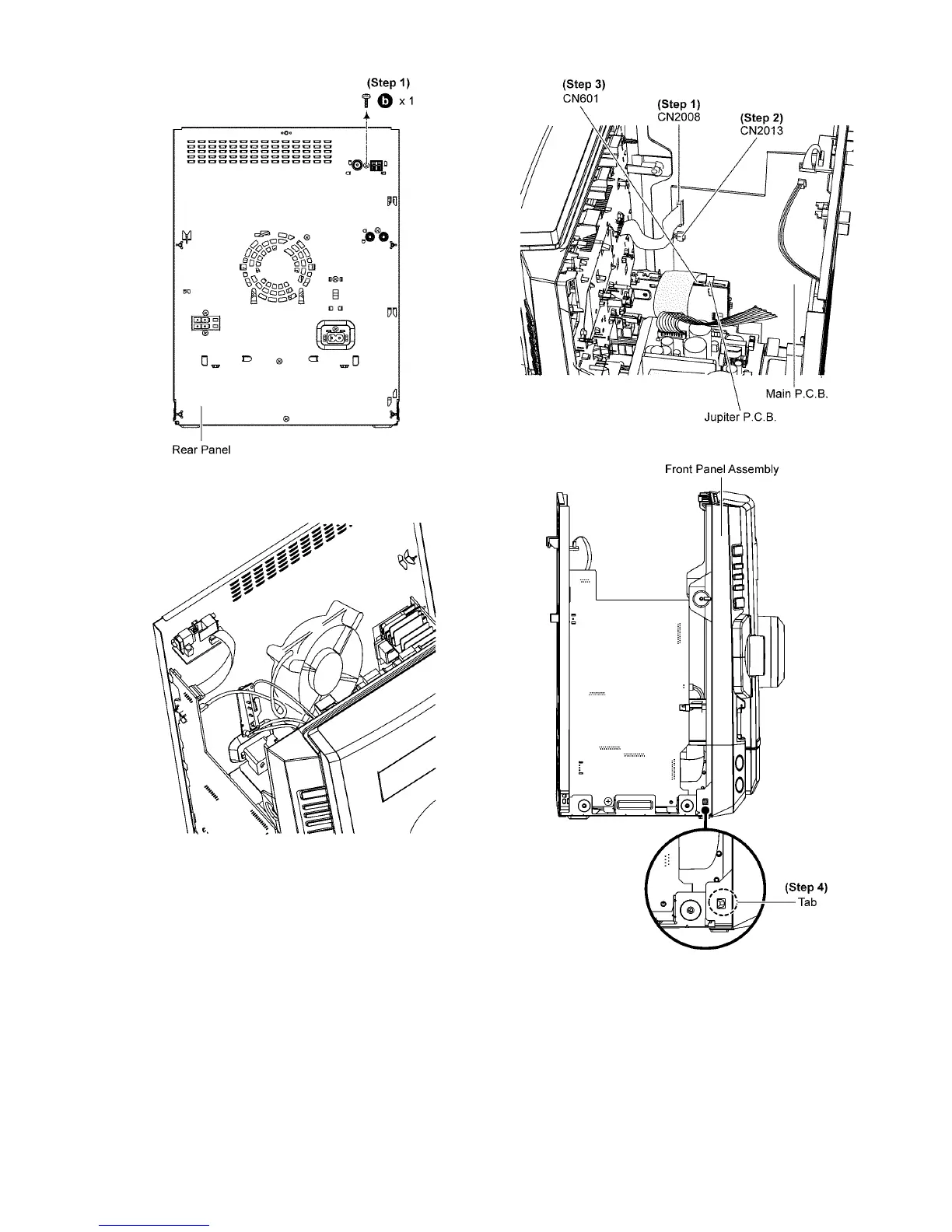

Step 1 Detach 32P FFC at the connector (CN2008) on Main
P. C. B .
Step 2 Detach 2P wire at the connector (CN2013) on Main
P. C. B .
Step 3 Detach 30P FFC at the connector (CN601) on Jupiter
P. C. B .
Step 4 Release tab at left side of Front Panel Assembly.
Step 5 Release tab at bottom.
