Panasonic SA-AKX30PH - SMPS PCB Disassembly and Replacement

44
9.16. Disassembly of SMPS P.C.B.
• Refer to “Disassembly of Top Cabinet.”.
• Refer to “Disassembly of Front Panel Assembly”.
• Refer to “Disassembly of D-Amp P.C.B.”.

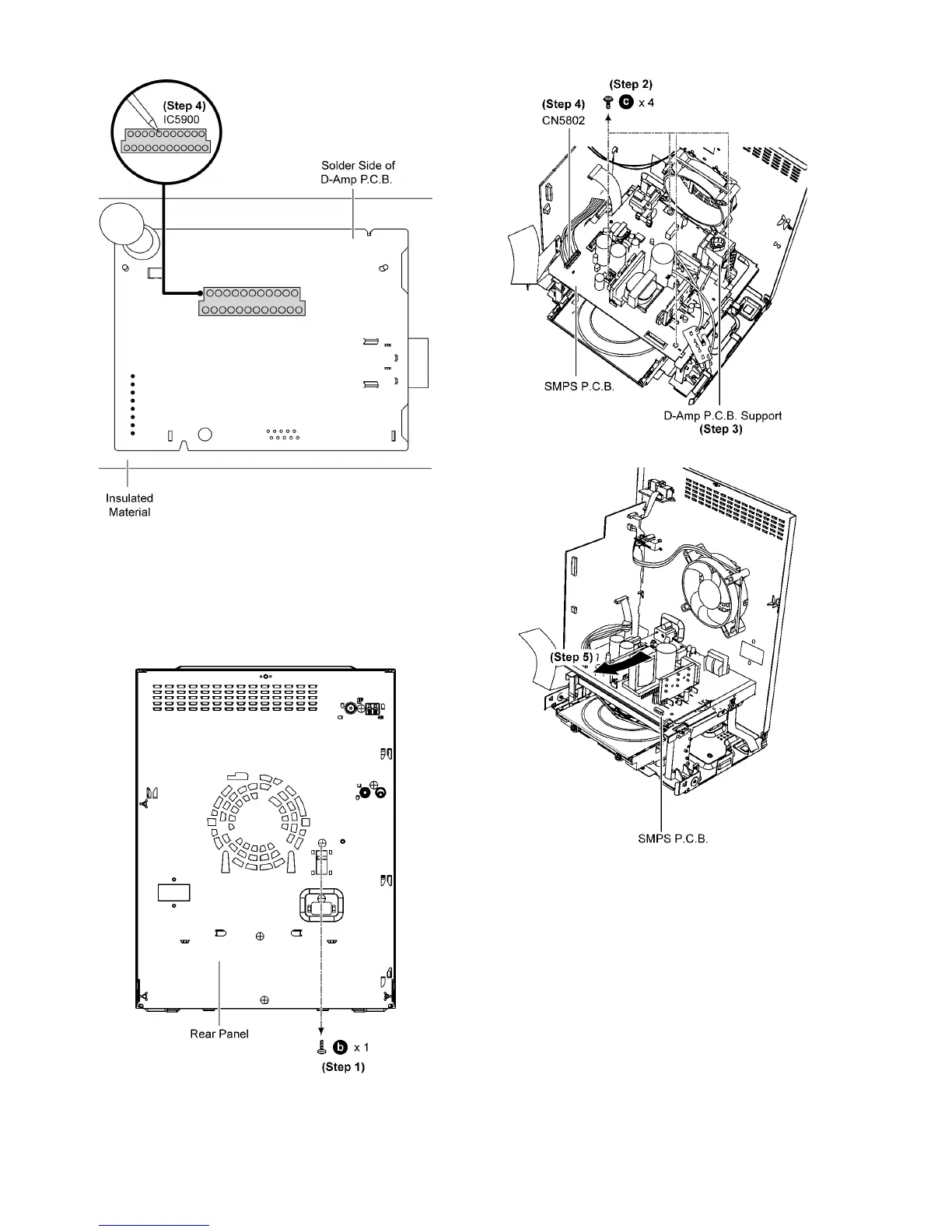

Step 1 Remove 1 screw.
Step 2 Remove 4 screws.
Step 3 Remove D-Amp P.C.B. Support.
Step 4 Detach 11P cable wire at the connector (CN5802) on
SMPS P.C.B..
Step 5 Lift up to remove SMPS P.C.B..
