46

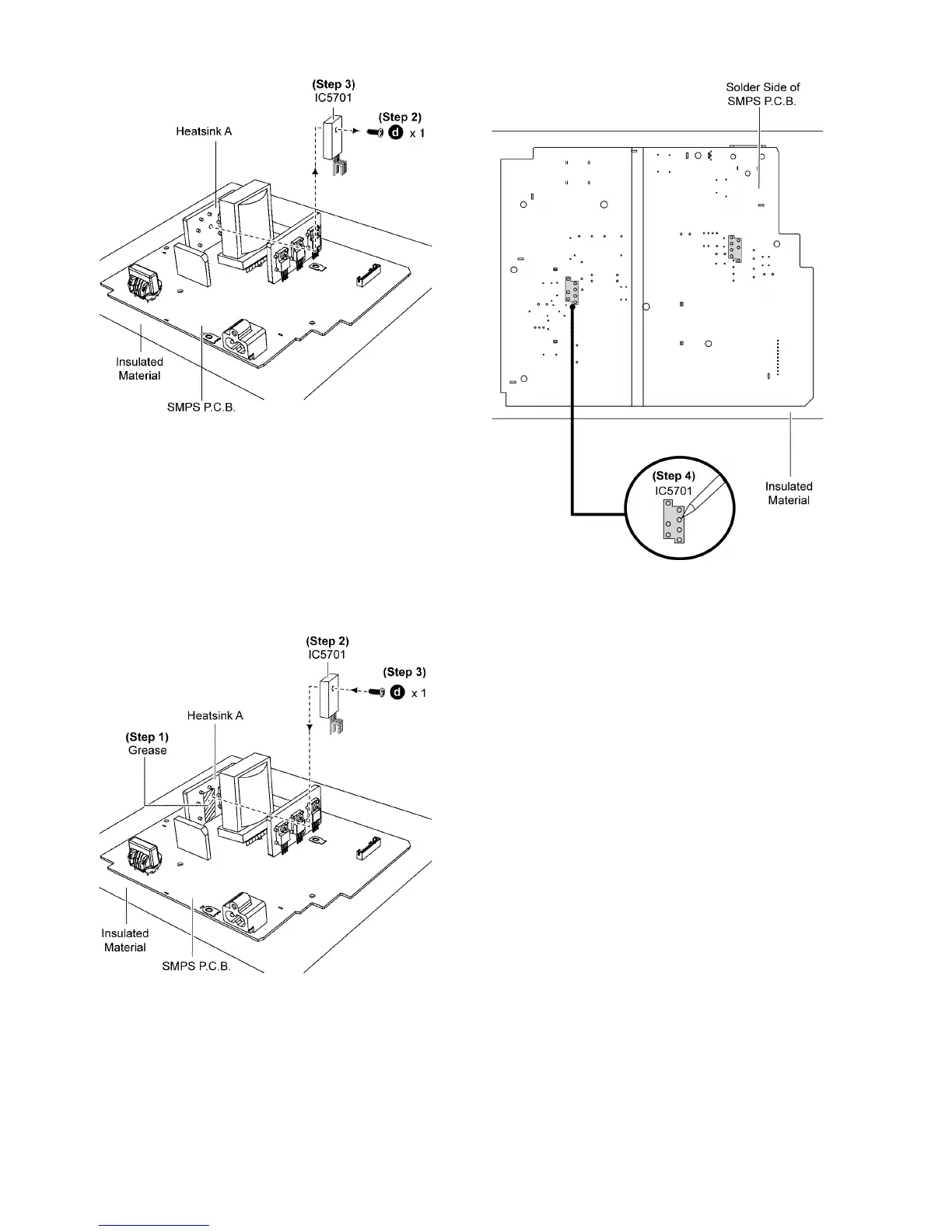

9.17.2. Assembly of Switching Regulator
IC (IC5701)
Step 1 Apply grease to the Heatsink A.
Step 2 Install the Switching Regulator IC (IC5701) to the SMPS
P. C.B . .
Caution: Ensure pins of the Switching Regulator IC
(IC5701) are properly seated and soldered on SMPS P.C.B..
Step 3 Screw the Switching Regulator IC (IC5701) to the Heat-
sink A.
Caution: Ensure the Switching Regulator IC (IC5701) is
tightly screwed to the Heatsink A.
Step 4 Solder pins of the Switching Regulator IC (IC5701) on
the solder side of SMPS P.C.B..
