Panasonic SA-BTT405P

14
15

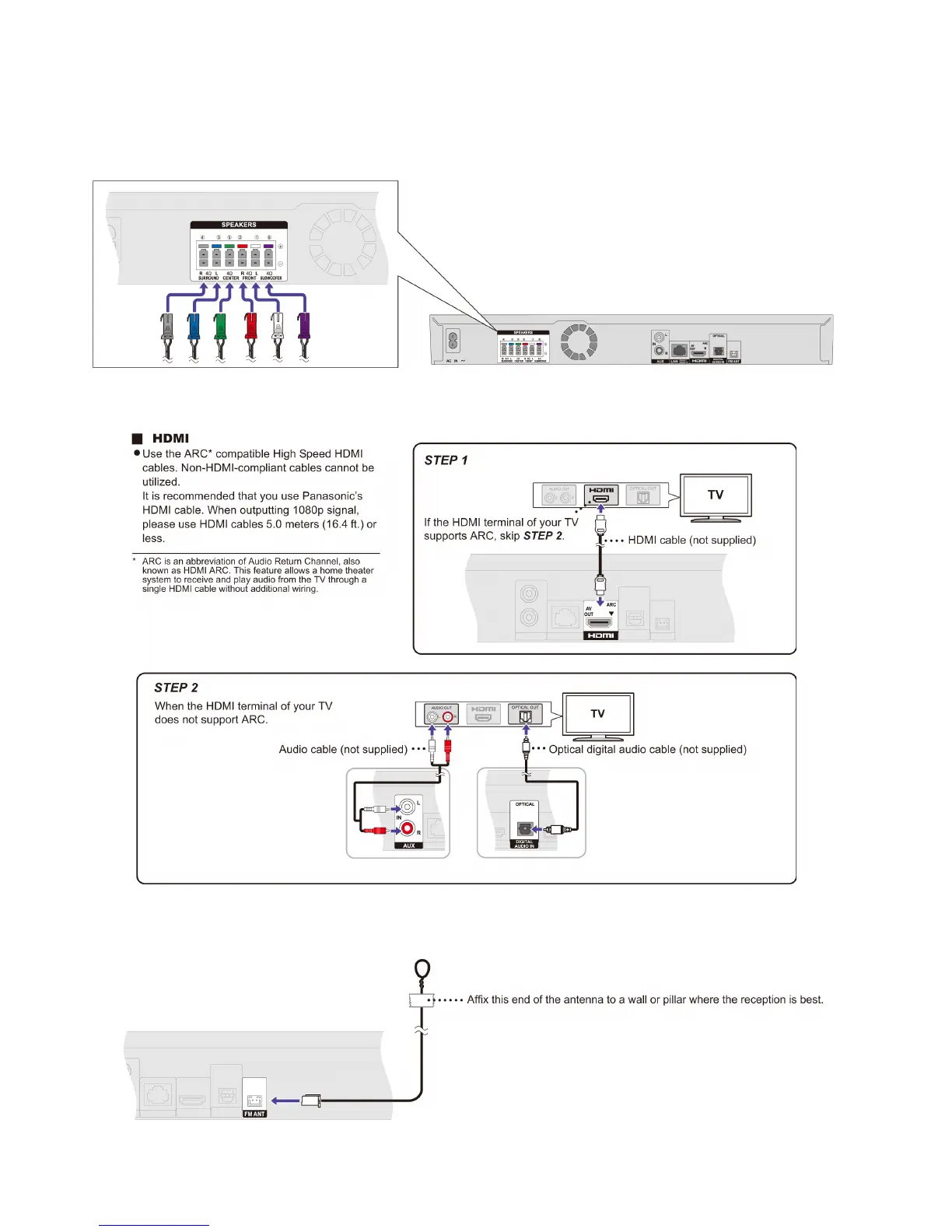

6 Installation Instructions
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC power supply cord until all other connections are completed.
6.1. Speaker Connection
Connect the speaker cables to the terminals of the same color.
6.2. Connection to a TV
6.3. FM Antenna Connection
