used.

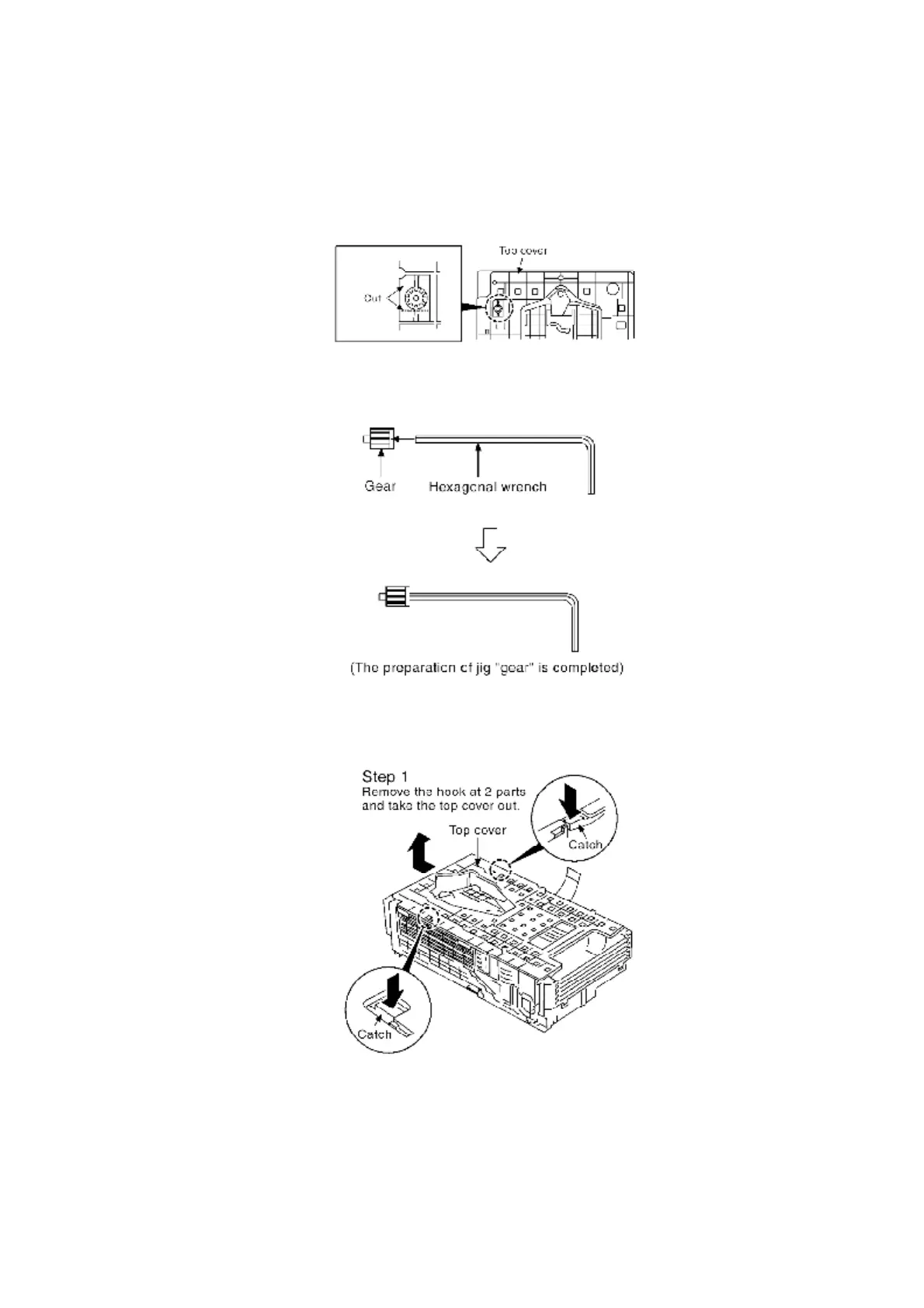

1. Remove the gear attached to the top cover of CD loading
mechanism.
2. Insert a hexagonal wrench of 2.5mm (opposite side diameter) into
the gear.
9.10. Replacement of disk tray
- Follow Steps 1 to 14 described in Item 9.1.
34
