Panasonic SA-PM17E - Measurement And Adjustments; Cassette Deck Section

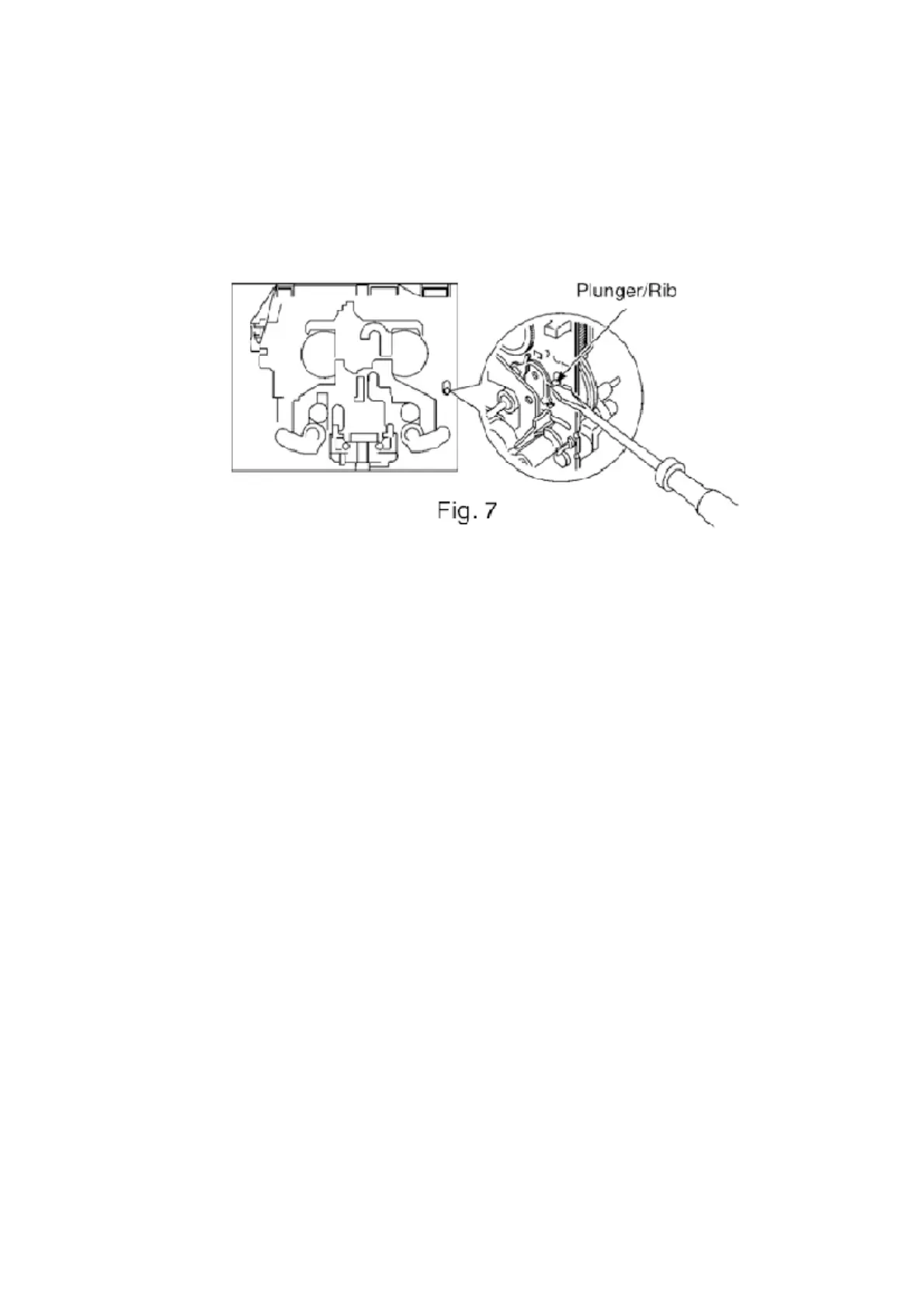

3. Lift up the mechanism unit’s plunger/rib with the tip of a negative
screwdriver, and operate the unit in the same timing as /
supplying the power. (Cf. Fig. 7) / (Note) Follow Step 4 in Item 1.1.
for procedure on operating each function.
11. Measurement And Adjustments
11.1. Tuner/CD Sections
No adjustment required.
11.2. Cassette Deck Section
11.2.1. Requirements
- Test tape (QZZCFM) (QZZCWAT)
- Normal blank cassette tape (QZZCRA)
- Frequency indicator
- Oscilloscope
- Electrical voltmeter
- Headphone jack output jig (Cf. Fig. 8)
11.2.2. Setting of Unit
- VOLUME: MAX
11.2.3. Preparations
1. Apply [9. Procedure for Checking Mechanism Control P.C.B., LCD
P.C.B., Headphone/P-MD P.C.B., and USB P.C.B.] under [9.
Disassembly and Main Component Replacement Procedures
before Operation Checks].
2. Remove 4 screws from the mechanism unit to disassemble. (Refer
to [9.3. Procedure for Replacing Pinch Roller (JUN) and Head
58
