9.13. Assembly of CD loading unit
- For assembly of CD loading unit, follow the reverse way of the
disassembly procedure. And see following procedure as there are
some points to be noticed in the assembly.
9.13.1. Notes on fixing of CD loading section
9.13.1.1. Notes on fixing of the select track

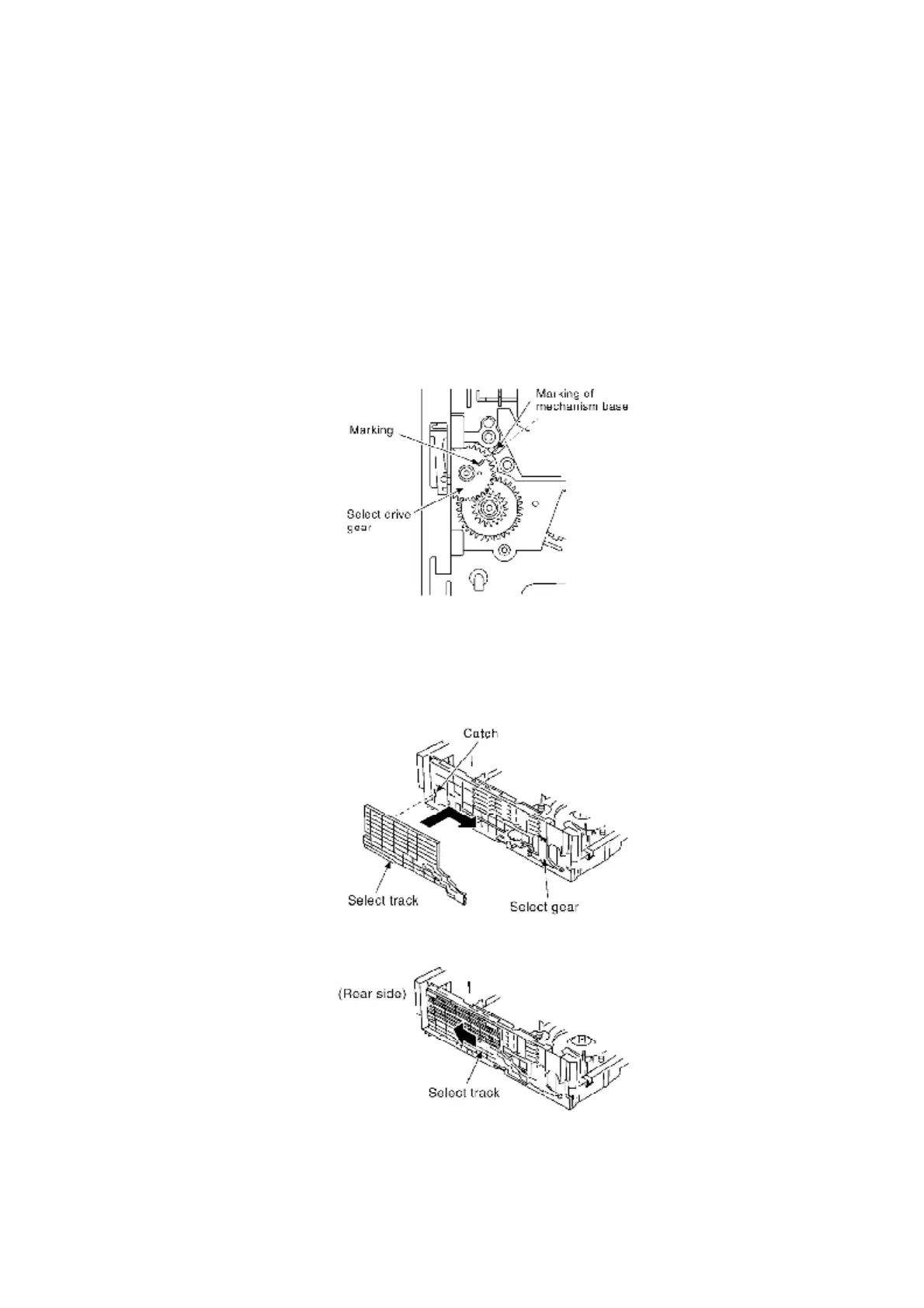

1. Set a marking of a select drive gear at a marking of a mechanism
base.
2. Fix a select gear
3. Slide a select track as shown by the arrow and fit it to a select
gear.
4. Draw up a select track at the edge of the rear side.
