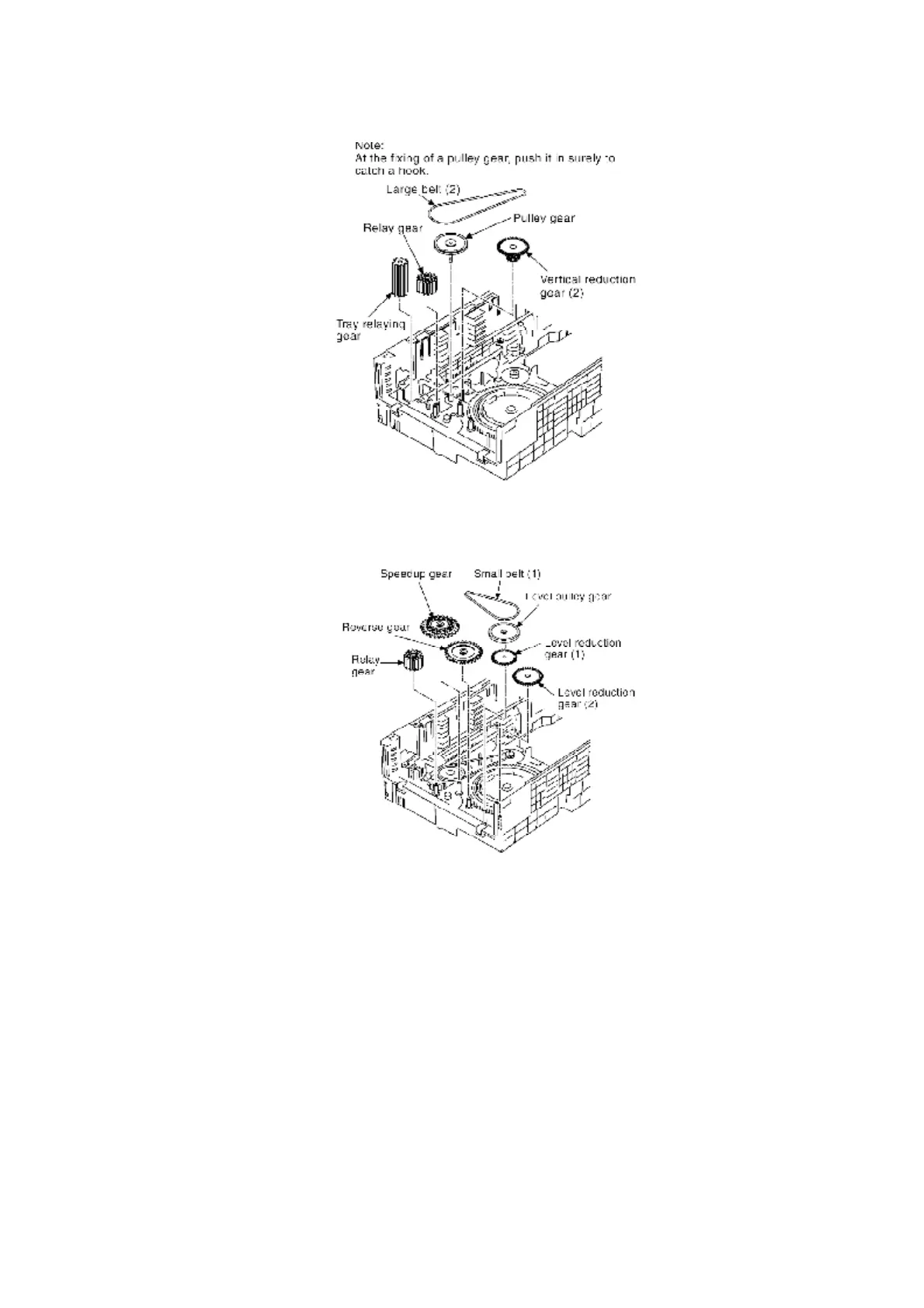

2. Fix a level reduction gear (1), a horizontal reduction gear (2), a
relay gear, a reverse gear, a speedup gear and a small belt (1).
3. Position the edge of a dividing lever (1) to the position shown in
figure 1.
4. The hole A of a pitch plate should be positioned at the hole of a
main gear. (Figure 2)
5. The hole B of a pitch plate should be positioned at the hole of a
speedup gear. (Figure 3)
6. Fasten with screws.
