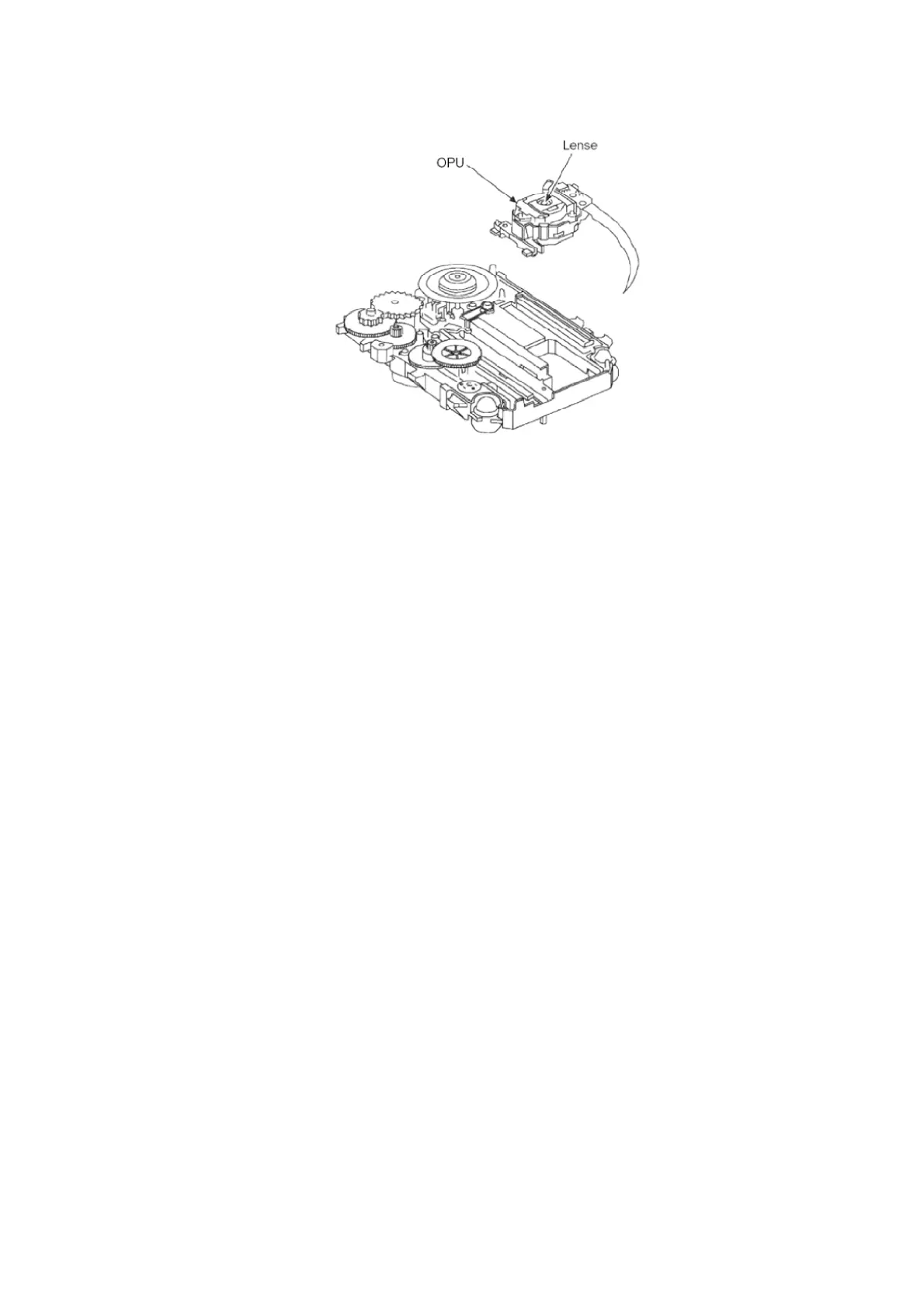

NOTE : Do not touch the Lense on the OPU.
8. Self-Diagnostic Display Function
This unit is equipped with a self-diagnostic function which, in the event of a malfunction,
automatically display a code indication the nature of the malfunction. Use this self-diagnostic
function when servicing the unit.
8.1. Entering self-diagnostic Mode
1. Turn the power on.
2. Switch to TAPE mode with no CD, cassette loaded.
3. Press and hold the STOP button for at least 2 seconds, and while
still pressing the STOP button, press the Forward Skip/Search
button for at least 2 seconds. The unit enters Self-Diagnostic Mode
and display “T”. Then an error code (e.g. H01) is displayed, if any.
In the case of no error, “T” is displayed on FL.
4. If more than 1 error exists, the display will sequentially show the
respective error codes each time the STOP button is pressed.
8.2. Cassette Mechanism Test (For error code H01, H02, H03, F01,
F02)
1. Load a cassette tape with the erasure prevention tab, remove from
left side only and close the cassette holder.
2. Press "Forward Skip/Search" (Tape will be stop after 2 seconds).
3. Load a cassette tape with the erasure prevention tab, remove from
right side only and close the cassette holder.
4. Press "Reverse Skip/Search" (Tape will be stop after 2 seconds).
18
