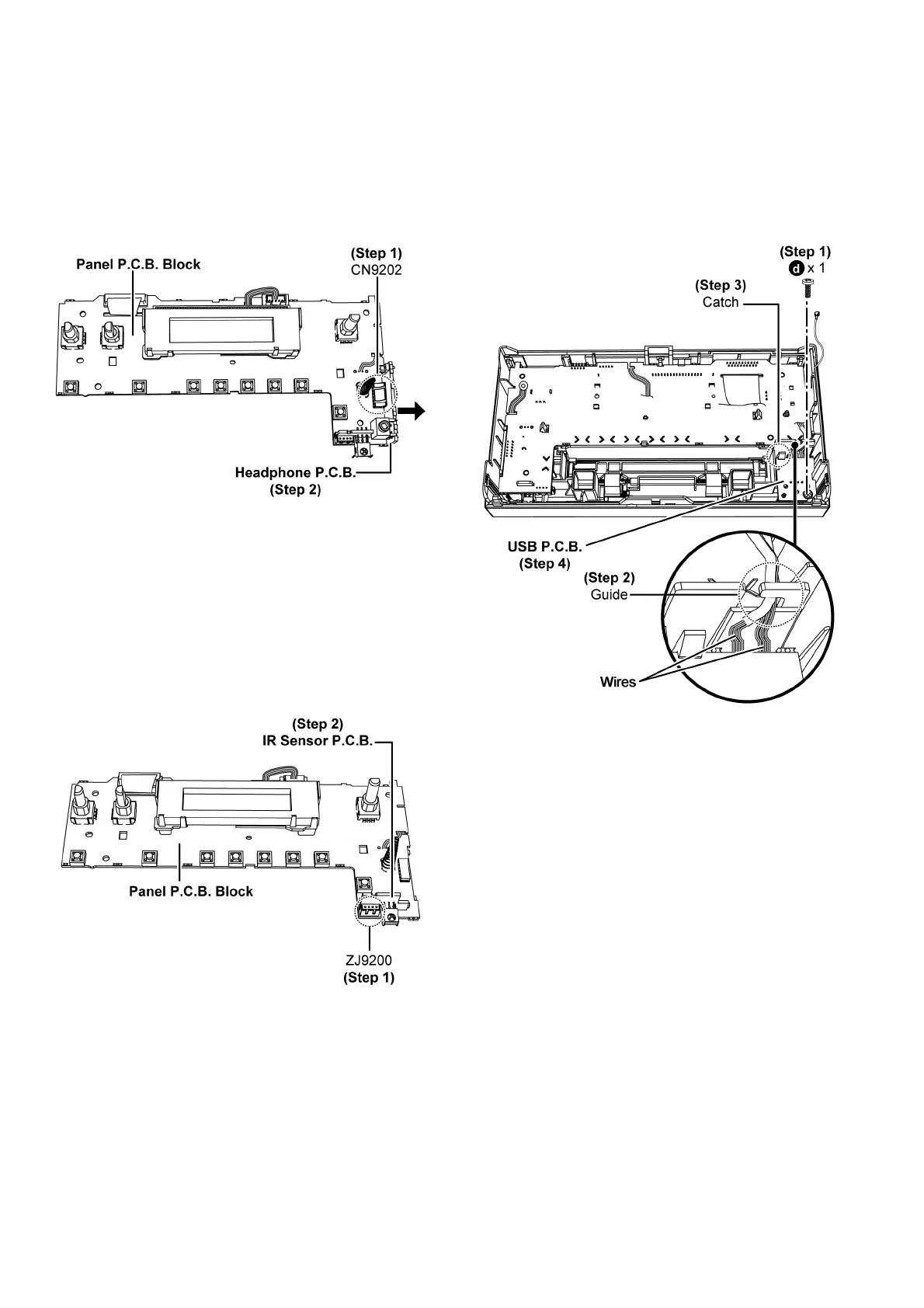

8.7.1. Disassembly of Headphone P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of Panel Block”
Step 1 : Detach Headphone P.C.B. at connector (CN9202)
from Panel P.C.B. Block.
Step 2 : Remove Headphone P.C.B. as shown.
8.7.2. Disassembly of IR Sensor P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
• Refer to “Disassembly of Panel Block”
• Refer to “Disassembly of Headphone P.C.B.”
Step 1 : Detach IR Sensor P.C.B. at connector (ZJ9200) from
Panel P.C.B. Block.
Step 2 : Remove IR Sensor P.C.B..
8.8. Disassembly of USB P.C.B.
• Refer to “Disassembly of Top Cabinet”
• Refer to “Disassembly of Front Panel Unit”
Step 1 : Remove screw.
Step 2 : Release wires from the guide.
Step 3 : Release catch.
Step 4 : Remove USB P.C.B..
