(1) DVD [DVD-Video, DVD-Audio]
(2) DVD-RAM [DVD-VR, MP3 (*2, 5), JPEG (*4, 5)]
(3) DVD-R [DVD-VR, DVD-Video, MP3 (*2, 5), JPEG (*4, 5)]
(4) DVD-R DL [DVD-VR (*6), DVD-Video]
(5) DVD-RW [DVD-VR, DVD-Video, MP3 (*2, 5), JPEG (*4, 5)]
(6) +R/+RW (Video)
(7) +R DL (Video)
(8) CD, CD-R/RW [CD-DA, Video CD, SVCD (*1), MP3 (*2, 5),
WMA (*3, 5), JPEG (*4, 5), HighMAT Level 2 (Audio and
Image)]
*1 Conforming to IEC62107
*2 MPEG-1 Layer 3, MPEG-2 Layer 3
*3 Windows Media Audio Ver.9.0 L3
ONot compatible with Multiple Bit Rate (MBR)
*4 Exif Ver 2.1 JPEG Baseline files
OPicture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:2:2 or 4:2:0). Extremely long and
slender pictures may not be displayed.
*5 The total combined maximum number of recognizable audio
and picture contents and groups: 4000 audio and picture
contents and 400 groups.
*6 Discs recorded on DVD recorders or DVD cameras using
Version 1.2 of the Video Recording Format (a unified video
recording standard).
Pick Up:
Wavelength:
O
OO
OCD: 785 nm
O
OO
ODVD: 662 nm
Laser power:
O
OO
OCD / DVD: CLASS I / CLASS II
O
OO
OVIDEO SECTION
Video System: NTSC
Video Output:
O
OO
OOutput level: 1 Vp-p (75 Ω)
O
OO
OOutput Connector: Pin jack (1 system)
Component Video Output (480p/480i):
O
OO
OY output level: 1 Vp-p (75 Ω)
O
OO
OP
B
output level: 0.7 Vp-p (75 Ω)
O
OO
OP
R
output level: 0.7 Vp-p (75 Ω)
O
OO
OOutput Connector: Pin jack (Y: green, P
B
: blue,
P
R
: red) (1 system)
HDMI AV Output: HDMI 19 pin type A connector
This unit supports “HDAVI Control 2” function.
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Solder:
This model uses lead free solder (PbF).
Mechanism:
This model uses DL2S (Single tray) mechanism.
Refer to the respective original service manuals for *1, *2.
2

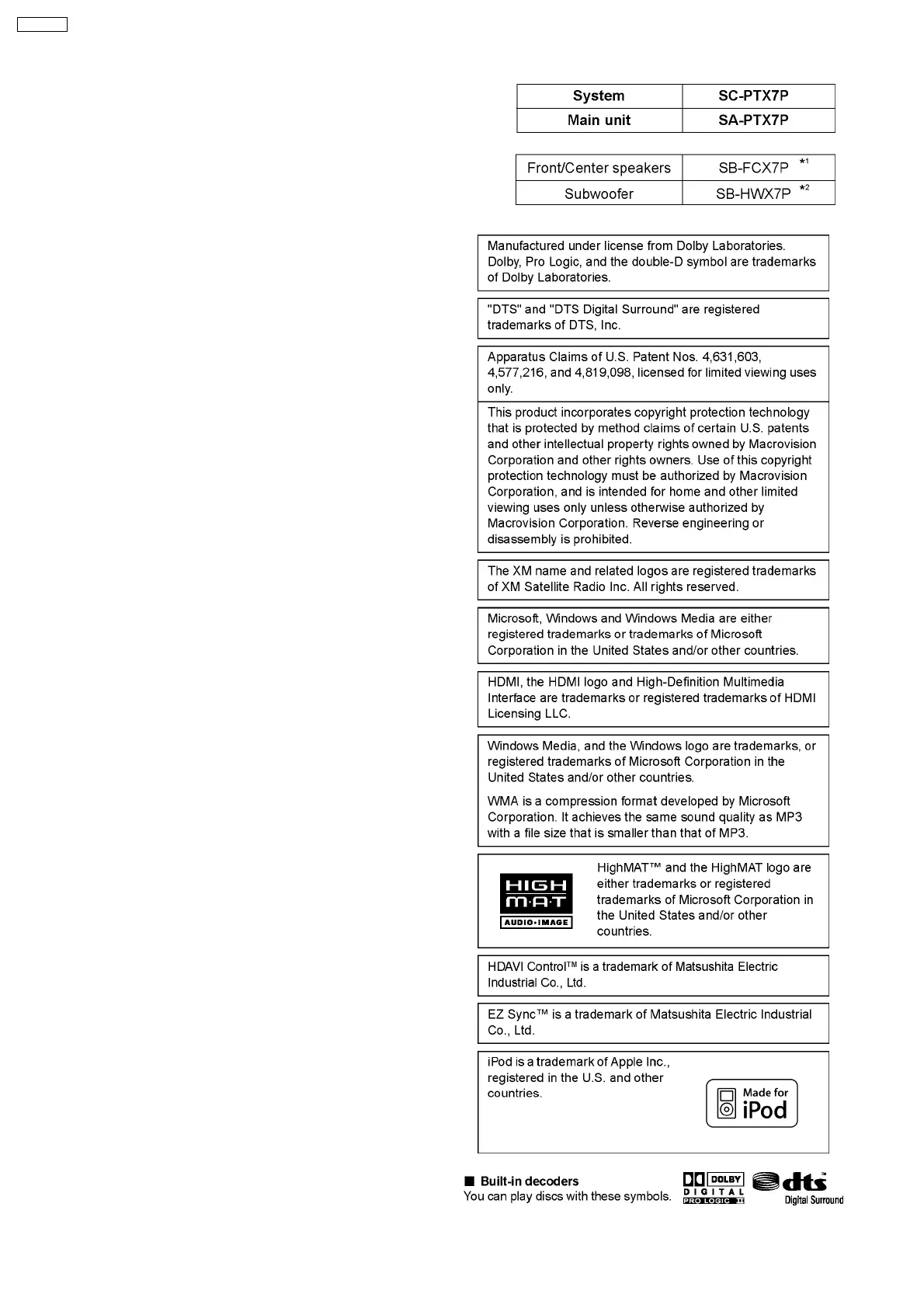

SA-PTX7P
