2.5. Disassembly of Terminal jack
Follow (step 1) to (step 5) in item 2.2.

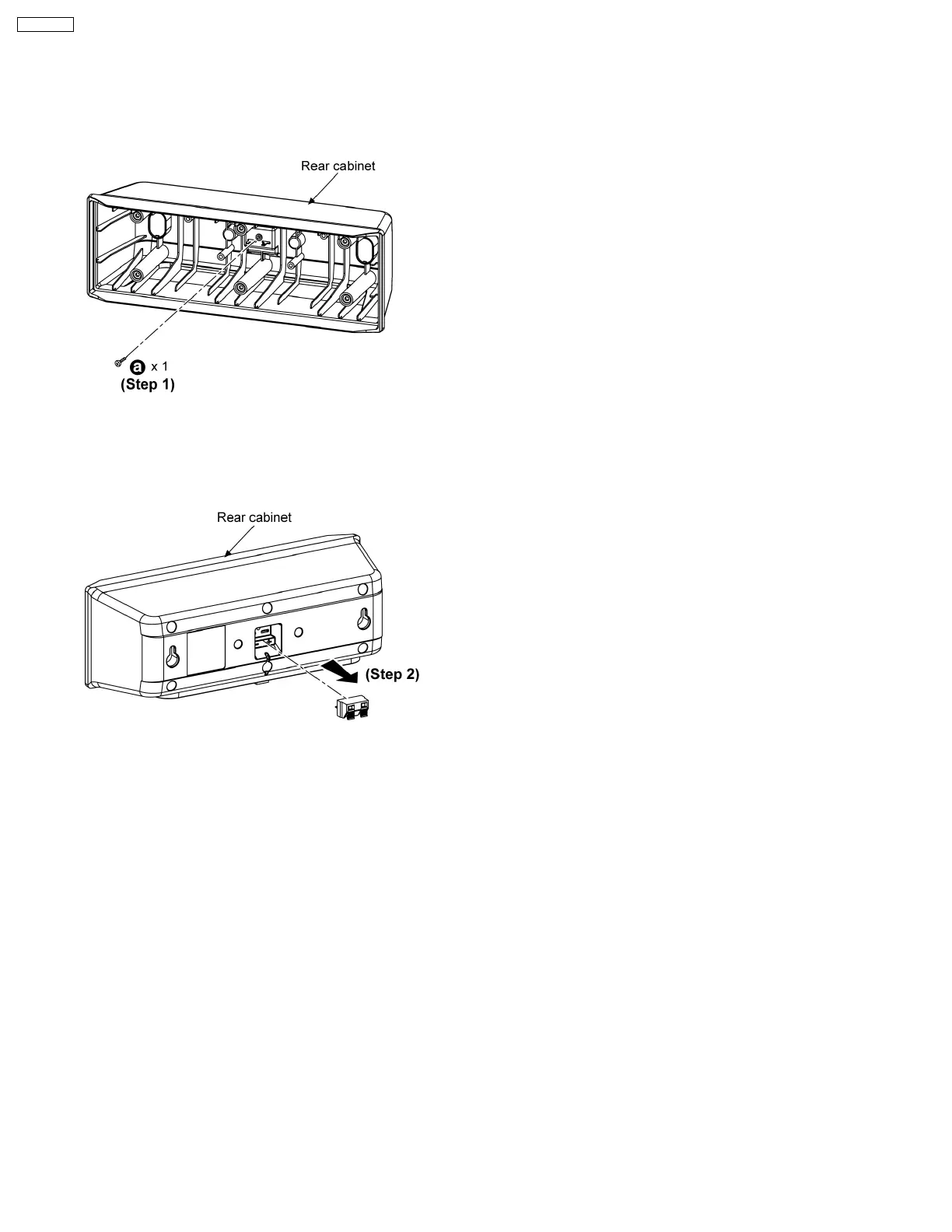

Step 1: Remove 1 screw from the terminal jack.
Step 2: Remove terminal jack as arrow shown.
6
SB-HC950P
