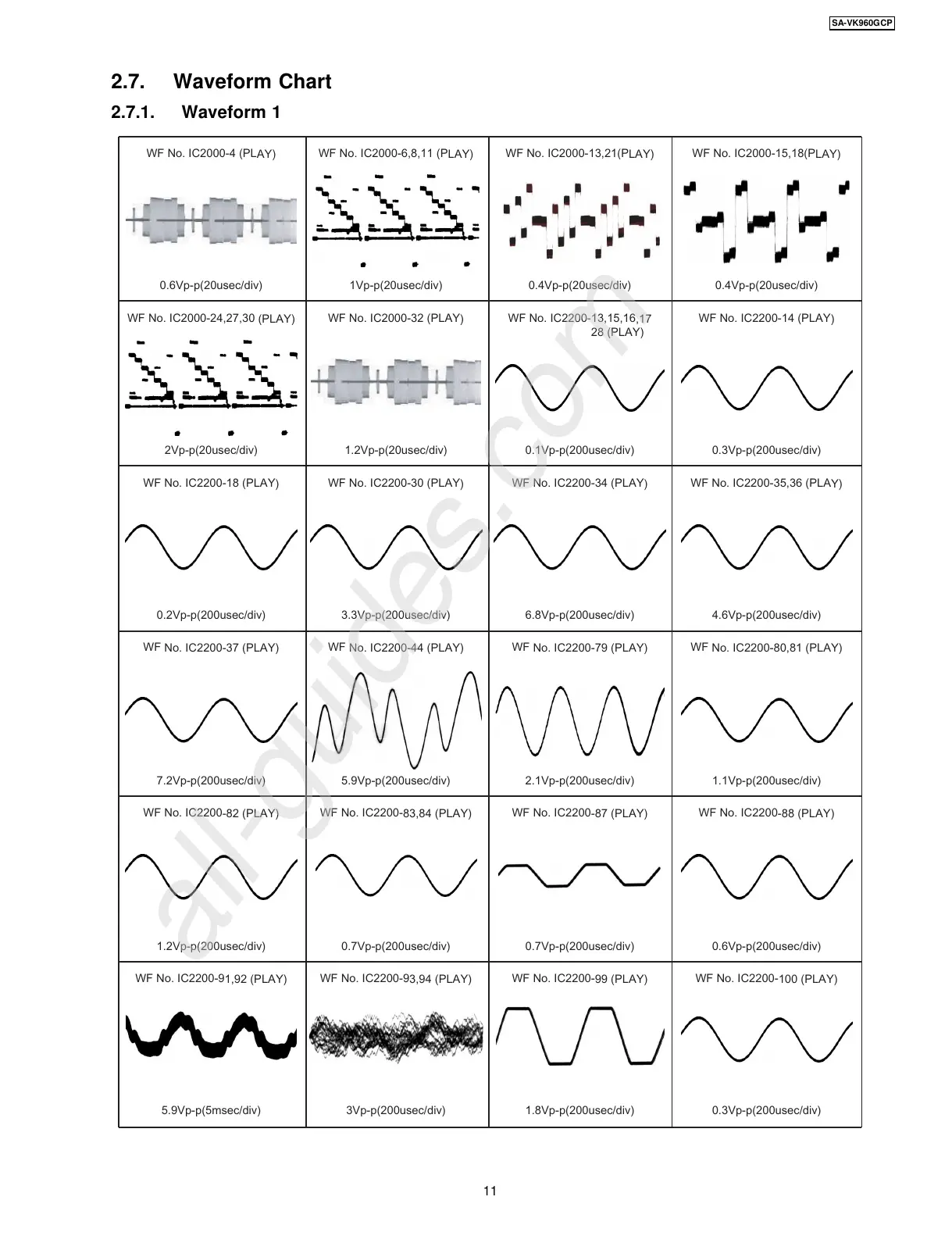

2.7. Waveform Chart
2.7.1. Waveform 1
WF No. IC2000-32 (PLAY)
1.2Vp-p(20usec/div)
WF No. IC2200-13,15,16,17
28 (PLAY)
0.1Vp-p(200usec/div)
WF No. IC2200-14 (PLAY)
0.3Vp-p(200usec/div)
WF No. IC2200-30 (PLAY)
3.3Vp-p(200usec/div)
WF No. IC2200-34 (PLAY)
6.8Vp-p(200usec/div)
WF No. IC2200-35,36 (PLAY)
4.6Vp-p(200usec/div)
WF No. IC2200-18 (PLAY)
0.2Vp-p(200usec/div)
WF No. IC2200-37 (PLAY)
7.2Vp-p(200usec/div)
WF No. IC2200-44 (PLAY)
5.9Vp-p(200usec/div)
WF No. IC2200-79 (PLAY)
2.1Vp-p(200usec/div)
WF No. IC2000-4 (PLAY)
0.6Vp-p(20usec/div)
WF No. IC2000-6,8,11 (PLAY)
1Vp-p(20usec/div)
WF No. IC2000-13,21(PLAY)
0.4Vp-p(20usec/div)
WF No. IC2000-15,18(PLAY)
0.4Vp-p(20usec/div)
WF No. IC2000-24,27,30 (PLAY)
2Vp-p(20usec/div)
WF No. IC2200-80,81 (PLAY)
1.1Vp-p(200usec/div)
WF No. IC2200-82 (PLAY)
1.2Vp-p(200usec/div)
WF No. IC2200-83,84 (PLAY)
0.7Vp-p(200usec/div)
WF No. IC2200-87 (PLAY)
0.7Vp-p(200usec/div)
WF No. IC2200-88 (PLAY)
0.6Vp-p(200usec/div)
WF No. IC2200-91,92 (PLAY)
5.9Vp-p(5msec/div)
WF No. IC2200-93,94 (PLAY)
3Vp-p(200usec/div)
WF No. IC2200-99 (PLAY)
1.8Vp-p(200usec/div)
WF No. IC2200-100 (PLAY)
0.3Vp-p(200usec/div)
