Panasonic SB-PF960 - Component Parts List

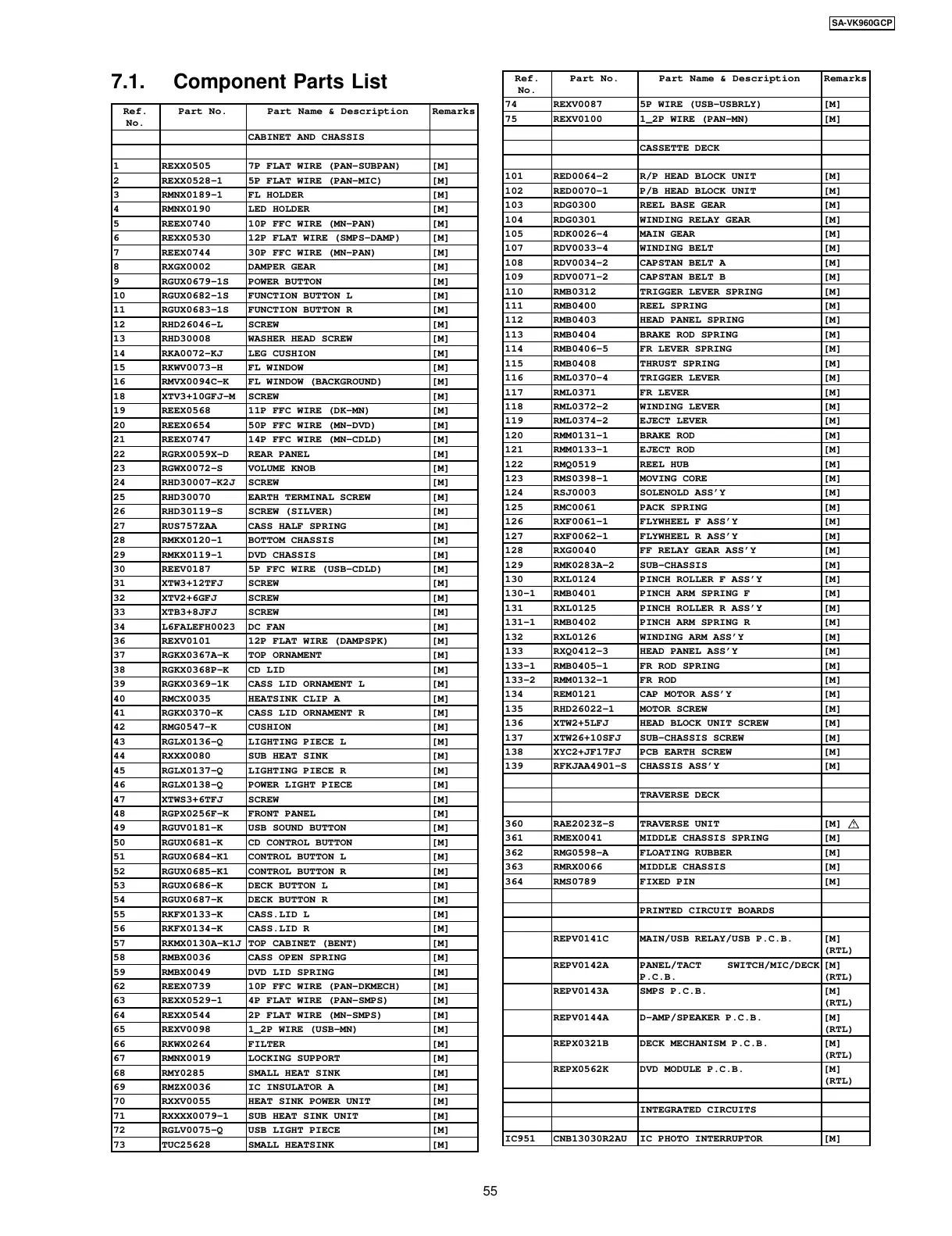

7.1. Component Parts List
Ref.
No.
Part No. Part Name & Description Remarks
CABINET AND CHASSIS
1 REXX0505 7P FLAT WIRE (PAN-SUBPAN) [M]
2 REXX0528-1 5P FLAT WIRE (PAN-MIC) [M]
3 RMNX0189-1 FL HOLDER [M]
4 RMNX0190 LED HOLDER [M]
5 REEX0740 10P FFC WIRE (MN-PAN) [M]
6 REXX0530 12P FLAT WIRE (SMPS-DAMP) [M]
7 REEX0744 30P FFC WIRE (MN-PAN) [M]
8 RXGX0002 DAMPER GEAR [M]
9 RGUX0679-1S POWER BUTTON [M]
10 RGUX0682-1S FUNCTION BUTTON L [M]
11 RGUX0683-1S FUNCTION BUTTON R [M]
12 RHD26046-L SCREW [M]
13 RHD30008 WASHER HEAD SCREW [M]
14 RKA0072-KJ LEG CUSHION [M]
15 RKWV0073-H FL WINDOW [M]
16 RMVX0094C-K FL WINDOW (BACKGROUND) [M]
18 XTV3+10GFJ-M SCREW [M]
19 REEX0568 11P FFC WIRE (DK-MN) [M]
20 REEX0654 50P FFC WIRE (MN-DVD) [M]
21 REEX0747 14P FFC WIRE (MN-CDLD) [M]
22 RGRX0059X-D REAR PANEL [M]
23 RGWX0072-S VOLUME KNOB [M]
24 RHD30007-K2J SCREW [M]
25 RHD30070 EARTH TERMINAL SCREW [M]
26 RHD30119-S SCREW (SILVER) [M]
27 RUS757ZAA CASS HALF SPRING [M]
28 RMKX0120-1 BOTTOM CHASSIS [M]
29 RMKX0119-1 DVD CHASSIS [M]
30 REEV0187 5P FFC WIRE (USB-CDLD) [M]
31 XTW3+12TFJ SCREW [M]
32 XTV2+6GFJ SCREW [M]
33 XTB3+8JFJ SCREW [M]
34 L6FALEFH0023 DC FAN [M]
36 REXV0101 12P FLAT WIRE (DAMPSPK) [M]
37 RGKX0367A-K TOP ORNAMENT [M]
38 RGKX0368P-K CD LID [M]
39 RGKX0369-1K CASS LID ORNAMENT L [M]
40 RMCX0035 HEATSINK CLIP A [M]
41 RGKX0370-K CASS LID ORNAMENT R [M]
42 RMG0547-K CUSHION [M]
43 RGLX0136-Q LIGHTING PIECE L [M]
44 RXXX0080 SUB HEAT SINK [M]
45 RGLX0137-Q LIGHTING PIECE R [M]
46 RGLX0138-Q POWER LIGHT PIECE [M]
47 XTWS3+6TFJ SCREW [M]
48 RGPX0256F-K FRONT PANEL [M]
49 RGUV0181-K USB SOUND BUTTON [M]
50 RGUX0681-K CD CONTROL BUTTON [M]
51 RGUX0684-K1 CONTROL BUTTON L [M]
52 RGUX0685-K1 CONTROL BUTTON R [M]
53 RGUX0686-K DECK BUTTON L [M]
54 RGUX0687-K DECK BUTTON R [M]
55 RKFX0133-K CASS.LID L [M]
56 RKFX0134-K CASS.LID R [M]
57 RKMX0130A-K1J TOP CABINET (BENT) [M]
58 RMBX0036 CASS OPEN SPRING [M]
59 RMBX0049 DVD LID SPRING [M]
62 REEX0739 10P FFC WIRE (PAN-DKMECH) [M]
63 REXX0529-1 4P FLAT WIRE (PAN-SMPS) [M]
64 REXX0544 2P FLAT WIRE (MN-SMPS) [M]
65 REXV0098 1_2P WIRE (USB-MN) [M]
66 RKWX0264 FILTER [M]
67 RMNX0019 LOCKING SUPPORT [M]
68 RMY0285 SMALL HEAT SINK [M]
69 RMZX0036 IC INSULATOR A [M]
70 RXXV0055 HEAT SINK POWER UNIT [M]
71 RXXXX0079-1 SUB HEAT SINK UNIT [M]
72 RGLV0075-Q USB LIGHT PIECE [M]
73 TUC25628 SMALL HEATSINK [M]
Ref.
No.
Part No. Part Name & Description Remarks
74 REXV0087 5P WIRE (USB-USBRLY) [M]
75 REXV0100 1_2P WIRE (PAN-MN) [M]
CASSETTE DECK
101 RED0064-2 R/P HEAD BLOCK UNIT [M]
102 RED0070-1 P/B HEAD BLOCK UNIT [M]
103 RDG0300 REEL BASE GEAR [M]
104 RDG0301 WINDING RELAY GEAR [M]
105 RDK0026-4 MAIN GEAR [M]
107 RDV0033-4 WINDING BELT [M]
108 RDV0034-2 CAPSTAN BELT A [M]
109 RDV0071-2 CAPSTAN BELT B [M]
110 RMB0312 TRIGGER LEVER SPRING [M]
111 RMB0400 REEL SPRING [M]
112 RMB0403 HEAD PANEL SPRING [M]
113 RMB0404 BRAKE ROD SPRING [M]
114 RMB0406-5 FR LEVER SPRING [M]
115 RMB0408 THRUST SPRING [M]
116 RML0370-4 TRIGGER LEVER [M]
117 RML0371 FR LEVER [M]
118 RML0372-2 WINDING LEVER [M]
119 RML0374-2 EJECT LEVER [M]
120 RMM0131-1 BRAKE ROD [M]
121 RMM0133-1 EJECT ROD [M]
122 RMQ0519 REEL HUB [M]
123 RMS0398-1 MOVING CORE [M]
124 RSJ0003 SOLENOLD ASS’Y [M]
125 RMC0061 PACK SPRING [M]
126 RXF0061-1 FLYWHEEL F ASS’Y [M]
127 RXF0062-1 FLYWHEEL R ASS’Y [M]
128 RXG0040 FF RELAY GEAR ASS’Y [M]
129 RMK0283A-2 SUB-CHASSIS [M]
130 RXL0124 PINCH ROLLER F ASS’Y [M]
130-1 RMB0401 PINCH ARM SPRING F [M]
131 RXL0125 PINCH ROLLER R ASS’Y [M]
131-1 RMB0402 PINCH ARM SPRING R [M]
132 RXL0126 WINDING ARM ASS’Y [M]
133 RXQ0412-3 HEAD PANEL ASS’Y [M]
133-1 RMB0405-1 FR ROD SPRING [M]
133-2 RMM0132-1 FR ROD [M]
134 REM0121 CAP MOTOR ASS’Y [M]
135 RHD26022-1 MOTOR SCREW [M]
136 XTW2+5LFJ HEAD BLOCK UNIT SCREW [M]
137 XTW26+10SFJ SUB-CHASSIS SCREW [M]
138 XYC2+JF17FJ PCB EARTH SCREW [M]
139 RFKJAA4901-S CHASSIS ASS’Y [M]
TRAVERSE DECK
360 RAE2023Z-S TRAVERSE UNIT [M]
361 RMEX0041 MIDDLE CHASSIS SPRING [M]
362 RMG0598-A FLOATING RUBBER [M]
363 RMRX0066 MIDDLE CHASSIS [M]
364 RMS0789 FIXED PIN [M]
PRINTED CIRCUIT BOARDS
REPV0141C MAIN/USB RELAY/USB P.C.B. [M]
(RTL)
REPV0142A PANEL/TACT SWITCH/MIC/DECK
P.C.B.
[M]
(RTL)
REPV0143A SMPS P.C.B. [M]
(RTL)
REPV0144A D-AMP/SPEAKER P.C.B. [M]
(RTL)
REPX0321B DECK MECHANISM P.C.B. [M]
(RTL)
REPX0562K DVD MODULE P.C.B. [M]
(RTL)
INTEGRATED CIRCUITS
IC951 CNB13030R2AU IC PHOTO INTERRUPTOR [M]
55
SA-VK960GCP
