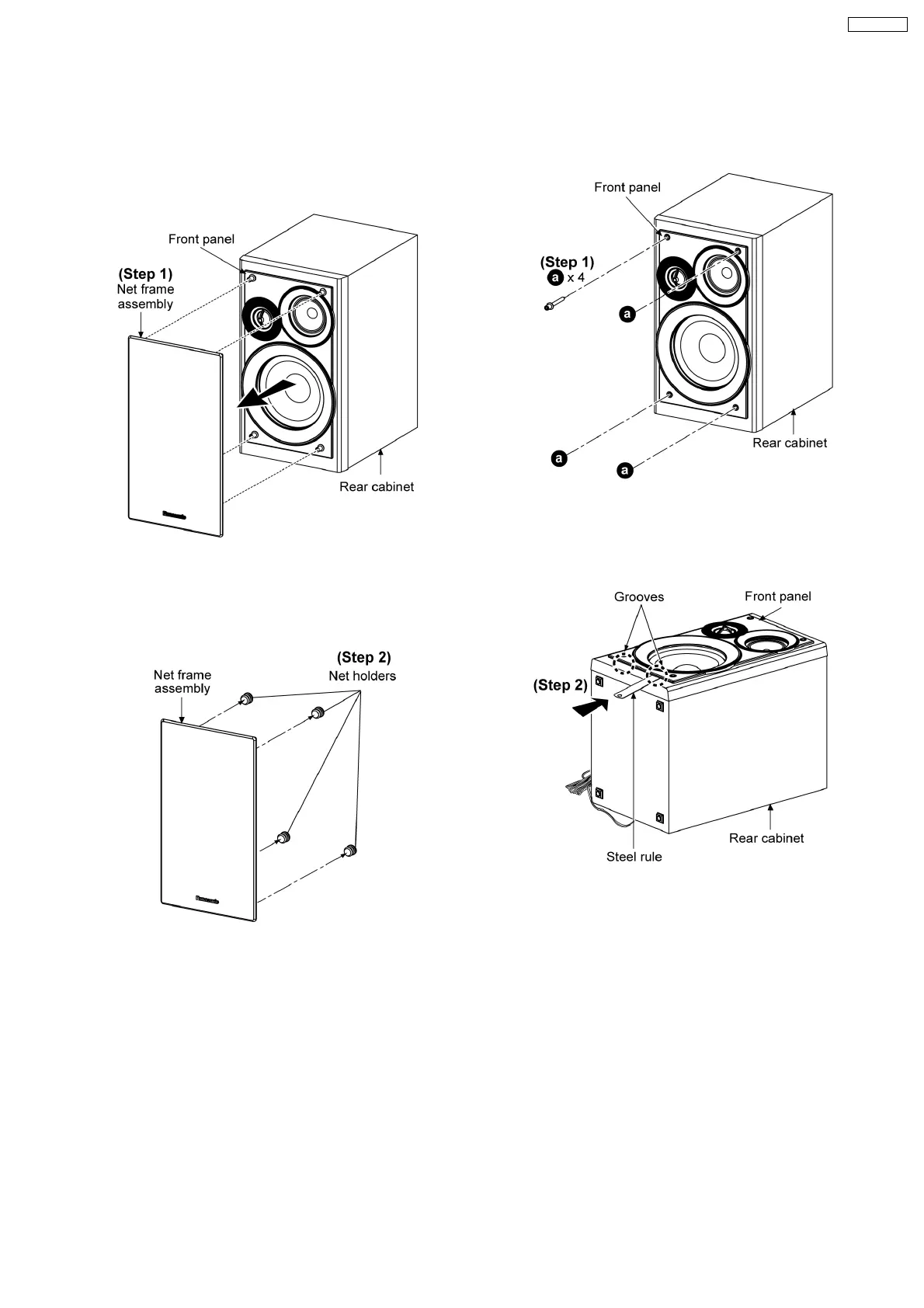

2.2. Disassembly of Net frame
assembly
Note: The disassembly process illustrates left speaker only. For
right speaker, the disassembly process is the same.
Step 1: Remove net frame assembly as arrow shown.
Step 2: Remove 4 net holders.
2.3. Disassembly of Front Panel
Follow (step 1) in item 2.2.
Step 1: Remove 4 screws.
Step 2: Insert a small steel rule into the grooves of the front
panel and lift up to make a gap allowance between the front
panel and rear cabinet as arrow shown.
5
SB-PM54GN
